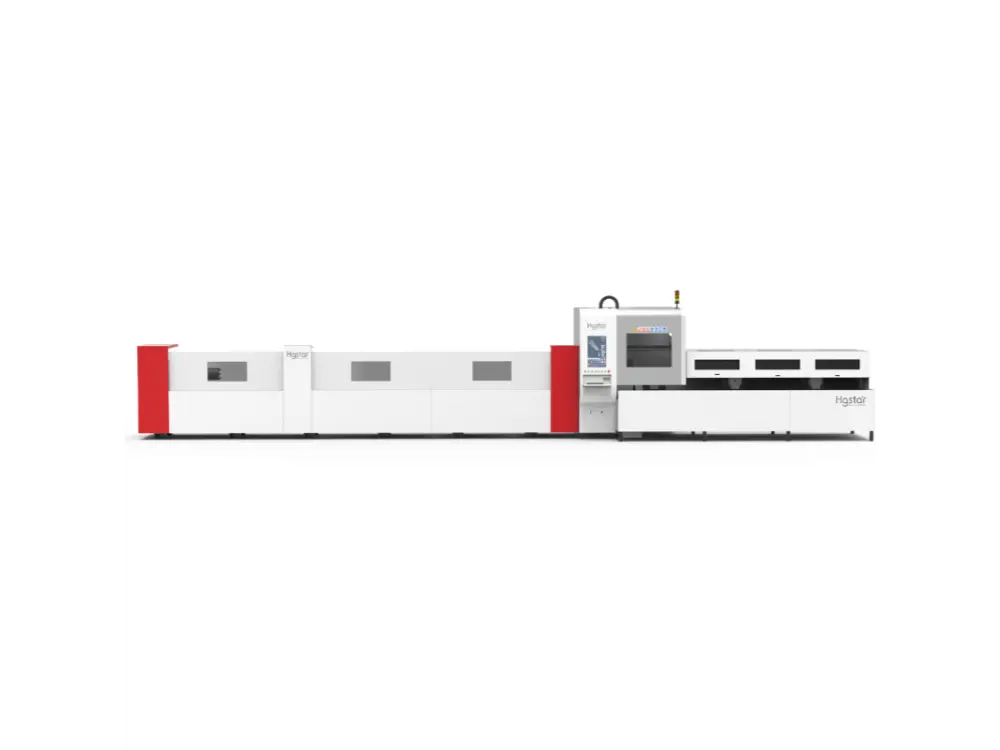

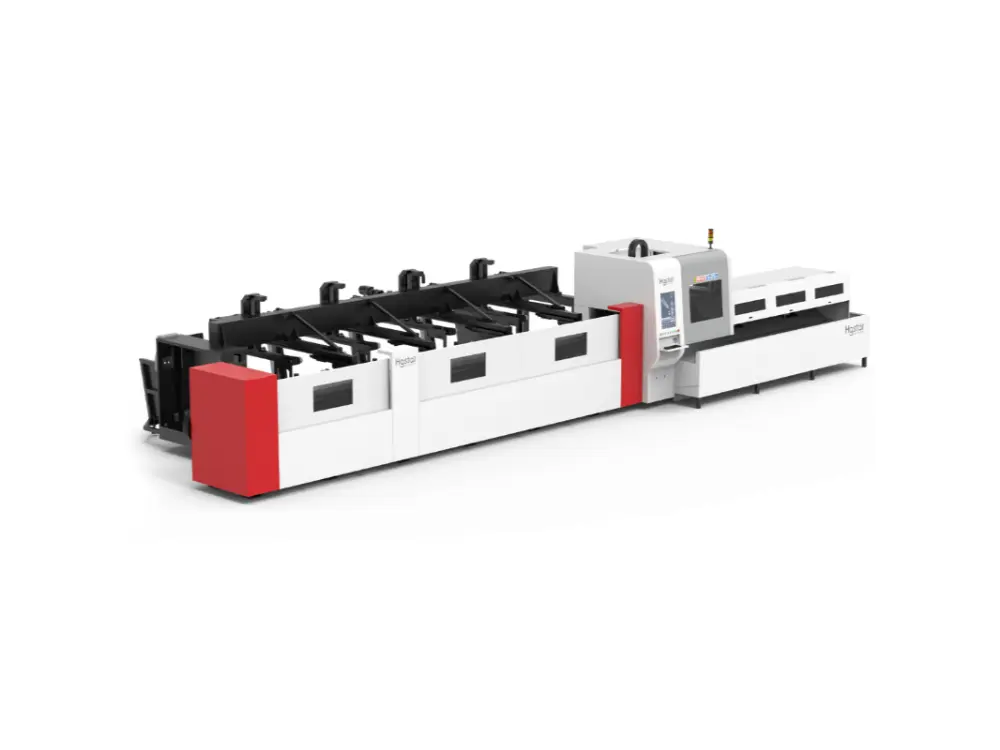

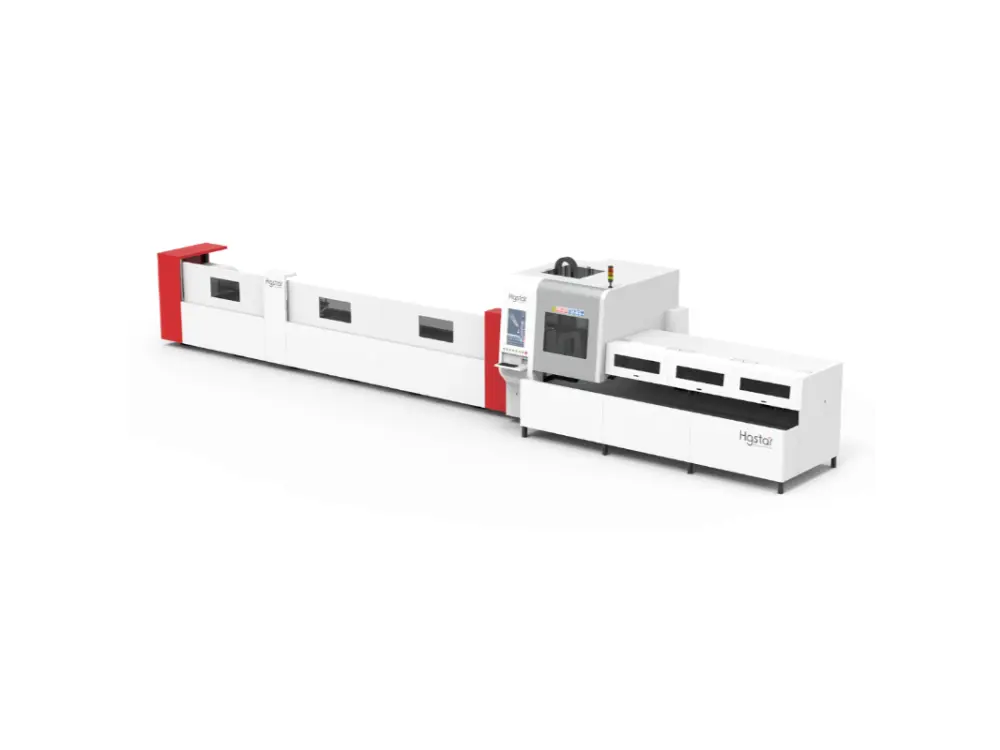

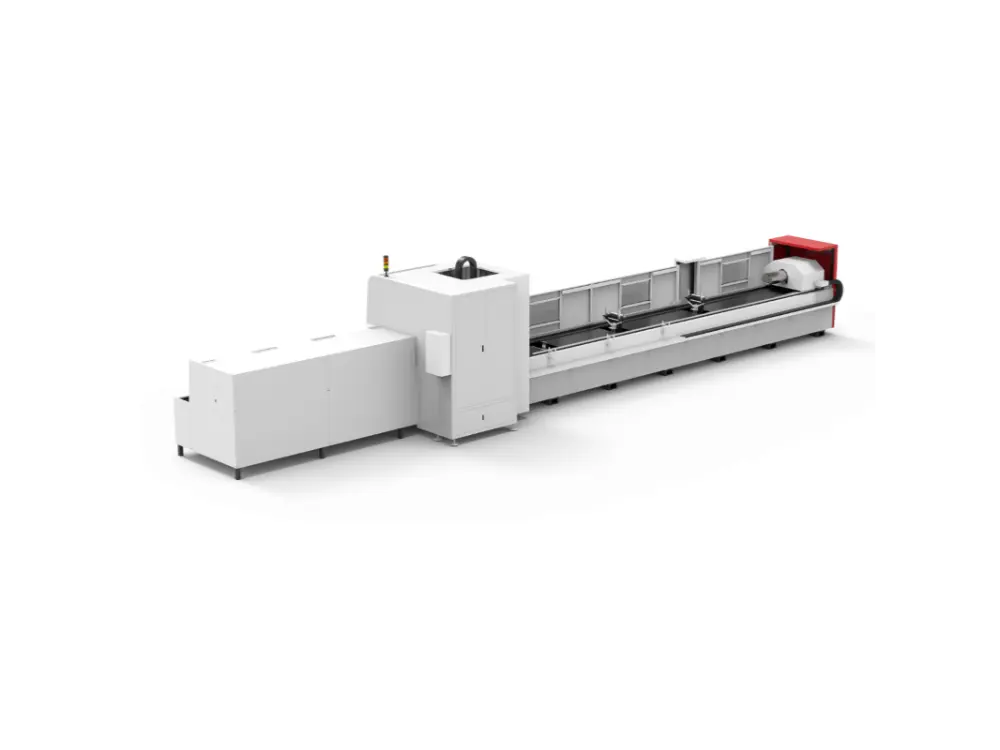

Smart Tflx Series Two Chuck Tube Laser Cutting Machine 2000W 3000W 6000W
SMART Tflx6535 two chuck tube laser cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.
FARLEY LASERLAB AUTO: Laser Tube Cutting Machine Smart Tflx Series
Smart Tflx Series Two Chuck Tube Laser Cutting Machine 2000W 3000W 6000W
SMART Tflx6535 two chuck tube laser cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. It has high precision, processing accuracy with higher photoelectric conversion efficiency, strong anti-high capability and stability of lasers.
Laser Tube Cutting Machine Smart Tflx Series
HGSTAR SMART Tflx6535 two-chuck tube laser cutter meets international export standards, ideal for metal tube processing. It features high precision, high photoelectric conversion efficiency, and stable, durable laser performance.
Features:
Meets international export standards
High processing precision
Strong laser resistance
Two-chuck design for metal tube processing
High photoelectric conversion efficiency
Stable laser operation
Laser Tube Cutting Machine – Technical Specifications
| MODEL | SMART TFLX653 |
|---|---|
| Industry Applications | Furniture Industry, Automotive Industry, Metal Processing Industry,Engineering Machinery Industry, Construction Industry, Aerospace Industry, Chemical and Power Industries |
| Laser Source | 2000W、3000W、6000W |
| Processing Tube Diameter | Round Tube：20-350 mm Square Tube：20-350mm |
| Tube Processing Length | 0-6500MM |
| Single Tube Cutting Length | ≤3500mm |
| Idle Running Speed | 100m/min |
| Acceleration | 0.8G |
| Chuck Rotation Speed | 150r/min |
| Chuck Load Capacity | 120 Chuck:120KG / 230 Chuck:300KG / 350 Chuck:800KG |
Durable, Accurate, Effective

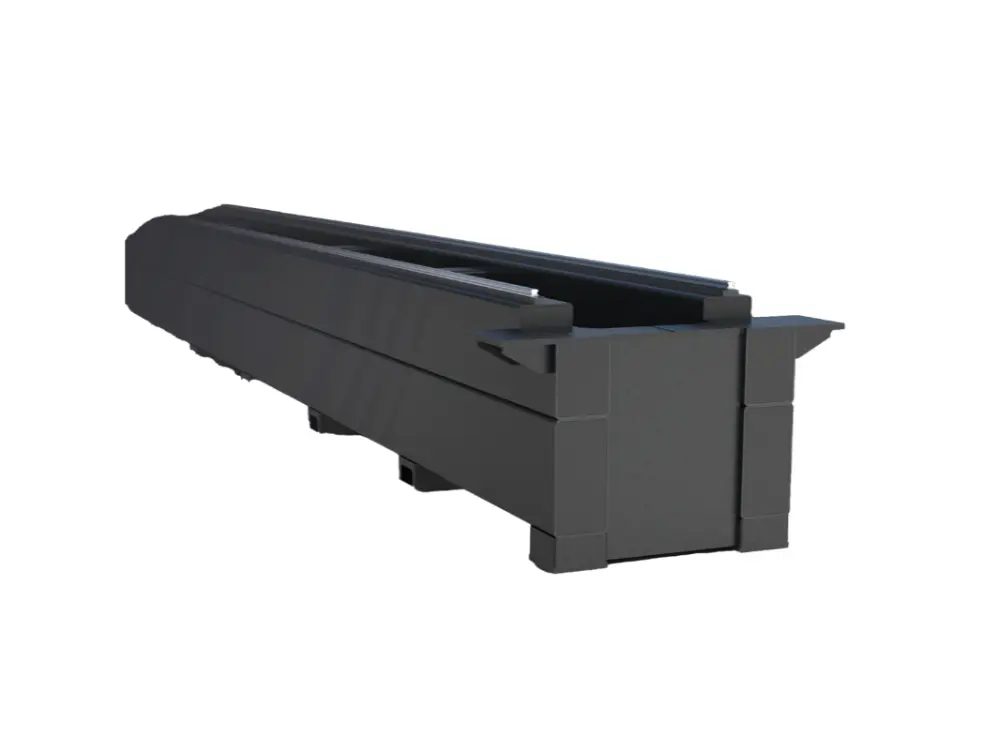

The welded construction guarantees remarkable stiffness and accuracy, allowing for long-term use without deformation.The inclusion of an automatic loading and unloading device significantly enhances the machine’s productivity.
Fast, Reliable, Stable

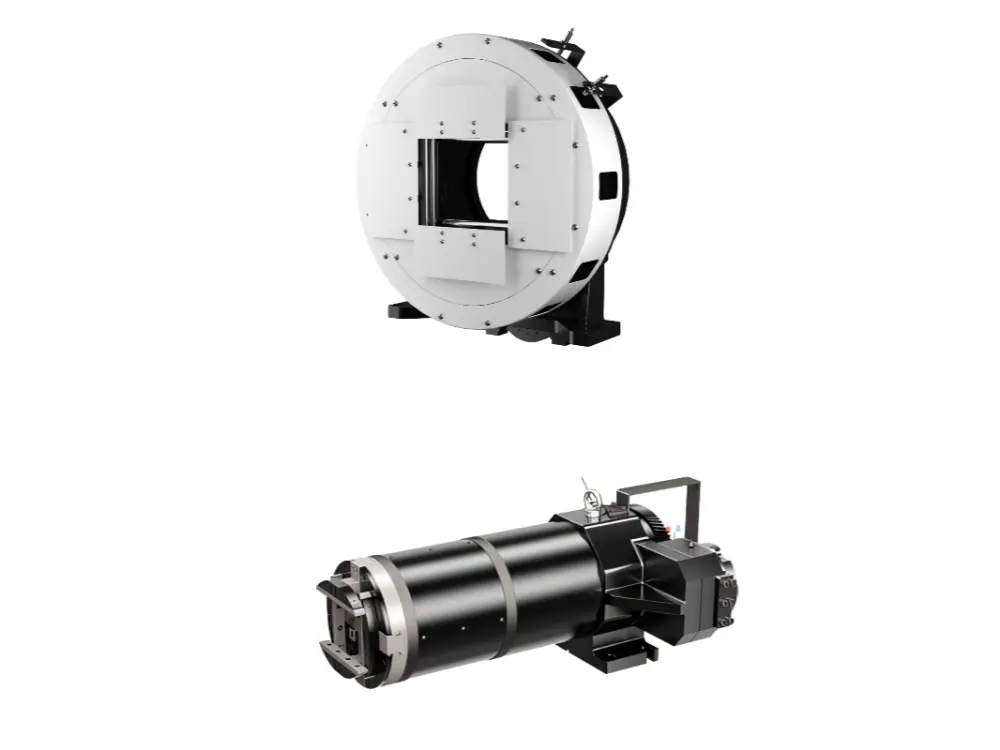

Pneumatic chuck
Double rows of rollers for effective correction of pipe bending with the ability of precise centering, fast automated processing.High support bearing stability with integral support base structure, highly rigid long cantilever structure, and optional clamping of various profiles.
Adaptable and Accurate

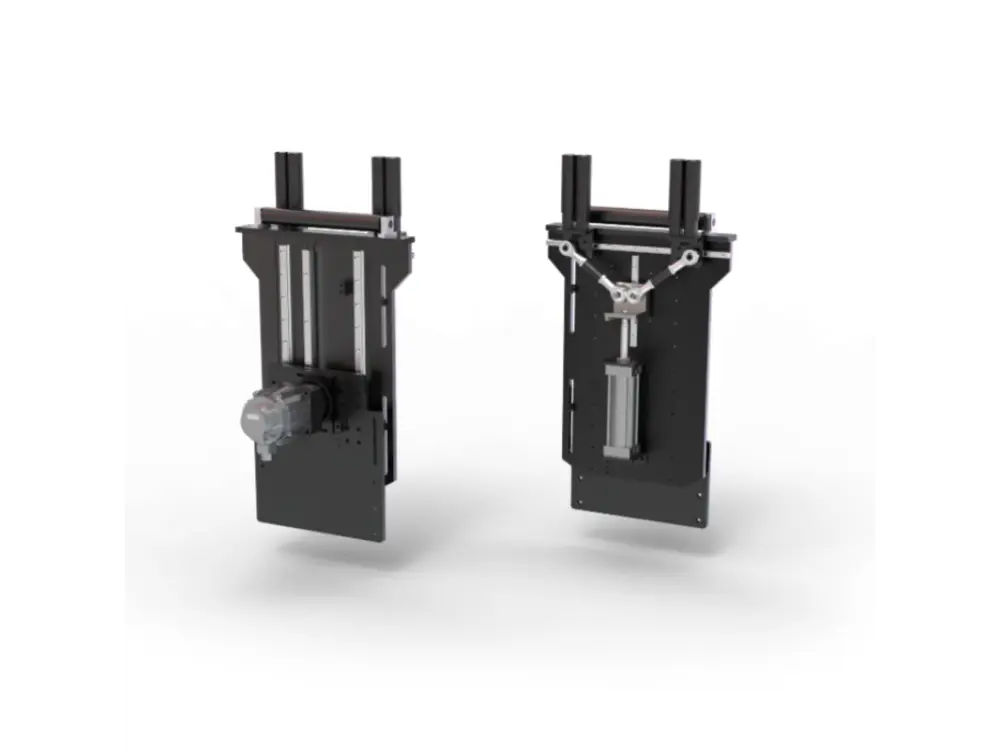

Bed follower centering bracket
Fully automatic servo-following control allows the great adaptability to pipe rotation radius change, and prevent the pipe from sagging.
The system chuck and clamp the pipe during the process, thus improving the processing accuracy.
Intelligent and Professional

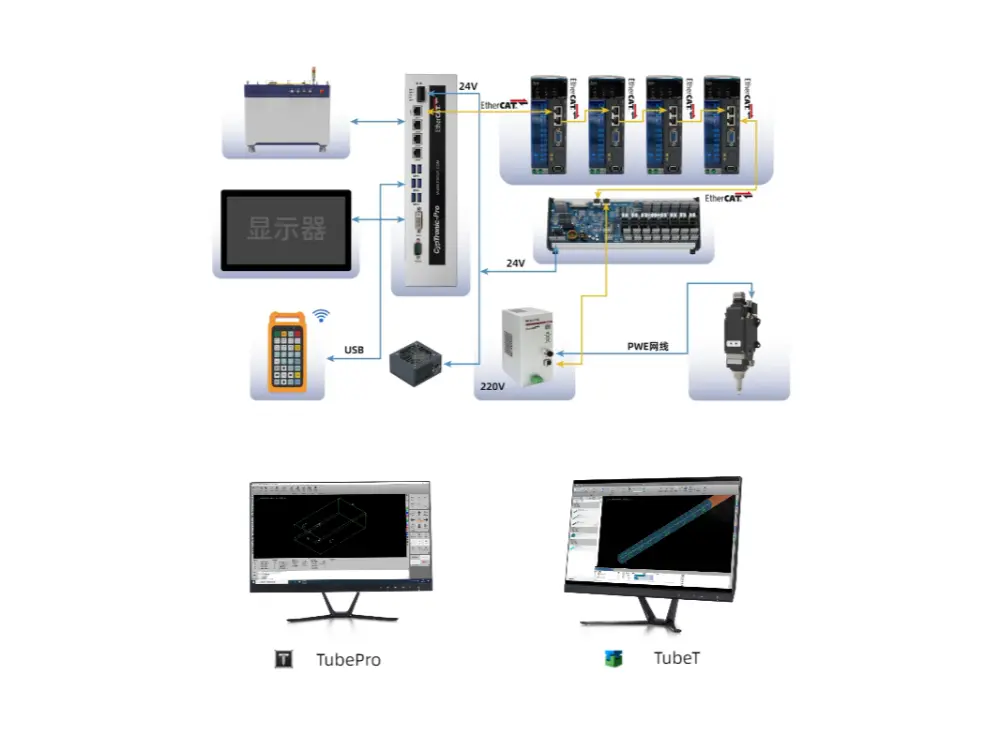

CNC Control System FSCUT5000
Rich application assistance functions with professional operating software (TubePro) and nesting software (TubeT).
Higher quality and Efficient

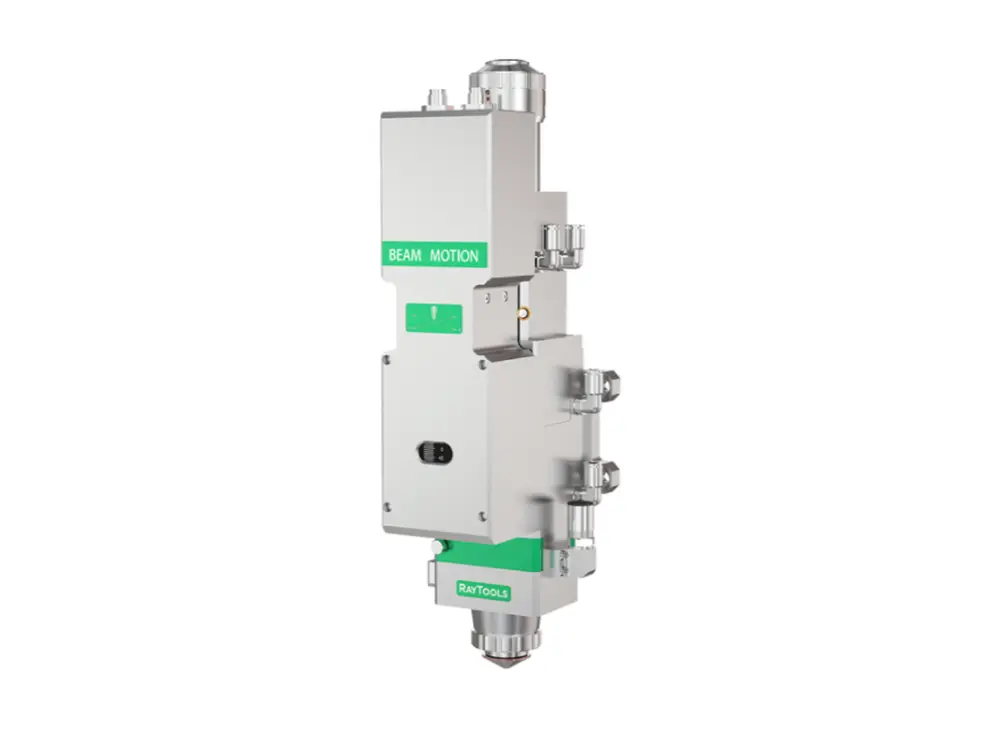

Standard Cutting Head
Self-focusing fiber optic cutting head,
Multi-protection lens, drawer type mirror holder
Improved optical setup and special airflow design

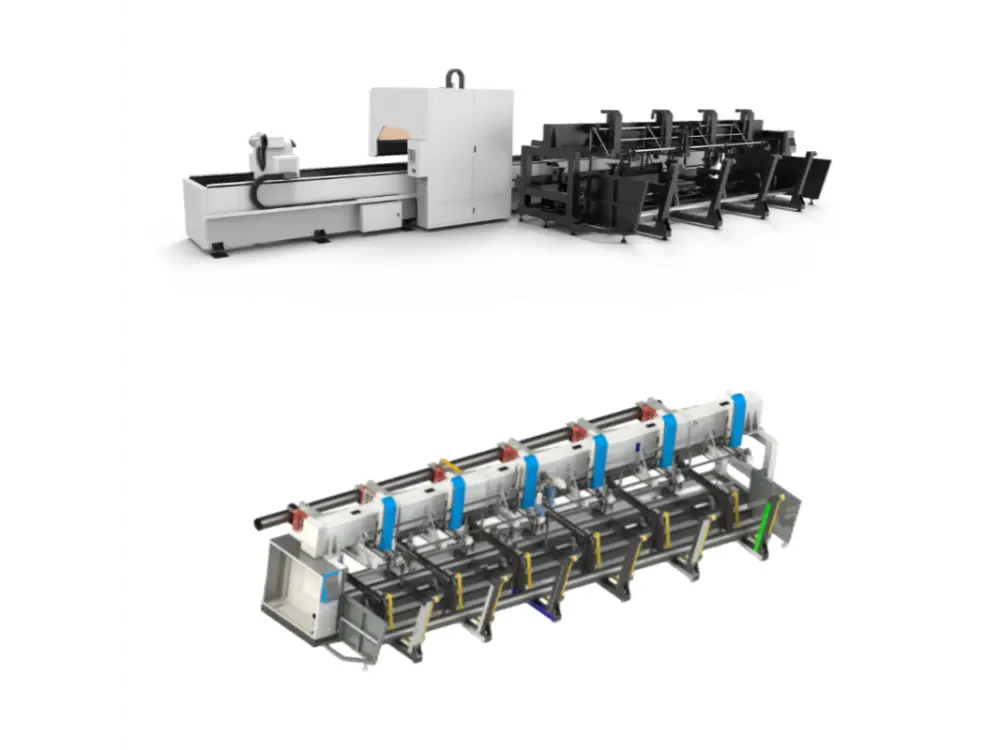

Option: Semi-Auto or Auto loading system
| SYSTEM | SEMI-AUTO LOADING (TOP) | AUTO LOADING (BOTTOM) |
|---|---|---|
| Manually lift pipes to loading rack; Automatically sorting, measuring length, loading and transporting the pipes to cutting head. | ||
| Unit Weight | ≤200KG | ≤240KG |
| Loading Capacity of the Silo | ≤3T | ≤3T |
| Applications | Rectangular, Round, Square and OB tubes | Pipe whose cross section is axisymmetric |
| Other | Modular design, servo drive, independent control system. | |

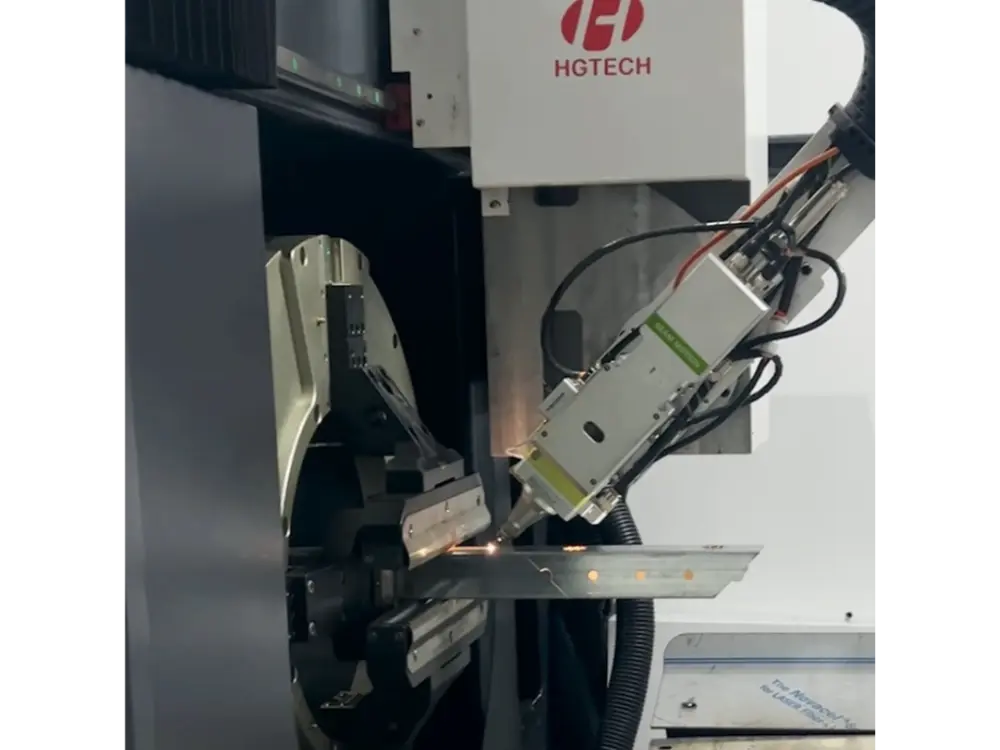

Bevel cutting (Optional)
- Auto focus fiber cutting head
- Multi-protection
- Great optical configuration and efficient airflow design
- Stable rotating mechanism, can achieve ±45° bevel cutting
