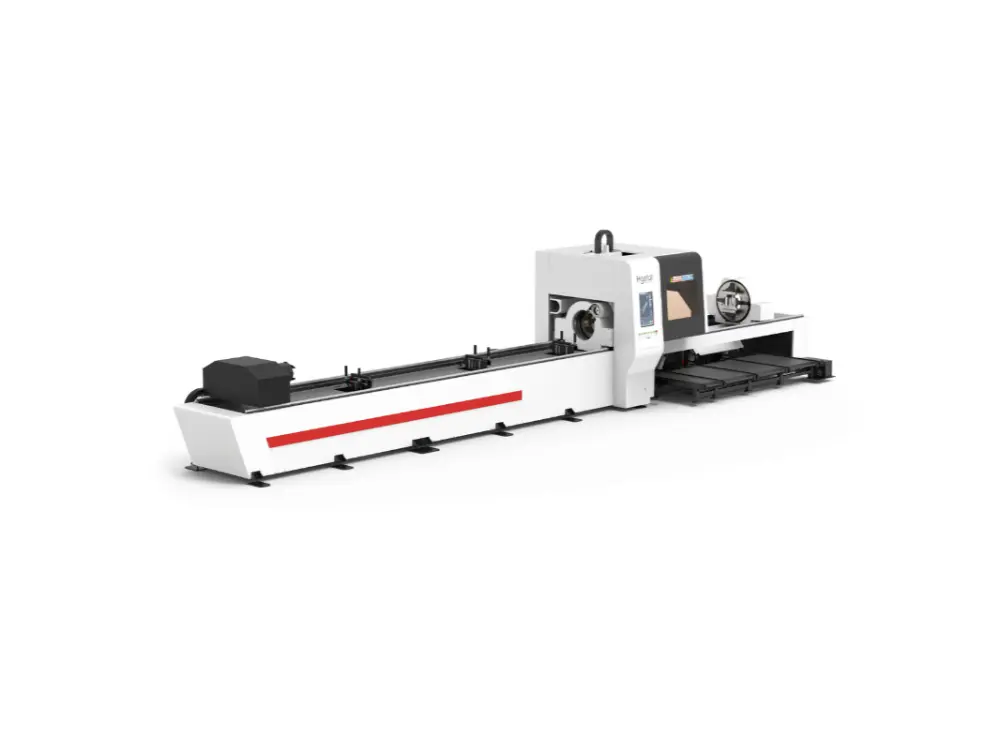

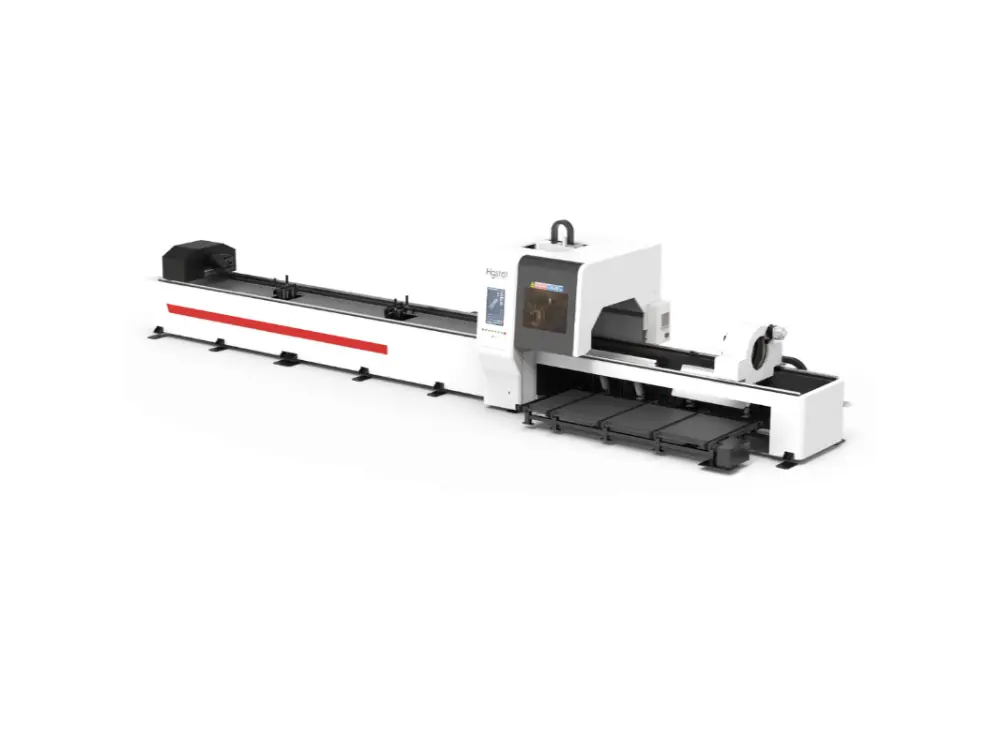

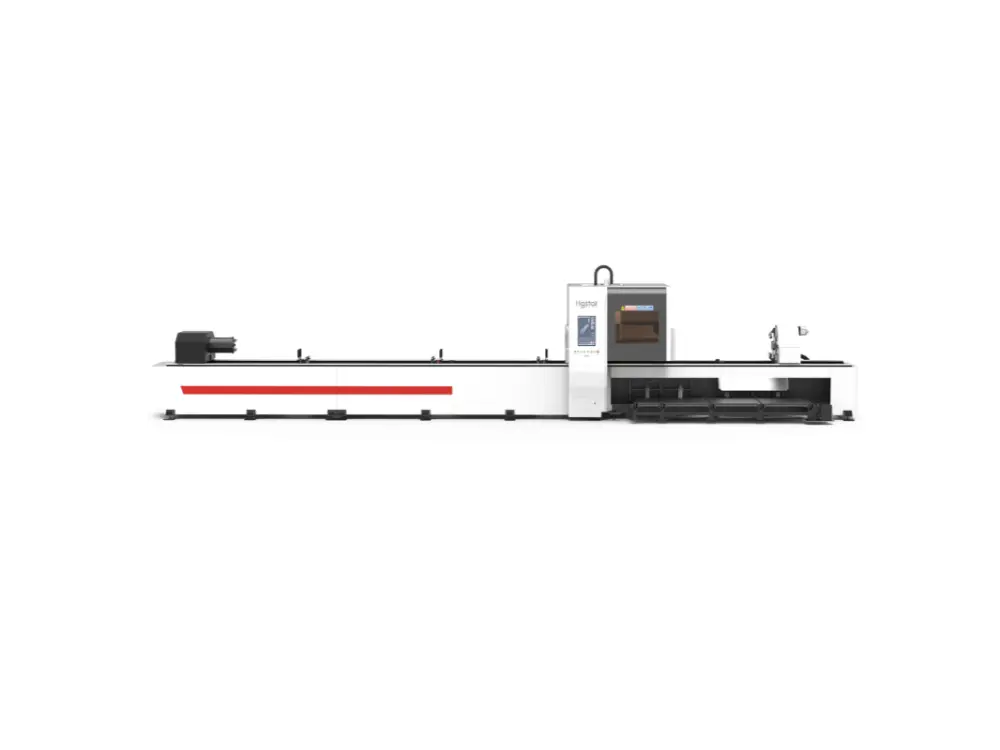

Smart Talos Series Three Chuck Tube Laser Cutting Machine
SMART Talos6535/6565/9035/9065 three chuck cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. The machine has high precision, processing accuracy with higher photoelectric conversion efficiency, strong anti-high capability and stability of lasers. Follow-up unloading device and unloading conveying system make the cutter more efficient.
Tube Laser Cutting Machine Smart Talos Series
The SMART Talos series three-chuck pipe cutting machine is made by HGSTAR to international export standards, ideal for metal tube processing. It features high precision, efficient photoelectric conversion, stable laser performance, and improved productivity with automatic unloading and conveying systems.
Features:
Meets international export standards
High photoelectric conversion efficiency
Three-chuck design for metal tube processing
High precision and cutting accuracy
Stable laser performance with strong durability
Built-in unloading & conveying system for high efficiency
Tube Laser Cutting Machine – Technical Specifications
| MODEL | SMART TALOS 6535/6565 | SMART TALOS 9035/9565 |
|---|---|---|
| Pipe loading length | 6500mm | 9000mm |
| Laser Source | Fiber & 2000W – 6000W | |
| CNC System | FSCUT 5000 | |
| Chuck diameter | Φ20mm – Φ230 / Φ20mm – Φ280 / Φ20mm – Φ350 | |
| Position Accuracy (X and Y axis) | 0.05mm | |
| Reposition Accuracy (X and Y axis) | 0.03mm | |
| Power Supply Requirement | 380V 50/60Hz 3PH | |
Durable, Accurate, Effective
The welded construction guarantees remarkable stiffness and accuracy, allowing for long-term use without deformation.The inclusion of an automatic loading and unloading device significantly enhances the machine’s productivity.
Fast, Reliable, Stable
Pneumatic chuck
Double rows of rollers for effective correction of pipe bending with the ability of precise centering, fast automated processing.High support bearing stability with integral support base structure, highly rigid long cantilever structure, and optional clamping of various profiles.
Accurate and Logical

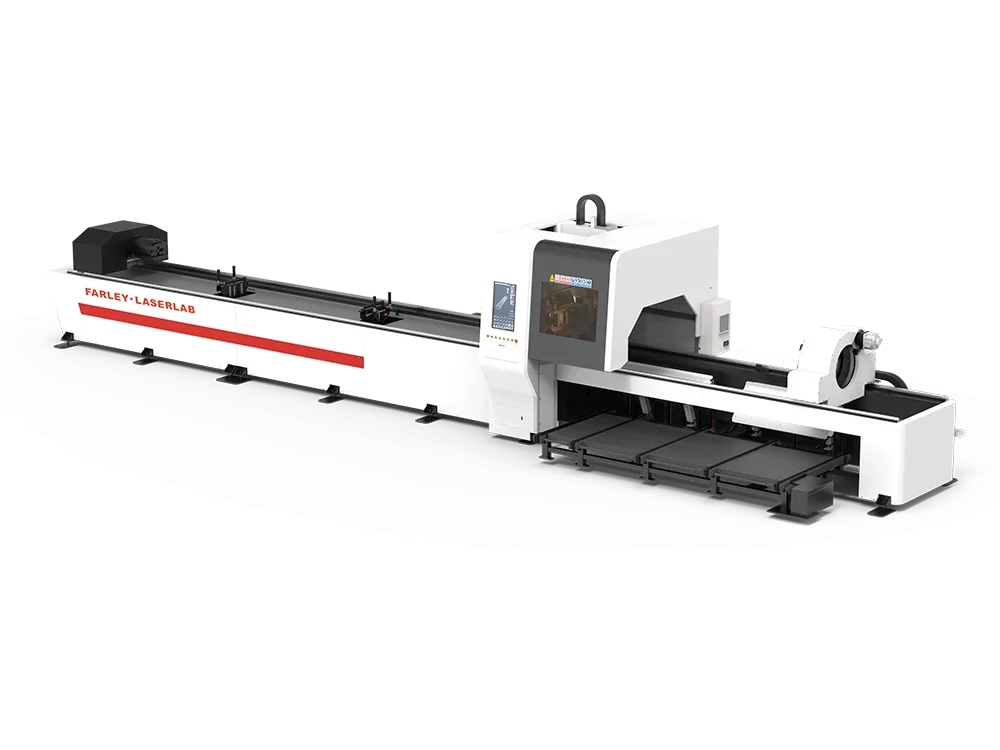

Three chuck processing
Able to move along the Y-axis direction and rotate synchronously.
Under the logical system, pull-type cutting can be cpmpleted accompanied with greater cutting accuracy, and zero-tail cutting conditionally.
Adaptable and Accurate

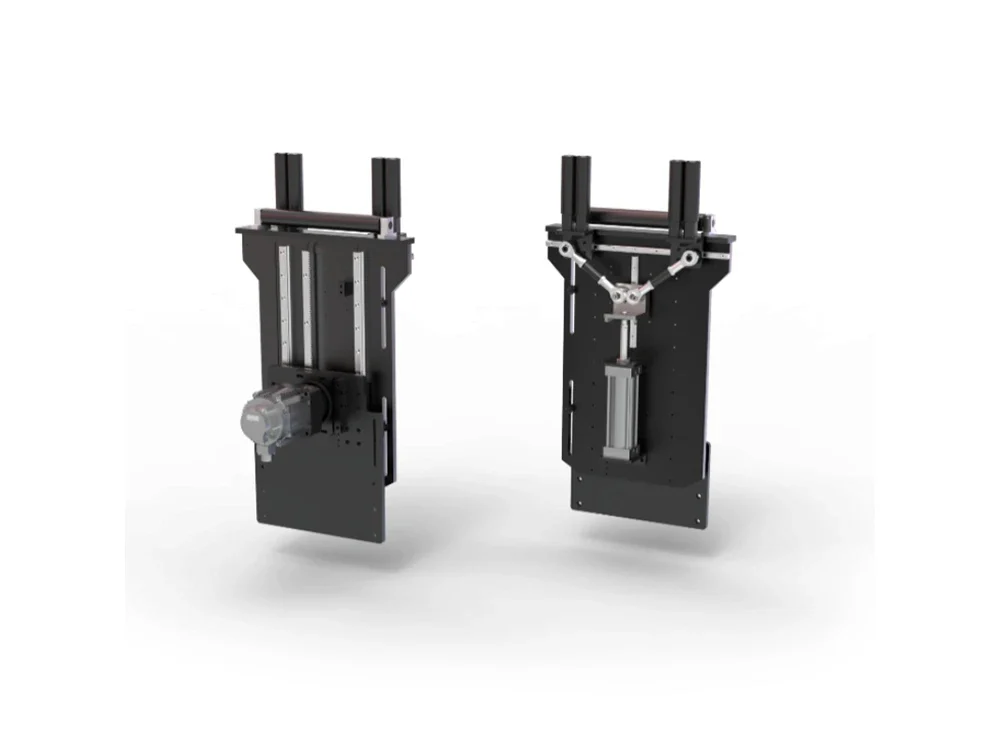

Bed follower centering bracket
Fully automatic servo-following control allows the great adaptability to pipe rotation radius change, and prevent the pipe from sagging.
The system chuck and clamp the pipe during the process, thus improving the processing accuracy.
Automated and Flexible

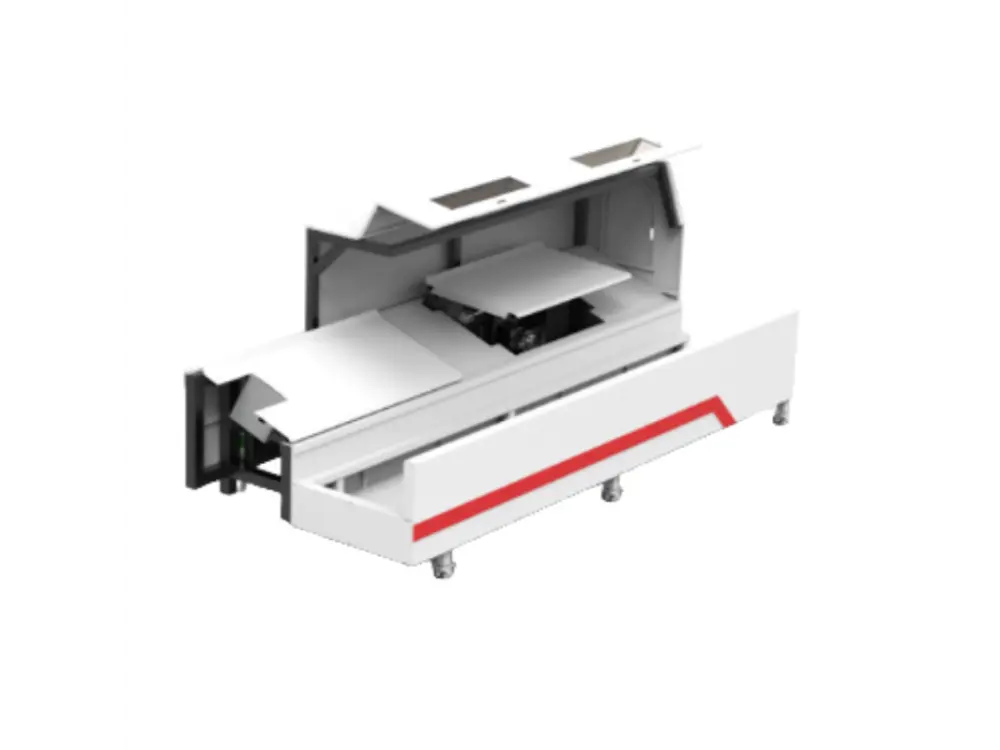

Follow-up Unloading Device
The system not only will automatically control the material receiving and unloading action, realize waste screening, but flexibly adapts to the length of workplace.
Unloading Conveying System
Fully mobile structure, intelligent completion of receiving and transporting cut pipes.
Intelligent and Professional
CNC Control System FSCUT5000
Rich application assistance functions with professional operating software (TubePro) and nesting software (TubeT).
Higher quality and Efficient
Standard Cutting Head
Self-focusing fiber optic cutting head,
Multi-protection lens, drawer type mirror holder
Improved optical setup and special airflow design

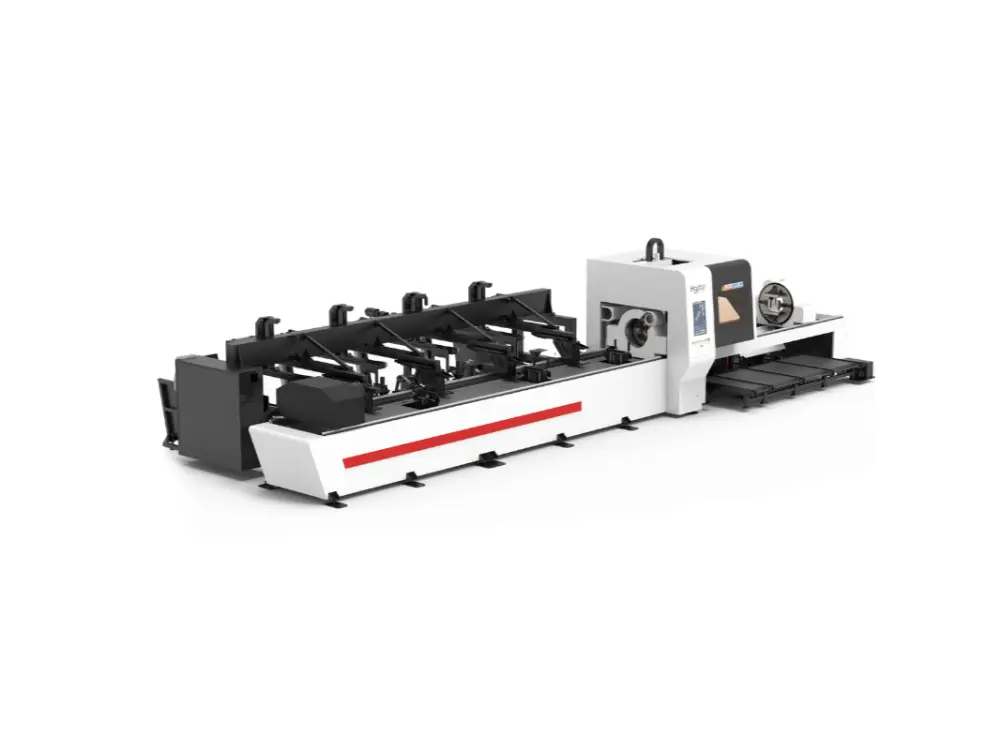

Option: Semi-Auto or Auto loading system
| SYSTEM | SEMI-AUTO LOADING (TOP) | AUTO LOADING (BOTTOM) |
|---|---|---|
| Manually lift pipes to loading rack; Automatically sorting, measuring length, loading and transporting the pipes to cutting head. | ||
| Unit Weight | ≤200KG | ≤240KG |
| Loading Capacity of the Silo | ≤3T | ≤3T |
| Applications | Rectangular, Round, Square and OB tubes | Pipe whose cross section is axisymmetric |
| Other | Modular design, servo drive, independent control system. | |
Bevel cutting (Optional)
- Auto focus fiber cutting head
- Multi-protection
- Great optical configuration and efficient airflow design
- Stable rotating mechanism, can achieve ±45° bevel cutting
