4-Chuck (Side-Hung) Heavy-Duty Laser Tube Cutting Machine: TP12052F & LT12052F

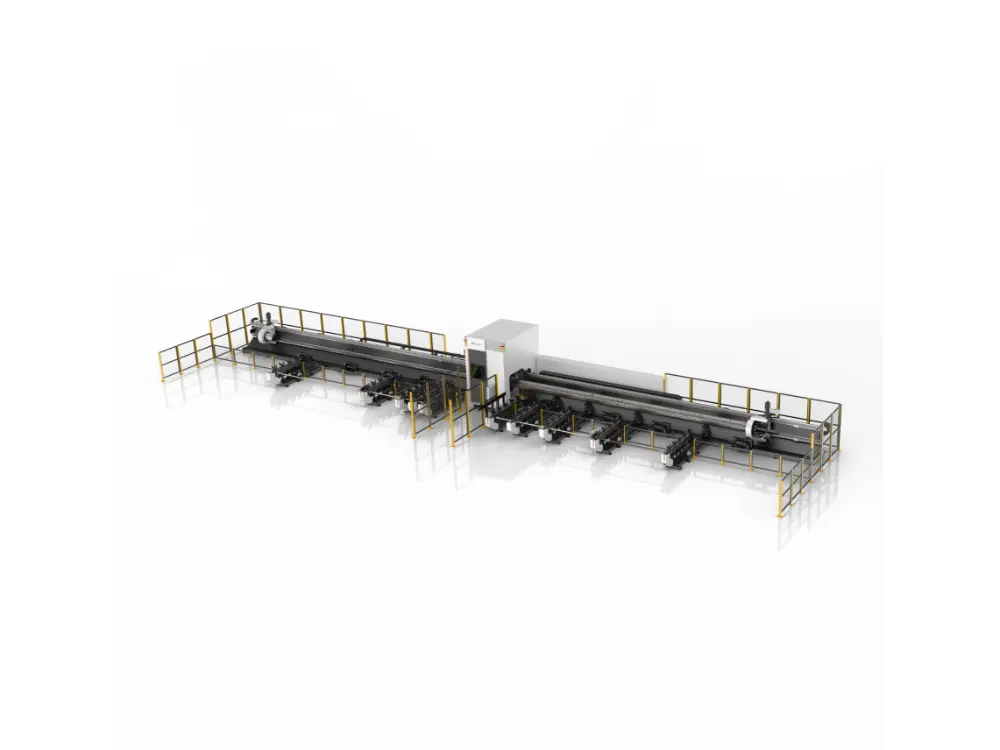

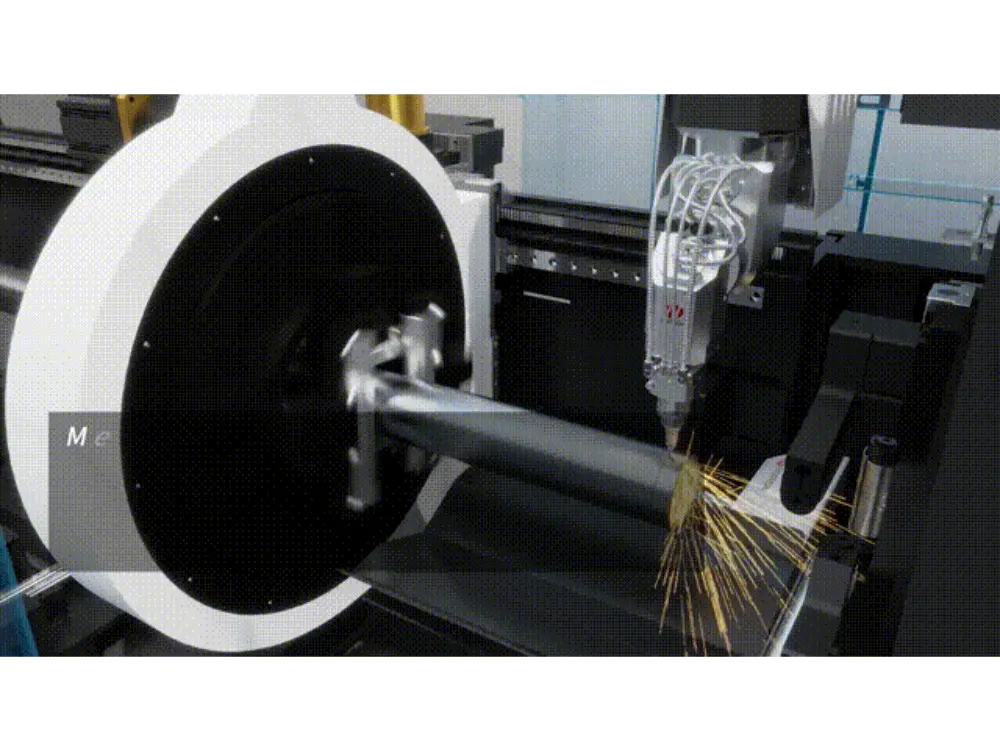

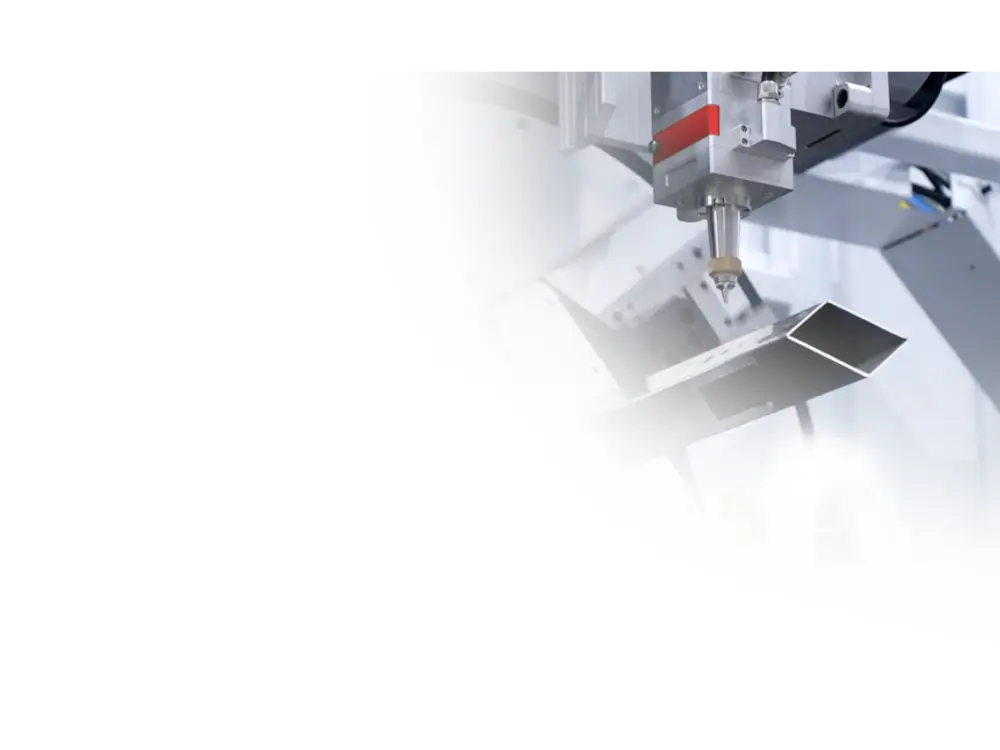

The TP12052F & LT12052F 4-chuck (side-hung) heavy-duty laser tube cutting machine is a laser cutting processing equipment specially designed for industries such as bridge construction, engineering machinery, power transmission towers, assembly buildings, and tunnel transportation. With a brand-new design concept, it meets customers’ requirements for processing metal tubes of various specifications, as well as the pursuit of high quality, high precision and high efficiency. One machine can replace a small factory, bringing a revolutionary change in production mode.

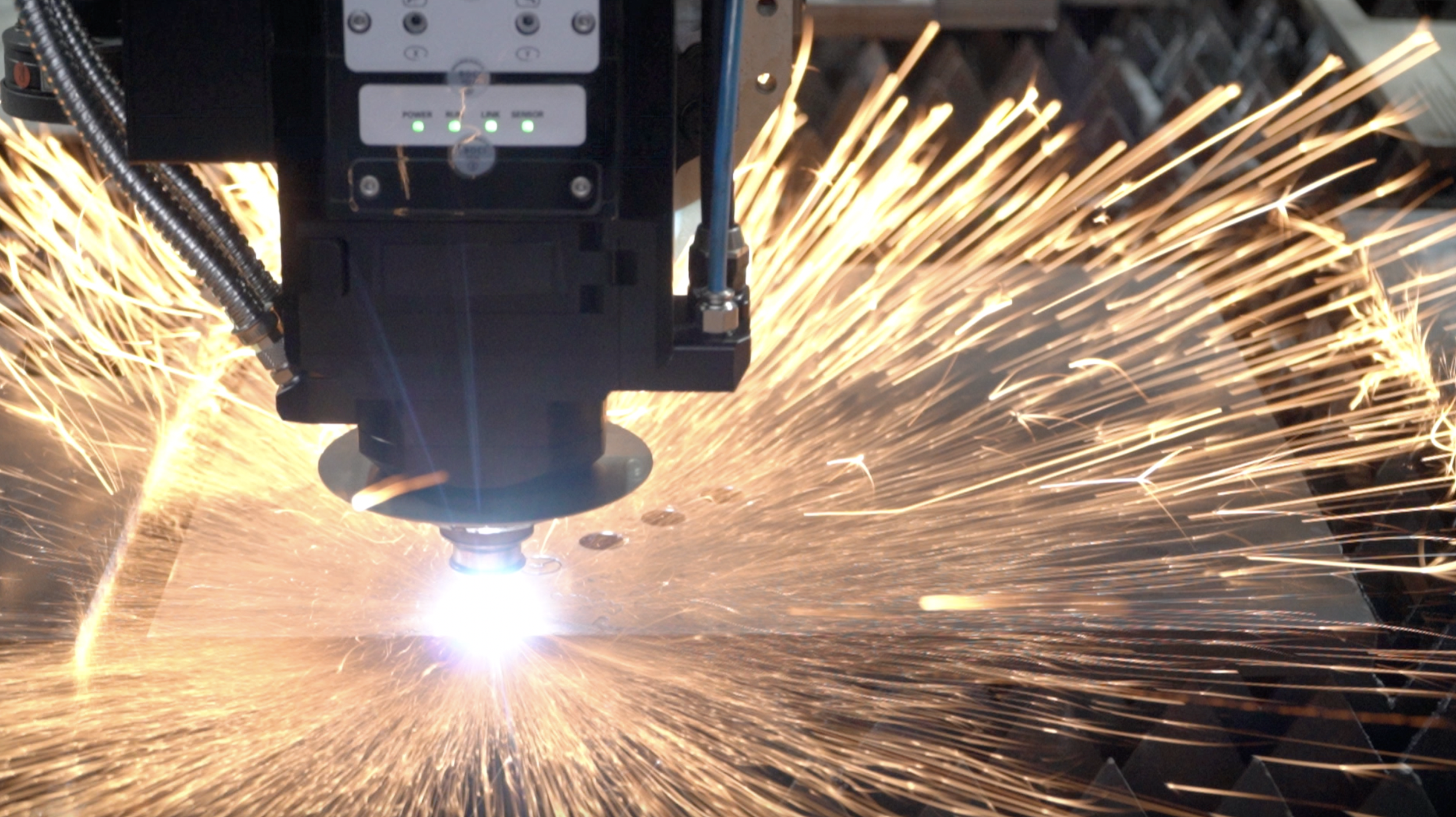

Geiser Performance – 8 Months with the SheetLAZER Auto

Cameron White from Geiser Performance discusses what it’s been like operating the X-Series SheetLAZER Auto for 8 months, and working with the XOVR Parts & Service team.

“Second to none. Best service we’ve received from a company like this.”

Features:

Scalability

Convenience

Flexibility

Precision

Stability

Economy

Diversity

4-Chuck (Side-Hung) Heavy-Duty Laser Tube Cutting Machine: TP12052F & LT12052F

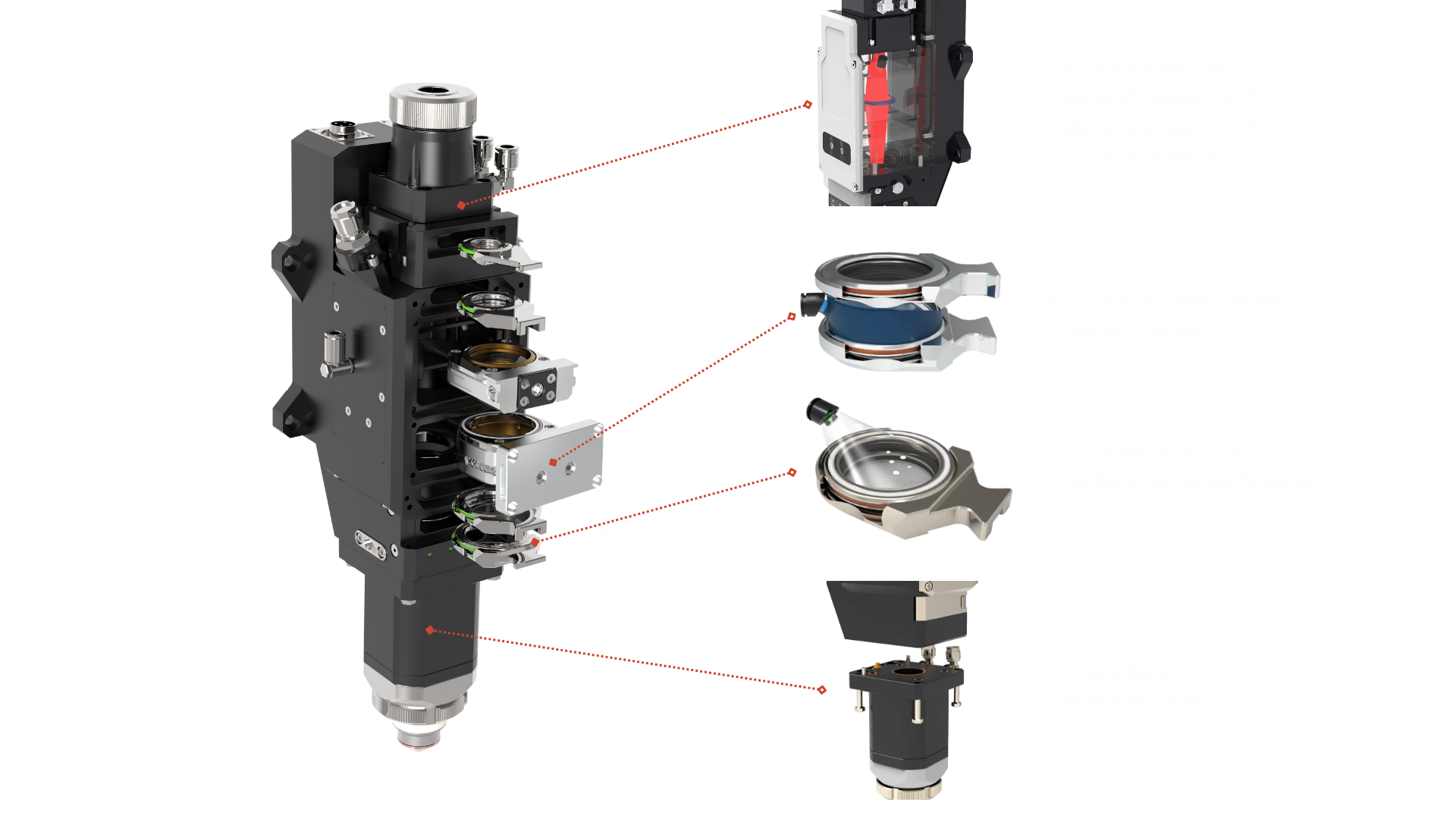

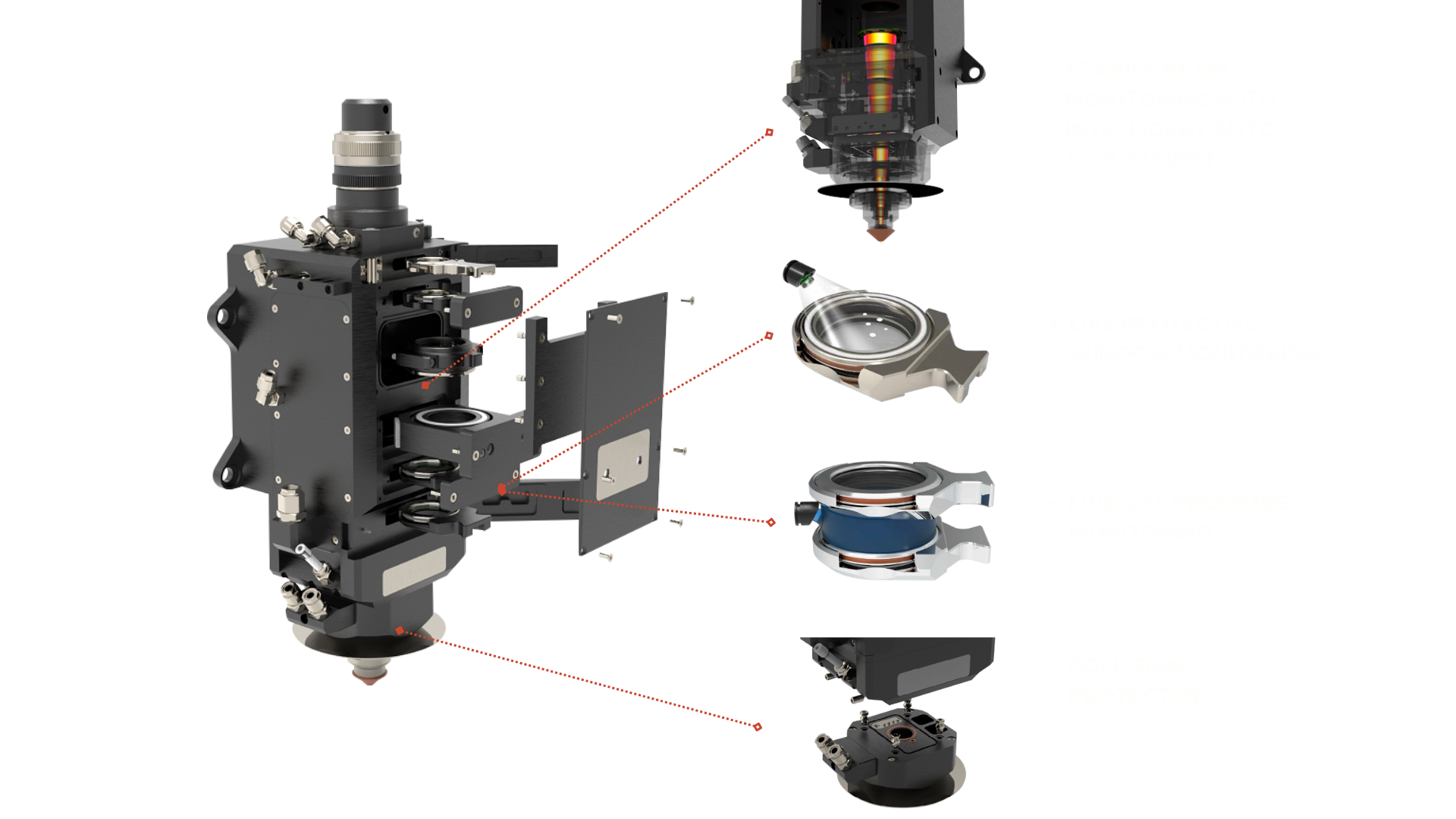

The system design of this equipment is precise and efficient, integrating optics, mechanics, electrical engineering, and software/hardware control. Equipped with a variety of adaptive sensors, it has functions such as automatic length measurement, automatic compensation, and a complete set of CAD/CAM software for tube cutting programming, thus realizing full automation.

It fully considers all elements of ergonomics, such as the operability of various personnel, improving work efficiency, and a safety protection system. It has inherent advantages in processing ultra-long and ultra-heavy metal tubes and profiles, featuring high processing accuracy, fast speed, stable and reliable operation, and simple and convenient operation. It can realize automatic and mass production of heavy-duty tubes.

Item		Main Technical Parameters
Equipment Model		TP12052F	LT12052F
CNC System		Bodor CNC System	Siemens CNC System
Overall Specifications	Equipment Power	3000W, 6000W, 12000W
	Machine Dimensions	30m × 5,0m × 3,6m
	Equipment Weight	Approx. 50T
Material Specifications	Material Type	Carbon steel or stainless steel round tubes, square tubes, rectangular tubes, elliptical tubes, angle irons, channel steels, H-beams, etc.
	Chuck Diameter	Φ40mm ~ Φ510mm
	Tube Loading Length	2200mm ~ 12000mm
	Tube Unloading Length	0 ~ 12000mm
	Max. Single Tube Weight	125Kg/m (máximo 1500Kg por tubo)
Operating Parameters	Total Power (Reference)	180KW
	Phase/Power Rating/Voltage Frequency	3/380V/50Hz, fluctuación de tensión <10%
	Working Air Source	0,5 ~ 0,8MPa
Processing Stroke	Machine Working Stroke	Eje Y: 0 ~ 13000mm Eje X: 0 ~ 800mm Eje Z: 0 ~ 350mm
Processing Stroke	Axes	C1/C2/C3/C4 axes, n*360°
Positioning Accuracy	X/Y Axis Positioning Accuracy	±0,05mm/500mm
Positioning Accuracy	X/Y Axis Repeat Positioning Accuracy	±0,02mm

Notes

If there is a polyethylene protective film attached to the material, it must be peeled off. The polyethylene protective film will not only cause poor processing, but also corrode the mechanical equipment due to the generated hydrogen chloride gas and be harmful to humans.
The chuck diameter indicates that the maximum processing circular tube is Φ510mm and the maximum square tube cross-section is 350mm×350mm. For processing of other profiles (H-beam, I-beam, L-beam, etc.) or non-standard cross-section materials, please confirm with Bodor Laser Technical Personnel.

Scalability

Capable of processing tubes weighing up to 1.5T, with a maximum processing diameter of 510mm (Φ510mm, □350×350mm);

Stability

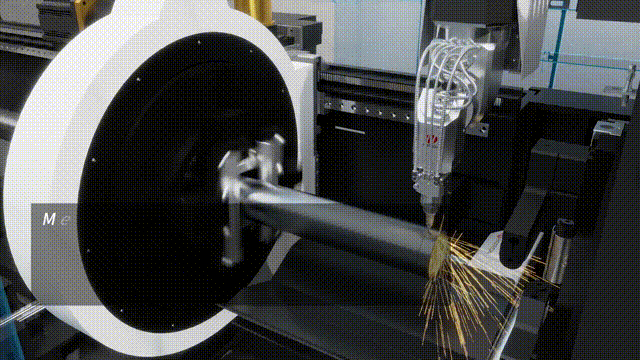

The entire machine body is manufactured from 155 cast iron parts, delivering better stability, higher accuracy, and stronger suction stability, with a total machine weight of 50 tons;

Convenience

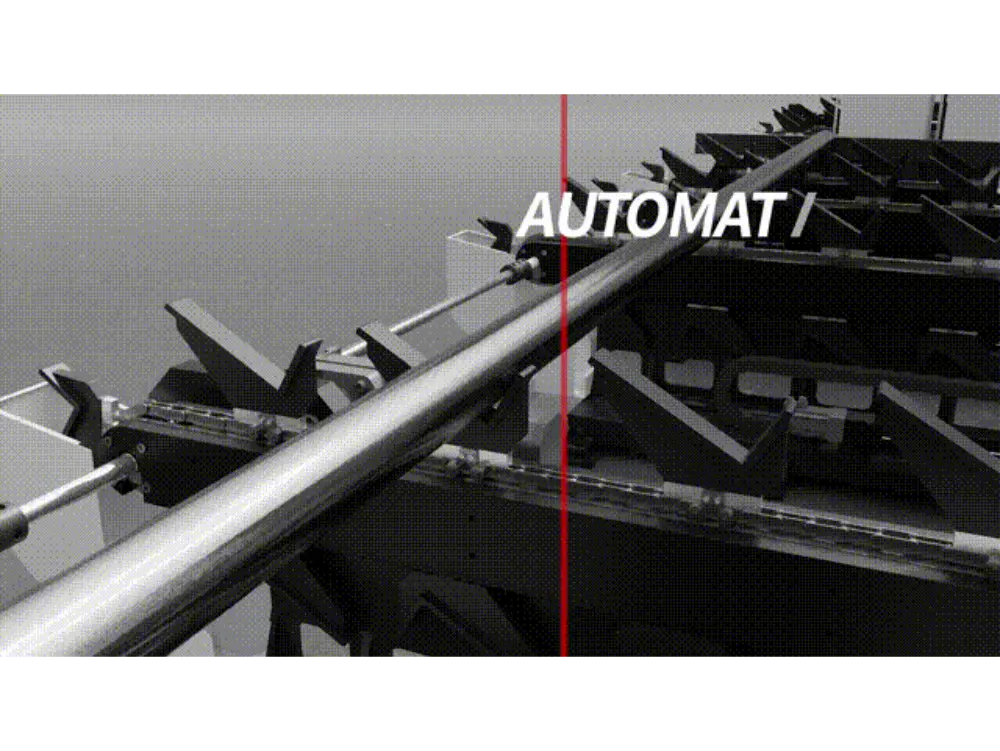

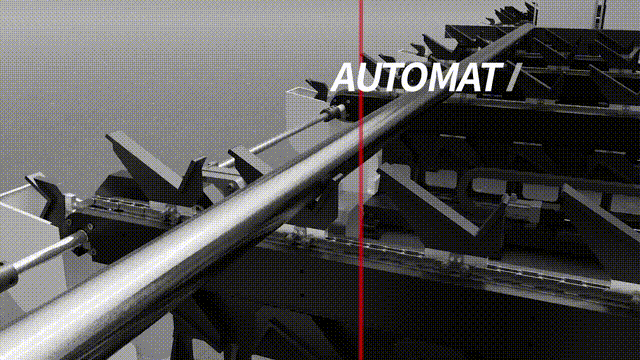

The whole machine adopts a 29-set servo motor numerical control system, cooperating with fully automatic loading and unloading systems to realize automated production;

Economy

4-chuck zero-tail cutting, enabling 12-meter whole material loading, 12-meter whole material cutting processing and zero-tail processing;

Flexibility

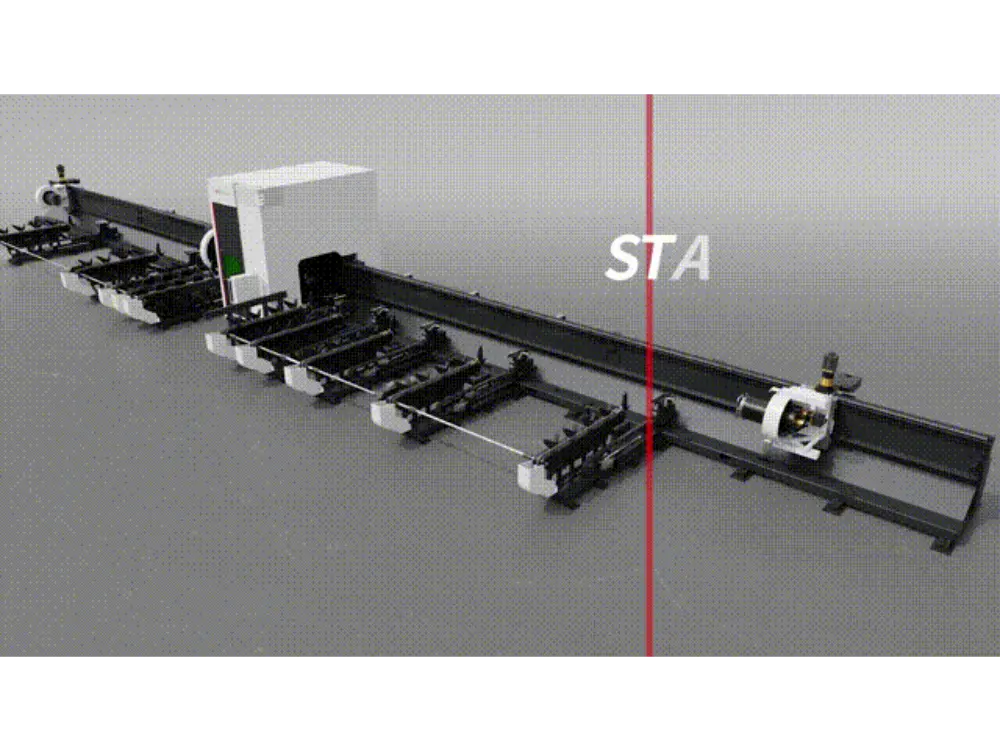

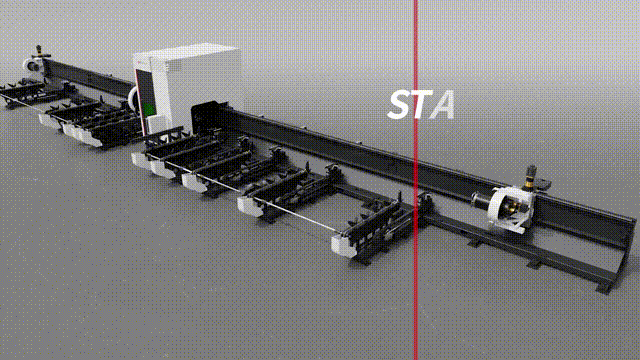

Modular design concept, which can be customized according to customer needs, and unit modules can be adjusted according to actual requirements;

Diversity

Multi-variety, automated, multi-process combined processing technology;

Precision

Ultra-long and ultra-heavy tube laser cutting, anti-buckling technology, and thorough solution to small-hole circular cutting technology for ultra-heavy and ultra-long tubes.

Reliable & Stable Fiber Laser Technology

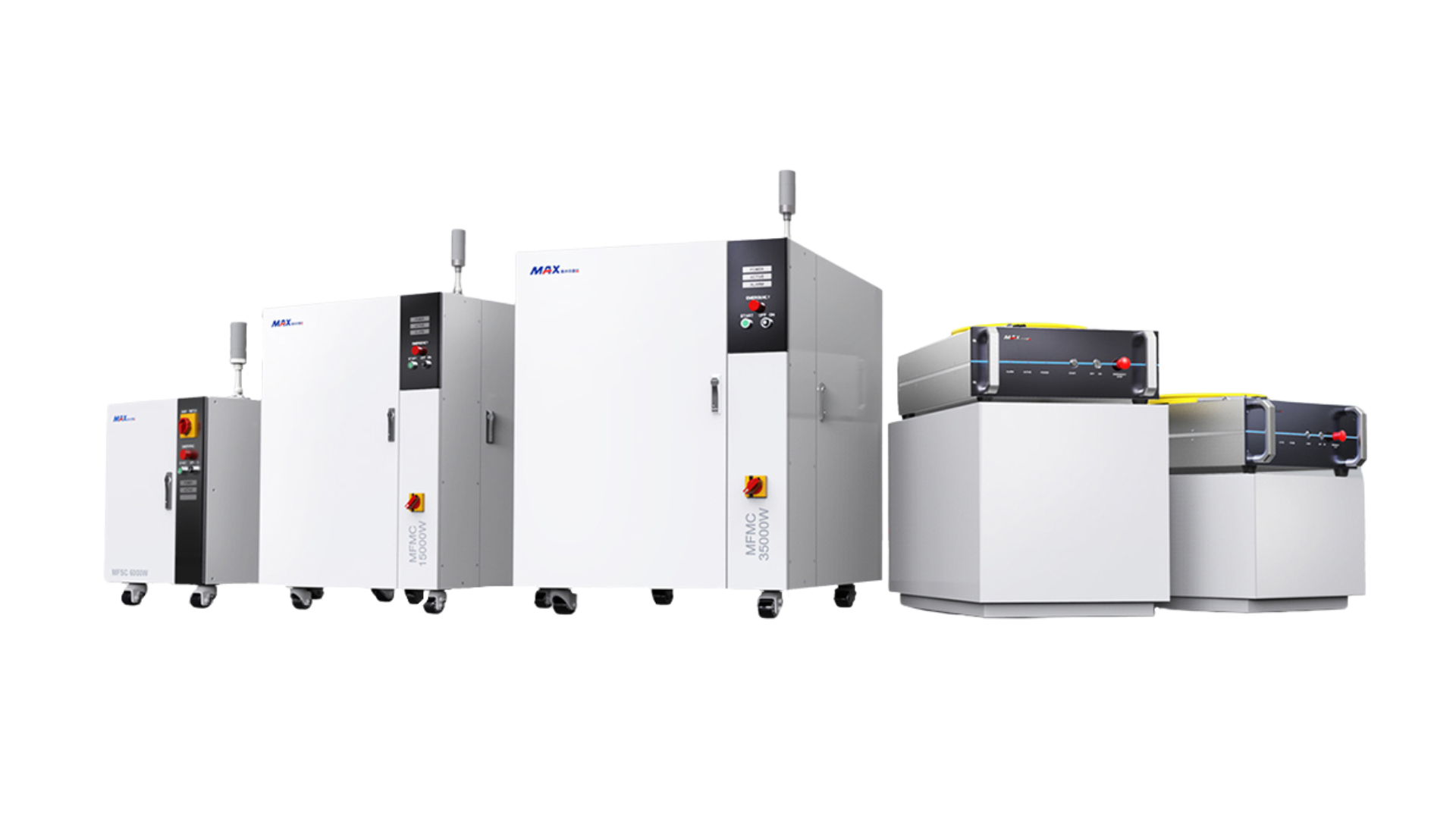

Multi-Module CW Fiber Laser Technology

From 3kw up to 12kw
Highly Reliable & Maintenance Free
High Electro-Optical Conversion Efficiency
High Beam Stability & Quality
