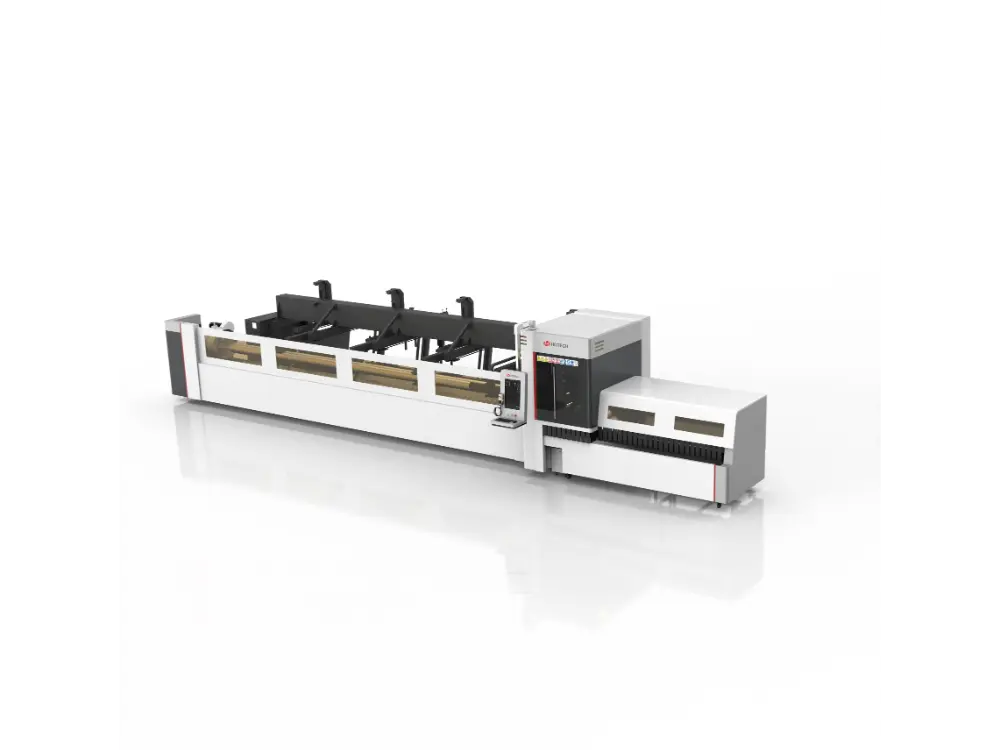

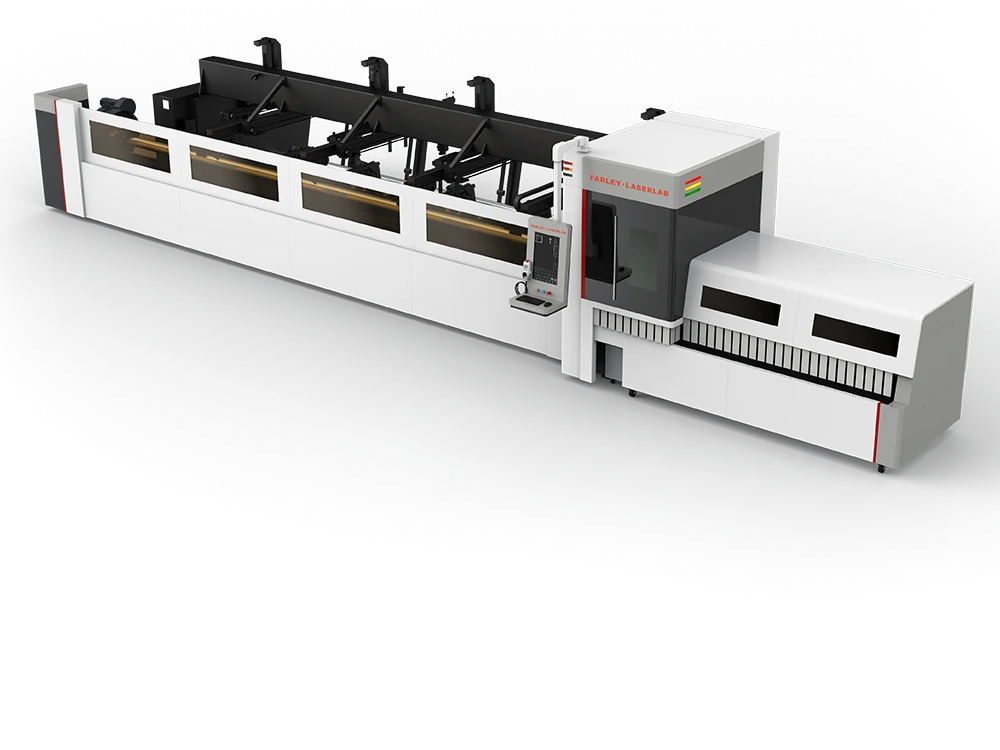

2 Chucks (Horizontal) Laser Tube Cutting Machine TP6322 & LT6322
TP6322 & LT6322 2 chucks (horizontal) laser tube cutting machine integrates CNC technology,laser cutting and precision machinery. It has great advantages for light tube cutting. It is mainly used for cutting of carbon steel tube, stainless steel tube, aluminum alloy tube
FARLEY LASERLAB AUTO: 2 Chucks Laser Tube Cutting Machine

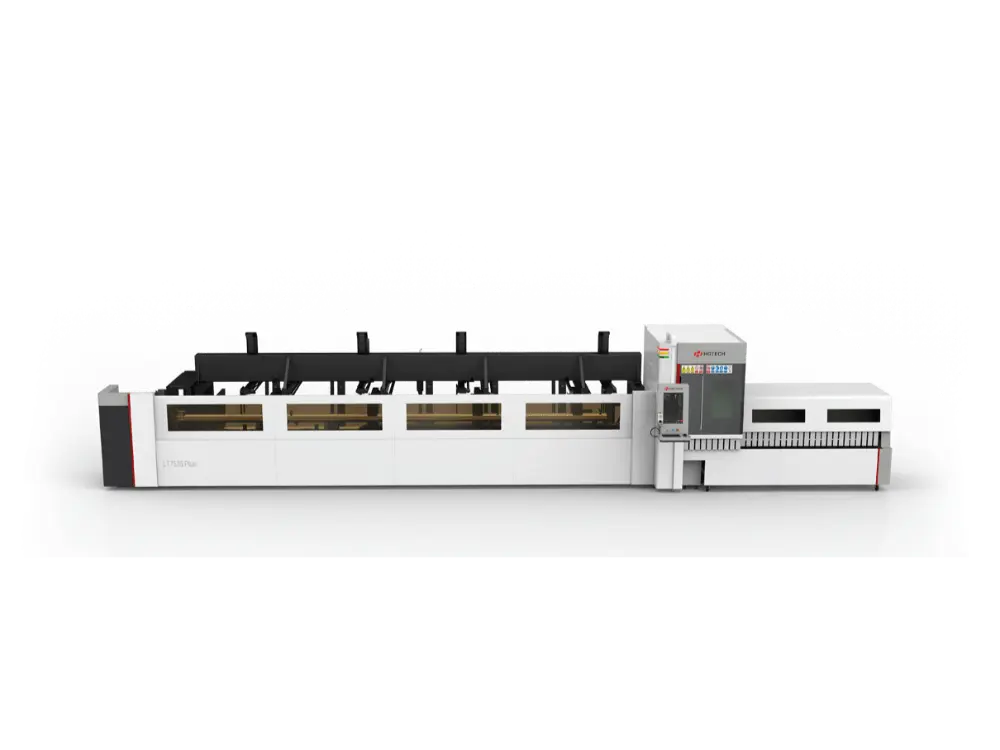

2 Chucks (Horizontal) Laser Tube Cutting Machine TP6322 & LT6322
TP6322 & LT6322 2 chucks (horizontal) laser tube cutting machine integrates CNC technology,laser cutting and precision machinery. It has great advantages for light tube cutting. It is mainly used for cutting of carbon steel tube, stainless steel tube, aluminum alloy tube (square tube, round tube, OB tube, sectional materials) and other tubes. It is the first choice for non-contact metal tube processing industry because of its professionalism, efficiency, high cost performance.
It is widely used in fitness equipment, smart furniture, petroleum tubeline, bus manufacturing, construction machinery, shelves and container, agricultural and forestry machinery, ladder and guardrail, home appliances manufacturing, laser processing services and other machine manufacturing or tube processing industry.

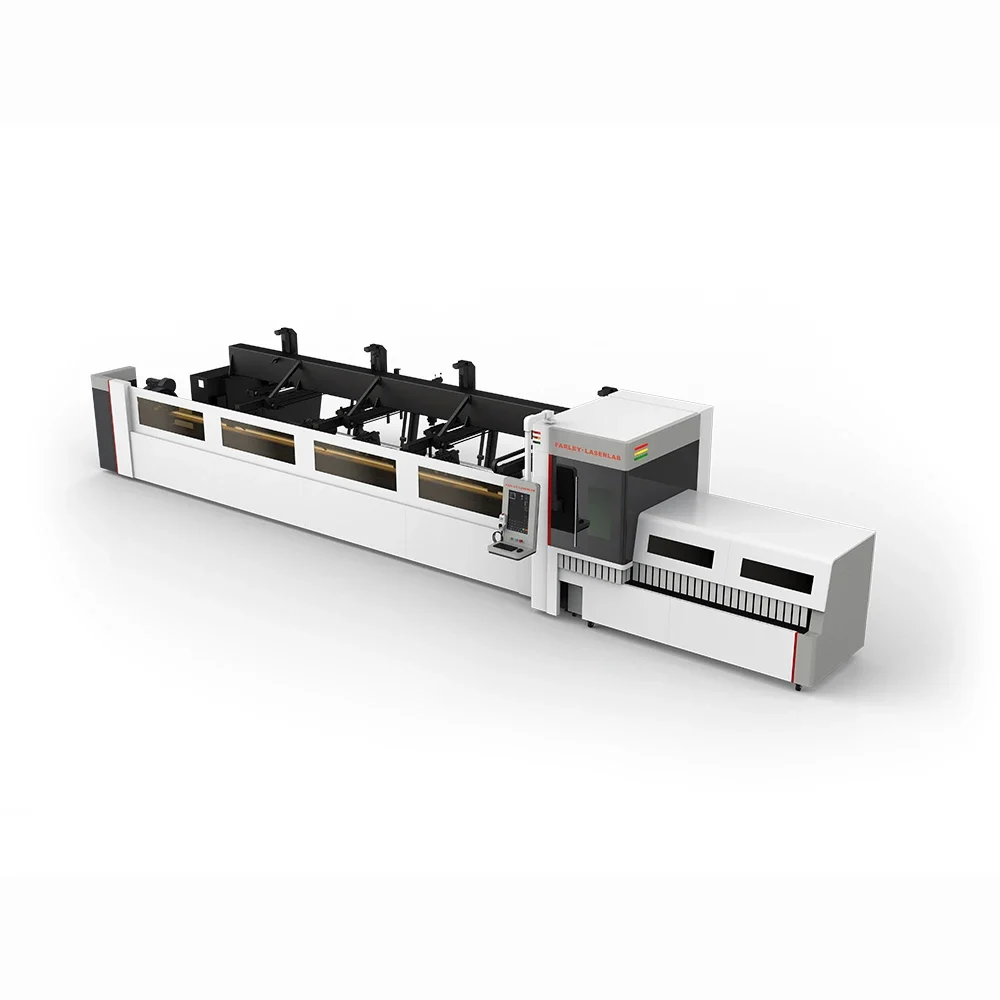

2 Chucks (Horizontal) Laser Tube Cutting Machine TP6322 & LT6322
TP6322 & LT6322: Dual-chuck horizontal laser tube cutters. Advanced technology integration, superior light tube cutting performance. Versatile, efficient and cost-effective for all non-contact metal tube processing applications.
Features:
Integrated Advanced Technologies
Wide Material Compatibility
Non-Contact & Cost-Effective
Optimized for Light Tube Cutting
Versatile Profile Processing
Broad Industry Applications
2 Chucks Laser Tube Cutting Machine – Technical Specifications
| Item | Parameters | ||
|---|---|---|---|
| Model | TP6322 | LT6322 | |
| CNC System | FSCUT | SIMENS | |
| Specification | Power | 1500W、2000W、3000W | |
| Size | 11.6m×2.5m×2.6m | ||
| Material | Type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc | |
| Diameter | Φ20mm-Φ220mm | ||
| Loading Capacity | 4000mm-6300mm | ||
| Unloading Capacity | 0-3000mm | ||
| Single Tube Max. Weight | 28.6Kg/m (180g) | ||
| Operating Parameters | Total Power (reference) | 38KW | |
| Phase Number/ Power Supply Rating/ Voltage Frequency | 3/380V/50Hz, Voltage Fluctuation<10% | ||
| Working Air Source | 0.5-0.8MPa | ||
| Processing Area | Working Area (machine tool) | Y 0-6500mm X 0-300mm Z 0-180mm | |
| C1/C2 Axis | n*360° | ||
| Positioning Accuracy | X/Y Positioning Accuracy | ±0.05mm/500mm | |
| X/Y Repeat Positioning Accuracy | ±0.05mm | ||
| Remark: 1. If the material is covered with a PVC protective film, it must be removed. With PVC protective film will not only lead to poor processing, but also make the machinery corroded and does harm tn human heath due to the production of chlorine gas. 2. The diameter of chuck indicates the maximum section of the round tube that can be processed is Φ220mm. For other profiles (H steel, I steel, L steel etc.) or selectional materials with non-standard section, please confirm with HGLaser technicians. | |||
Extensibility:Super large HMI interactive interface, with multi functions such as proces s database, graphic display,automatic fixture control, program quick editing and modification etc.

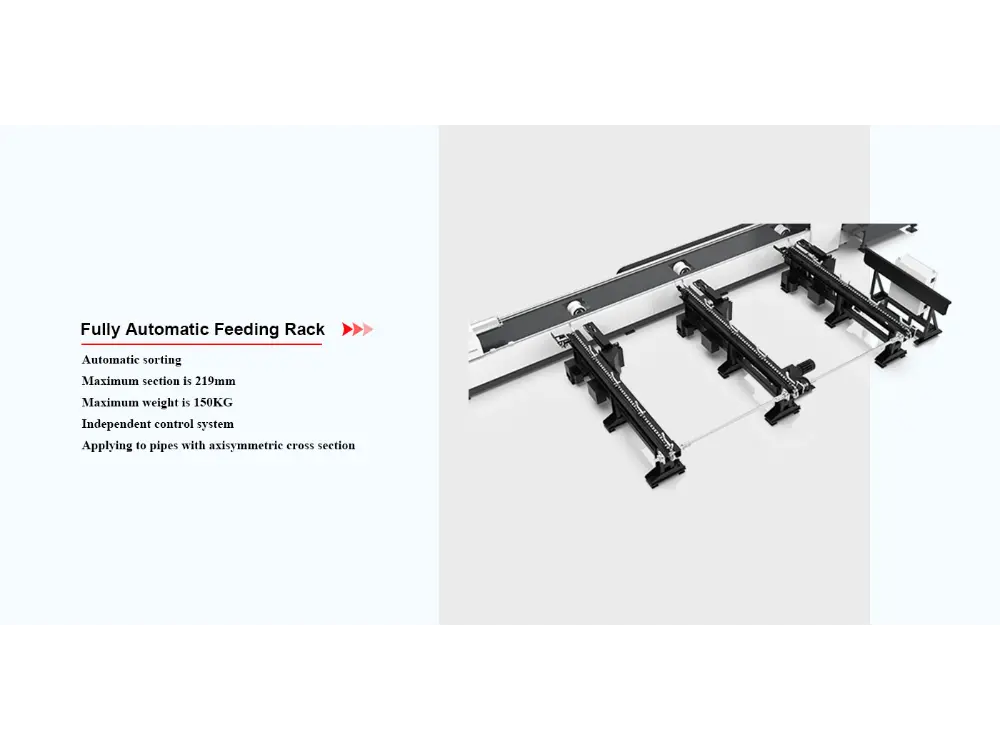

Efficiency:Equipped with a fully automatic bundling and loading system, with high automatic production efficiency.
Related products
SMART Tflx6535 two chuck tube laser cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.
Smart TS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.
The TP12052F & LT12052F 4-chuck (side-hung) heavy-duty laser tube cutting machine is a laser cutting processing equipment specially designed for industries such as bridge construction, engineering machinery, power transmission towers, assembly buildings, and tunnel transportation. With a brand-new design concept, it meets customers’ requirements for processing metal tubes of various specifications

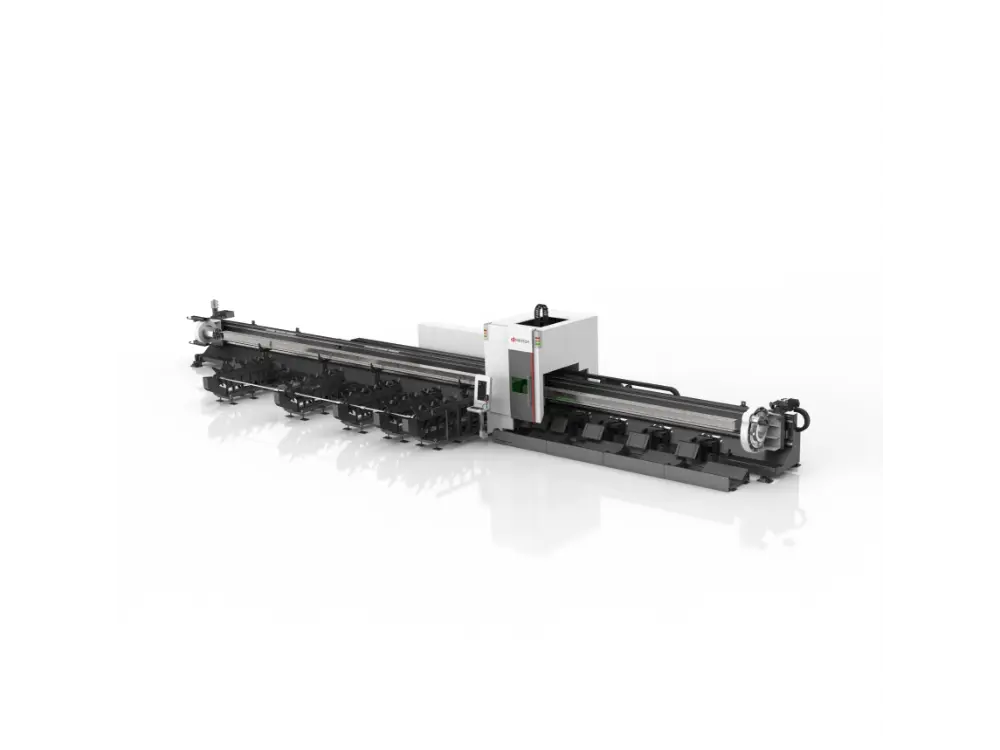

TP12036M & LT12036M 3 chucks (side-hanging) heavy-load laser tube cutting machine integrates CNC technology, laser cutting, precision machinery and automatic control. It has high speed, high precision, high efficiency and high economic benefits, and can meet the cutting requirements of ultra-long and ultra-heavy tubes in industries such as bridges and ships, engineering machinery
