FARLEY LASERLAB AUTO: 3 Chucks Laser Tube Cutting Machine

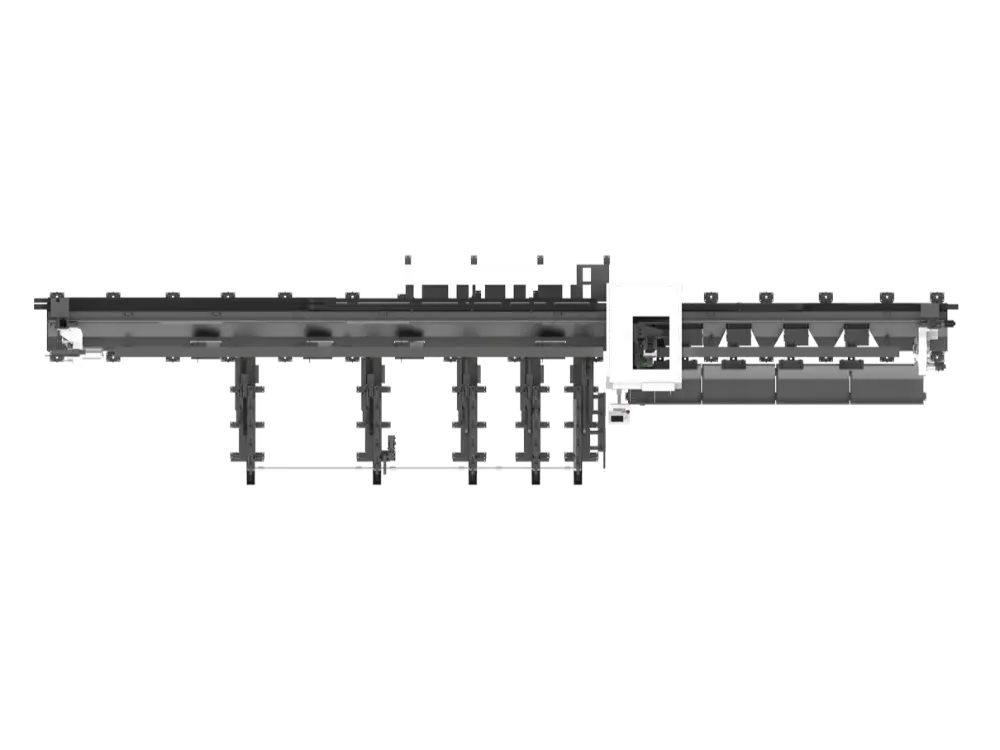

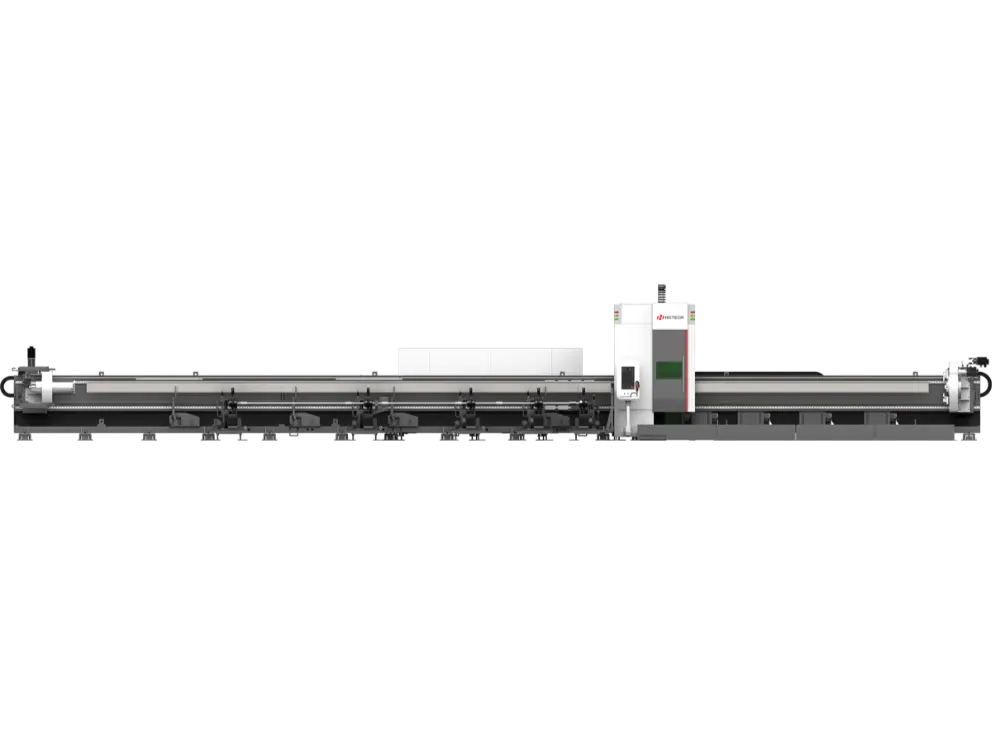

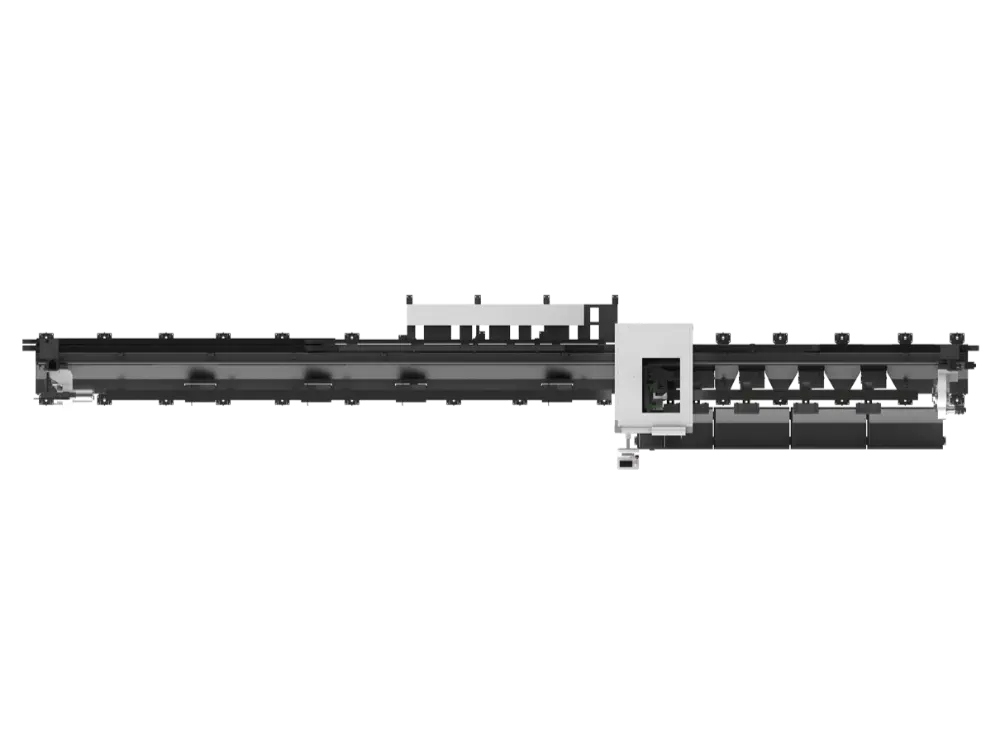

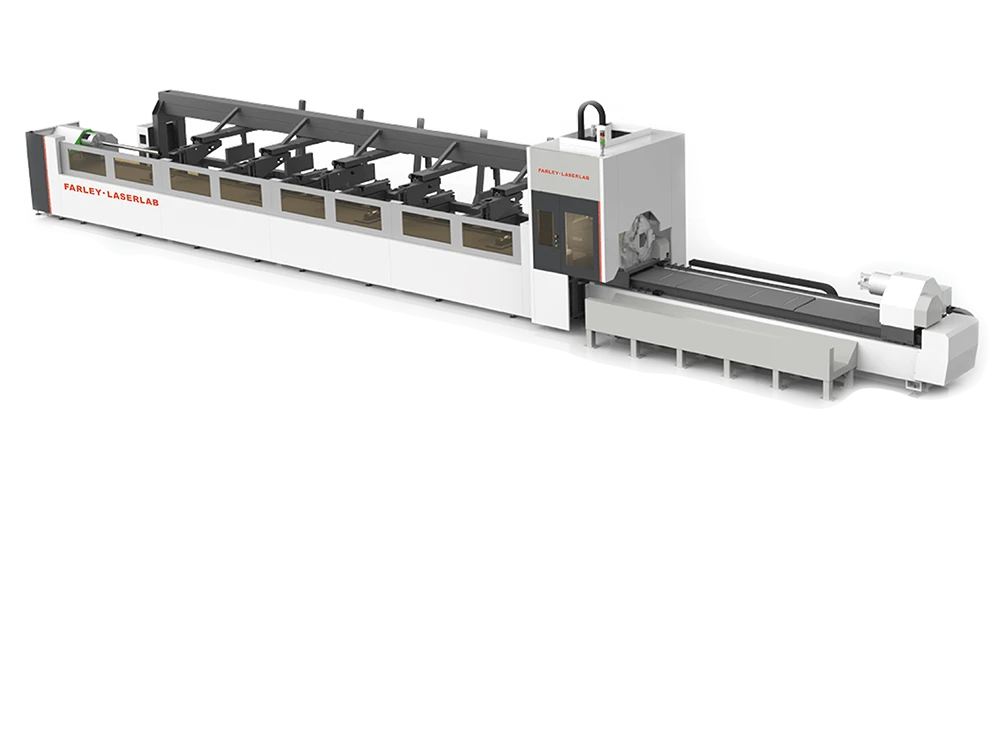

3 Chucks (Side Hanging) Heavy-Load Laser Tube Cutting Machine TP12036M & LT12036M
TP12036M & LT12036M 3 chucks (side-hanging) heavy-load laser tube cutting machine integrates CNC technology, laser cutting, precision machinery and automatic control. It has high speed, high precision, high efficiency and high economic benefits, and can meet the cutting requirements of ultra-long and ultra-heavy tubes in industries such as bridges and ships, engineering machinery, electric power tower, assembly building, tunnel traffic, etc.
It has outstanding advantages for processing of ultra-long and ultra-heavy metal tubes and sectional materials. It has high precision, high speed, good equipment stability, and is convenient to operate, and can realize volume production.
It is widely used in petroleum tubeline, bus manufacturing, construction machinery, shelves and container, agricultural and forestry machinery, ladder and guardrail, laser processing services and other machine manufacturing or tube processing industry.
3 Chucks (Side Hanging) Heavy-Load Laser Tube Cutting Machine TP12036M & LT12036M
TP12036M & LT12036M: 3-chucks side-hung heavy-duty laser tube cutters. Built for ultra-long/ultra-heavy tube processing. High speed, precision and stability, ideal for heavy industrial applications and mass production.
Features:
Integrated Advanced Technologies
Ultra-Long & Ultra-Heavy Tube Expertise
Stable & Easy to Operate
3-Chucks Side-Hung Heavy-Load Design
Four-High Core Performance
Mass Production & Heavy Industry Ready
3 Chucks Laser Tube Cutting Machine – Technical Specifications
| Item | Parameters | ||
|---|---|---|---|
| Model | TP12036M | LT12036M | |
| CNC System | FSCUT | SIMENS | |
| Specification | Power | 3000W、6000W、12000W | |
| Size | 19.3m×6.5m×2.8m | ||
| Weight | Approx.23T | ||
| Material | Type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc | |
| Diameter | Φ20mm-Φ360mm | ||
| Loading Capacity | 5000mm-12000mm | ||
| Unloading Capacity | 0-6000mm | ||
| Single Tube Max. Weight | 83.3Kg/m (1000Kg) | ||
| Operating Parameters | Total Power (reference) | 110KW | |
| Phase Number/ Power Supply Rating/ Voltage Frequency | 3/380V/50Hz, Voltage Fluctuation<10% | ||
| Working Air Source | 0.5-0.8MPa | ||
| Processing Area | Working Area (machine tool) | Y 0-12200mm X 0-800mm Z 0-350mm | |
| C1/C2 Axis | n*360° | ||
| Positioning Accuracy | X/Y Positioning Accuracy | ±0.05mm/500mm | |
| X/Y Repeat Positioning Accuracy | ±0.05mm | ||
Remark: 1. If the material is covered with a PVC protective film, it must be removed. With PVC protective film will not only lead to poor processing, but also make the machinery corroded and does harm tn human heath due to the production of chlorine gas.
2. The diameter of chuck indicates the maximum section of the round tube that can be processed is Φ360mm, square tube 250mm*250mm. For other profiles (H steel, I steel, L steel etc.) or selectional materials with non-standard section, please confirm with HGLaser technicians. | |||
Extensibility:Super large HMI interactive interface, with multi functions such as proces s database, graphic display,automatic fixture control, program quick editing and modification etc.
Efficiency:Equipped with a fully automatic bundling and loading system, with high automatic production efficiency.
Safety:The machine tool is equipped with fully enclosed machine tool cover, tool cover, the overall safety protection of the machine tool meets the highest international standards.
Flexibility:Modular design, can be customized according to customer requirements.
