Smart TS Series Four Chucks Heavy Duty 6kw 12kw Fiber Laser Pipe Cutter
Smart TS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.

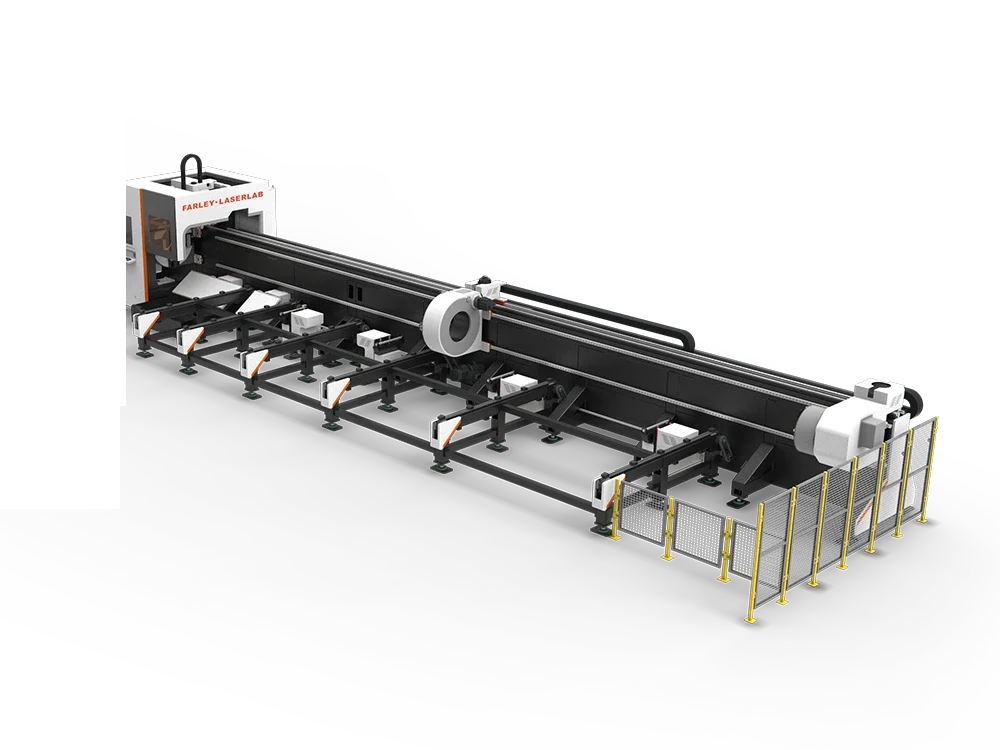

FARLEY LASERLAB AUTO: CNC Laser Pipe Cutting Machine
Smart TS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter
Smart TS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.

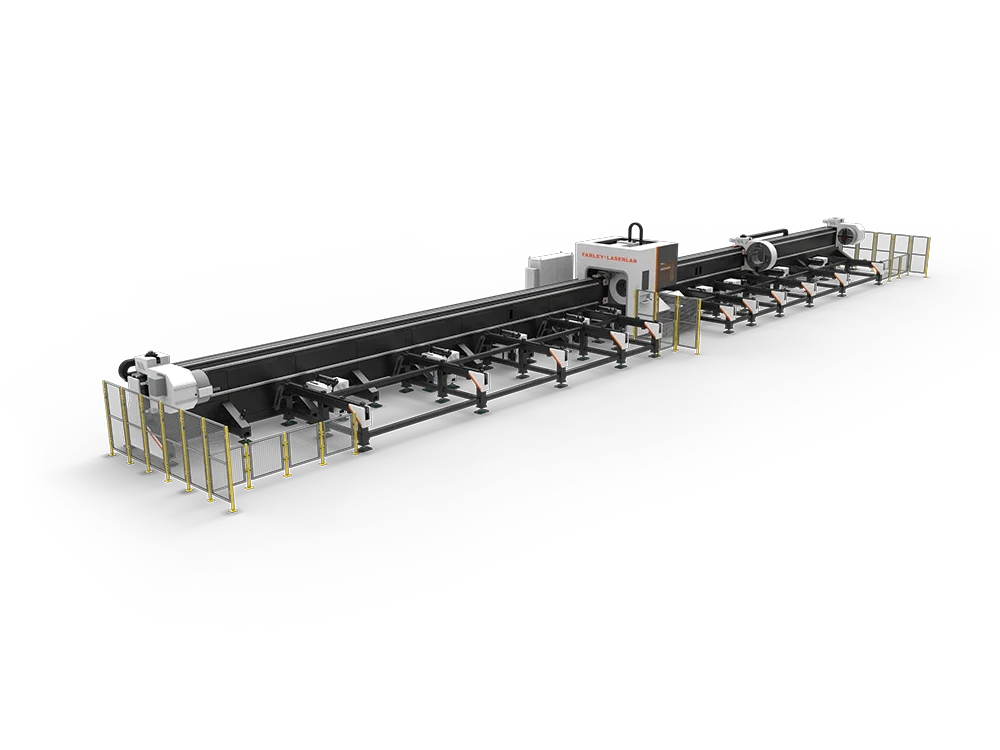

CNC Laser Pipe Cutting Machine Smart TS Series
HGSTAR Smart TS Series 4-chuck CNC laser pipe cutter (6kw/12kw) is made to international export standards, ideal for metal tube processing.
Features:
Dual independent electrical cabinets, stable operation
Meets international export standards
6kw/12kw power options
Chain-type semi-auto loading/unloading, high efficiency
4-chuck design, stable structure & high precision
Modular design, flexible model selection
CNC Laser Pipe Cutting Machine – Technical Specifications
| MODEL | TS6565-350、 TS6565-500、 TS1212-350、 TS1212-500 |
|---|---|
| Industry Applications | Metal Processing Industry, Engineering Machinery Industry, Chemical and Power Industries,Customized Production |
| Power Range | 6000W、12000W |
| Processing Tube Diameter | Round Tube：20-350 Square Tube：20-350 / Round Tube：20-500 Square Tube：20-500 |
| Tube Processing Length | 6500MM / 12000MM |
| Single Tube Cutting Length | ≤6500mm / ≤12000mm |
| Idle Running Speed | 60m/min |
| Acceleration | 0.8G |
| Chuck Rotation Speed | 150r/min |
| Chuck Load Capacity | Precision Tubes: 350 Chuck：600KG Square and Round Tubes: 350 Chuck：1200KG / 500 Chuck: 1600KG (500 Chuck supports square and round tubes only) |

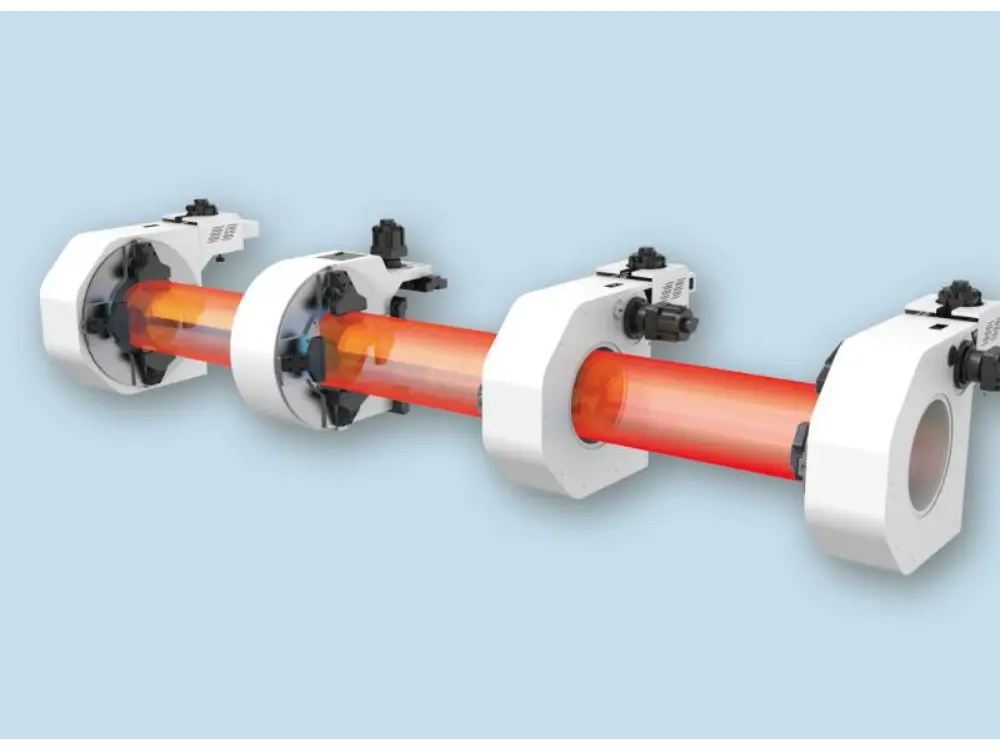

3+1 Chuck Structure
Enables 0 tailings, improving material utilization and work efficiency.

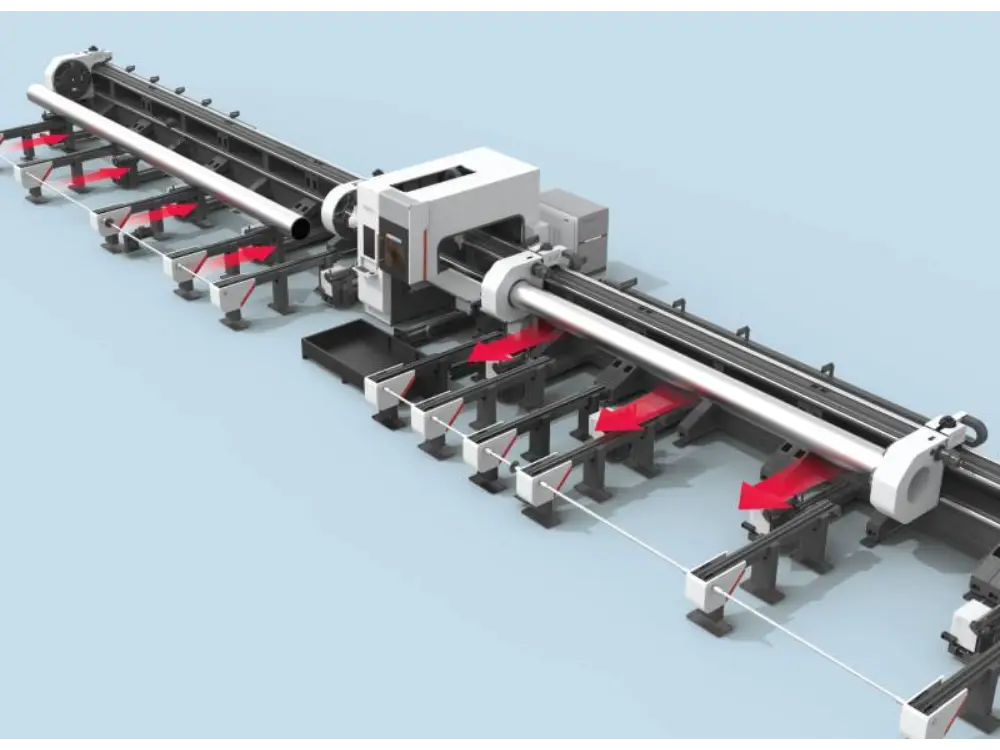

Front and Rear Chuck Division
The front chuck cuts while the rear chuck unloads, enhancing efficiency.

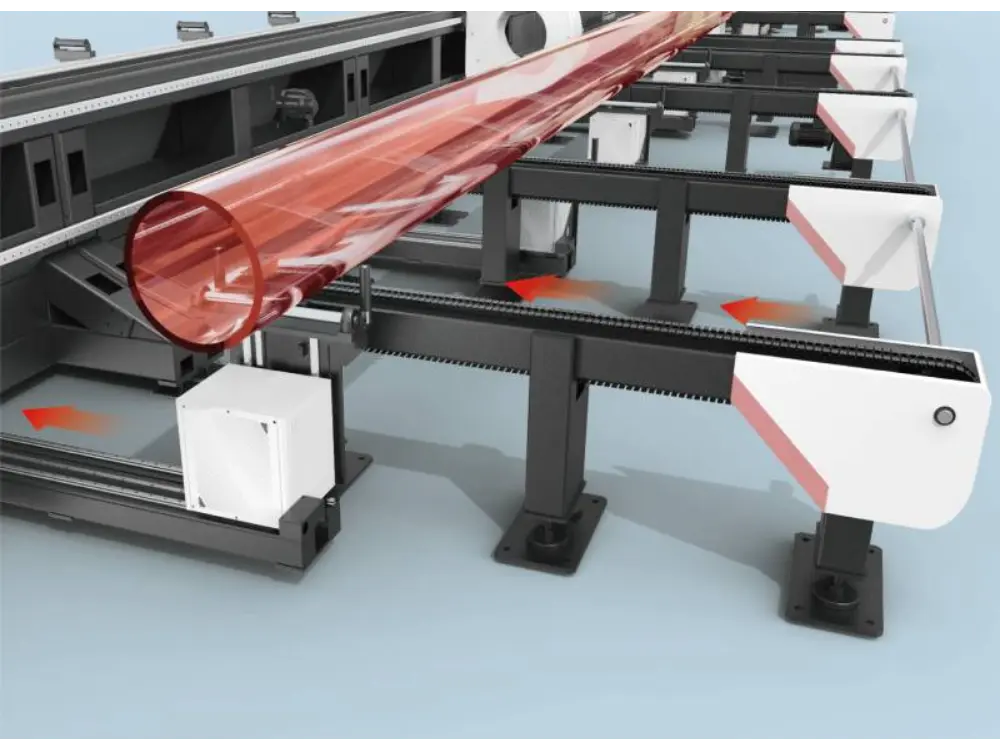

Semi-Automatic Loading and Unloading
Boosts efficiency with a flexible rack for tubes of various lengths.

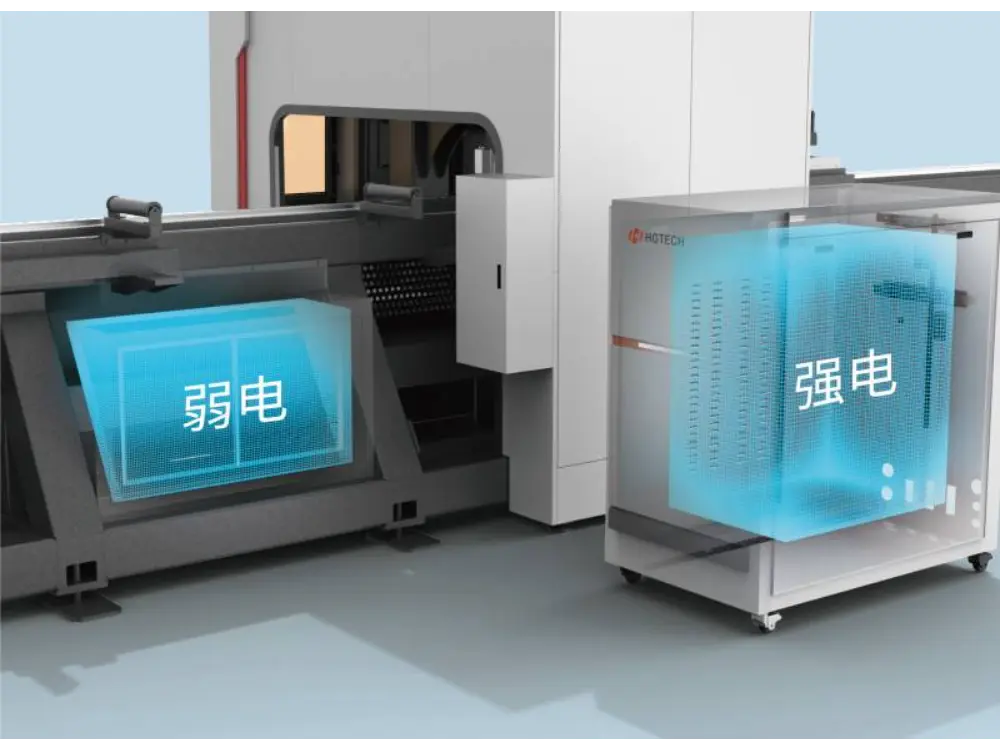

Dual Electrical Cabinet Design
Separates strong and weak currents to ensure stable operation and more efficient cutting.
