FARLEY LASERLAB AUTO: Robotic Arm Laser Cutting Machine
SR Robot Series 3D Robotic Arm Laser Cutting Machine
Farley Laserlab’s new 3D robotic arm laser cutting machine is bringing the latest technology to Australian and New Zealand Manufacturing. Farley Laserlab’s new 3D Robotic Arm Laser Cutting Machine is bringing the latest technology to Australian and New Zealand Manufacturing. Specifically designed for use in high volume laser cutting environments, the 3D Robotic Arm Laser will vastly improve your production efficiency and accuracy which will give you a superior product for your market.
Robotic Arm Laser Cutting Machine SR Robot Series
Farley Laserlab 3D robotic fiber laser cutting machine breaks foreign market monopoly in the automotive industry. It processes 0.5–6 mm thick metal and 3D auto parts, featuring high efficiency, easy operation and low maintenance cost. Equipped with ABB or Staubli robots and high-efficiency fiber laser source, it delivers high precision and speed for high-volume production.
Features:
Energy-saving fiber laser source with cost-effective performance
Equipped with ABB / Staubli robots for ±0.05mm accuracy
Processes 0.5–6mm metal sheets and auto 3D parts
Flexible multi-angle cutting, stable mass production capability
High efficiency, simple operation and low running cost
Breaks foreign monopoly in automotive 3D cutting
Robotic Arm Laser Cutting Machine – Technical Specifications
Specifically designed for use in high volume laser cutting environments, the 3D Robotic Arm Laser will vastly improve your production efficiency and accuracy which will give you a superior product for your market.
Farley Laserlab utilizes either Staubli or ABB robots which provide accuracies from +/- 0.05mm and maximum positioning speed of 30m/min.
Also using the latest in laser technology by integrating the power efficient fiber laser source, giving you the best and most cost effective technology on the market today.
3D Fiber laser cutting is defined as: multi-angle, multi-direction flexible cutting for different thickness metal-plate by specific fiber laser cutting head.
| SR 3D Robot Fiber Laser Cutting Machine | |
|---|---|
| Laser Source | Fiber 200-500W |
| Main Processing Parts | Automotive Forming Plates |
| Processing Scale | R1.5m-R1.8m |
| Max. Thickness of Cutting Board MS | 3mm |
| Max. Thickness of Cutting Board SS | 2mm |
| Max. Thickness of Cutting Board AL | 1.5mm |
Processing Capability
Performs multi-angle, multi-directional flexible cutting via dedicated fiber laser cutting head, processes metal sheets of 0.5–6 mm thickness and complex automotive three-dimensional parts
Application Scenario
Specifically engineered for high-volume continuous industrial laser cutting environments, vastly improves overall production efficiency and accuracy to deliver superior product quality
Robot Configuration
Equipped with industry-leading Staubli or ABB robots, achieves ±0.05mm high positioning accuracy, 30m/min maximum positioning speed, and supports offline programming
Cutting System
Integrates the latest power-efficient fiber laser source, works with 99.99% pure oxygen auxiliary gas to greatly enhance cutting precision, cutting speed and cross-section finish quality

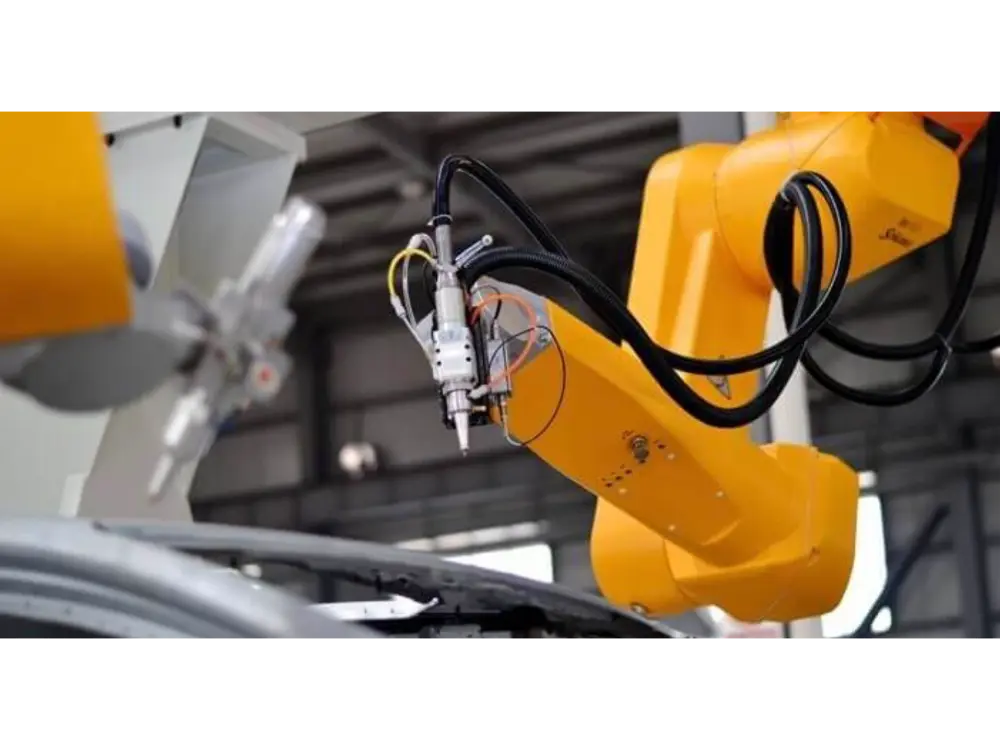

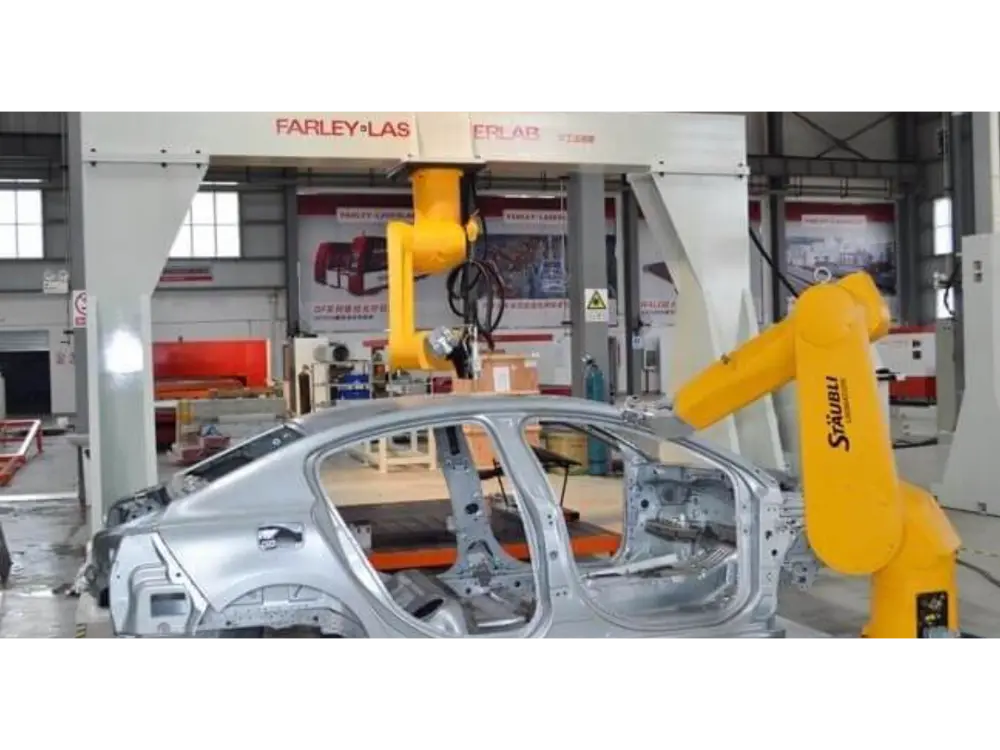

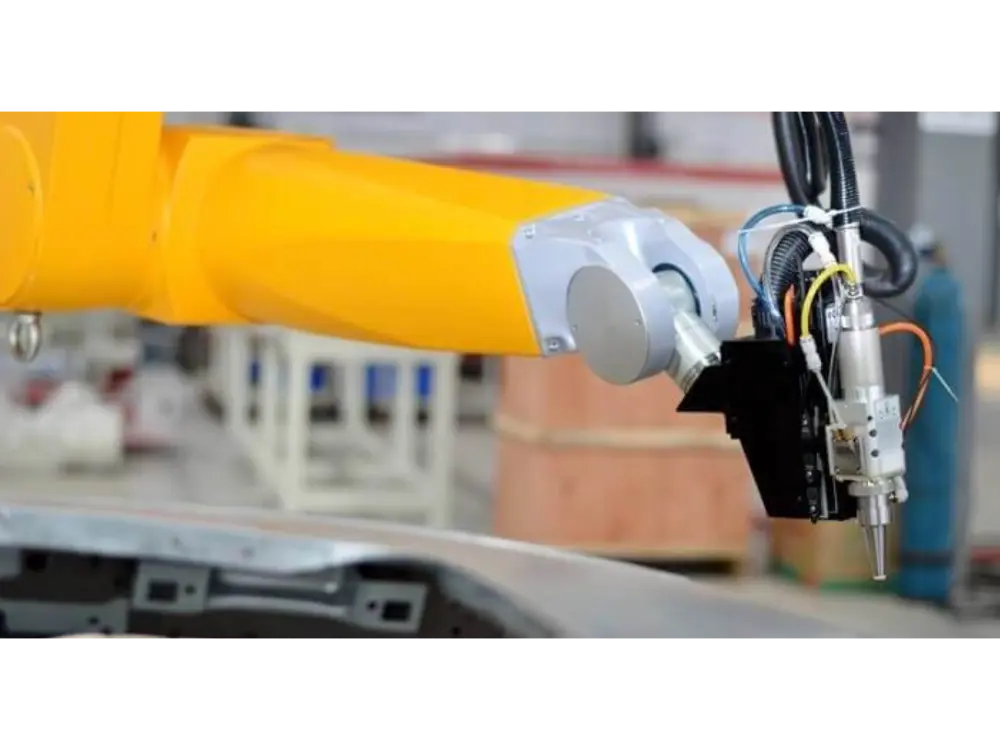

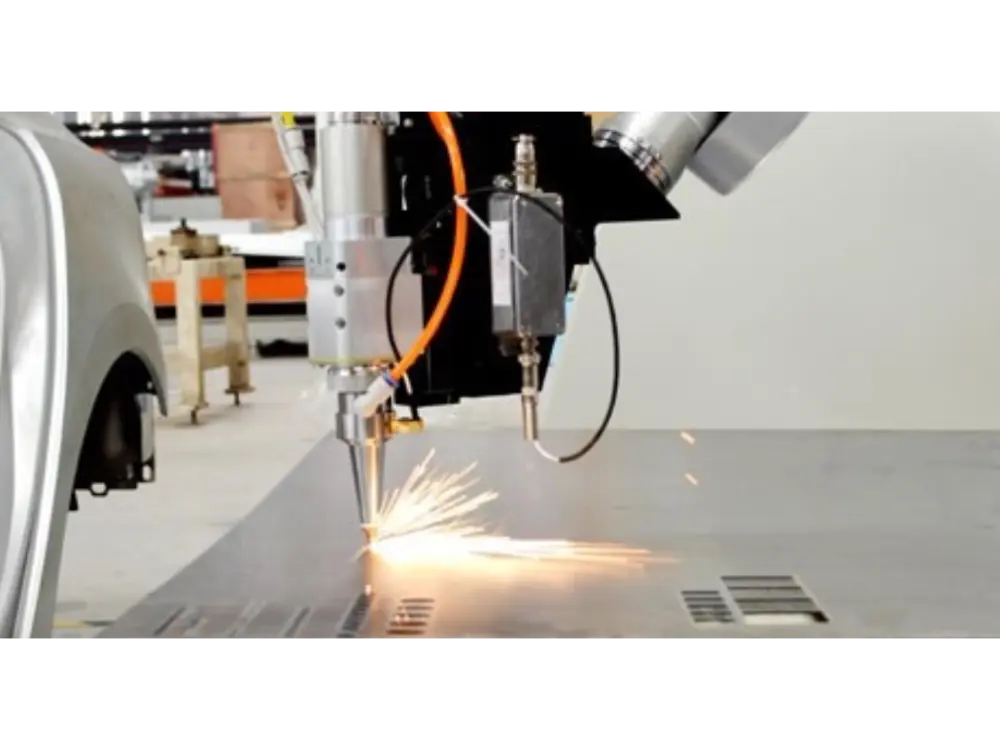

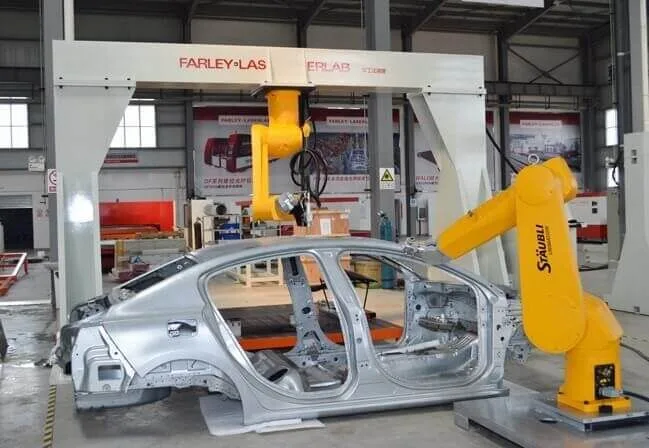

Details Display
