SMART PRO Series High Power Fiber Laser Metal Cutting Machine with Exchange Pallet
SMART PRO Series High power fiber laser metal cutting machine with exchange pallet has faster cutting speed and high power laser source (3000W, 6000W, 12000W, 20000W,30000W) compared to other cutting solutions

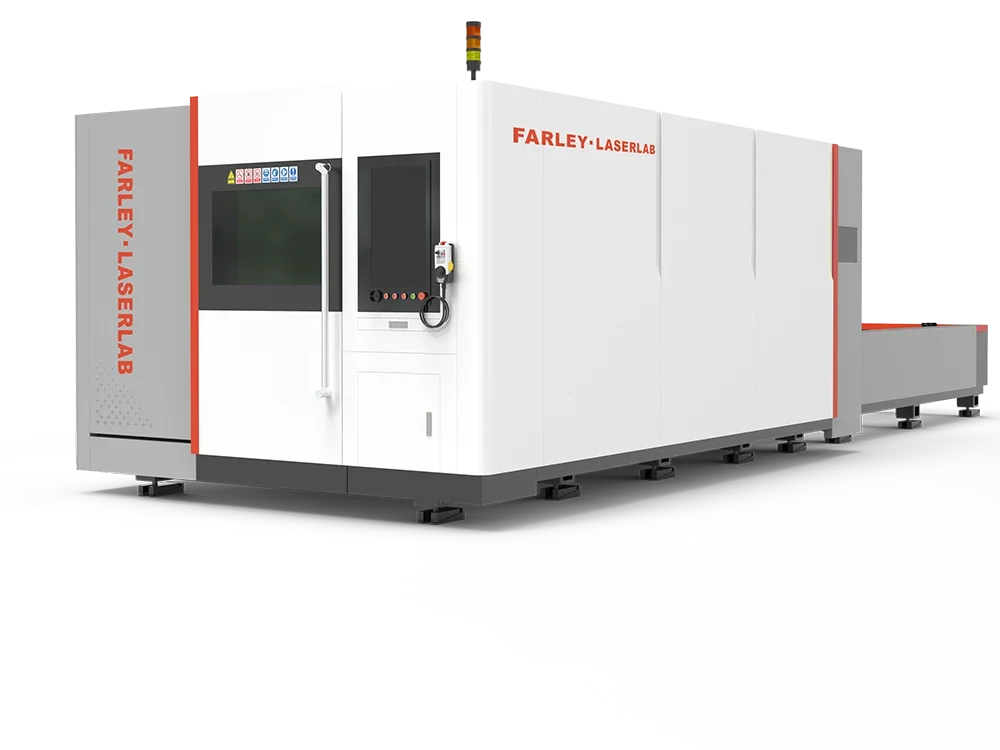

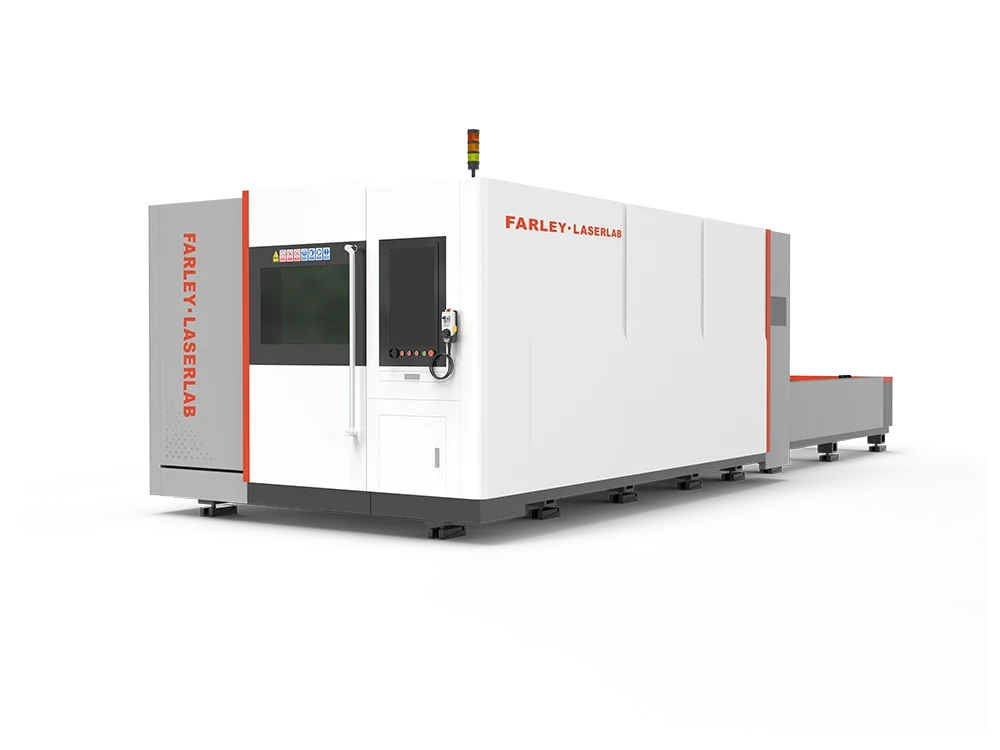

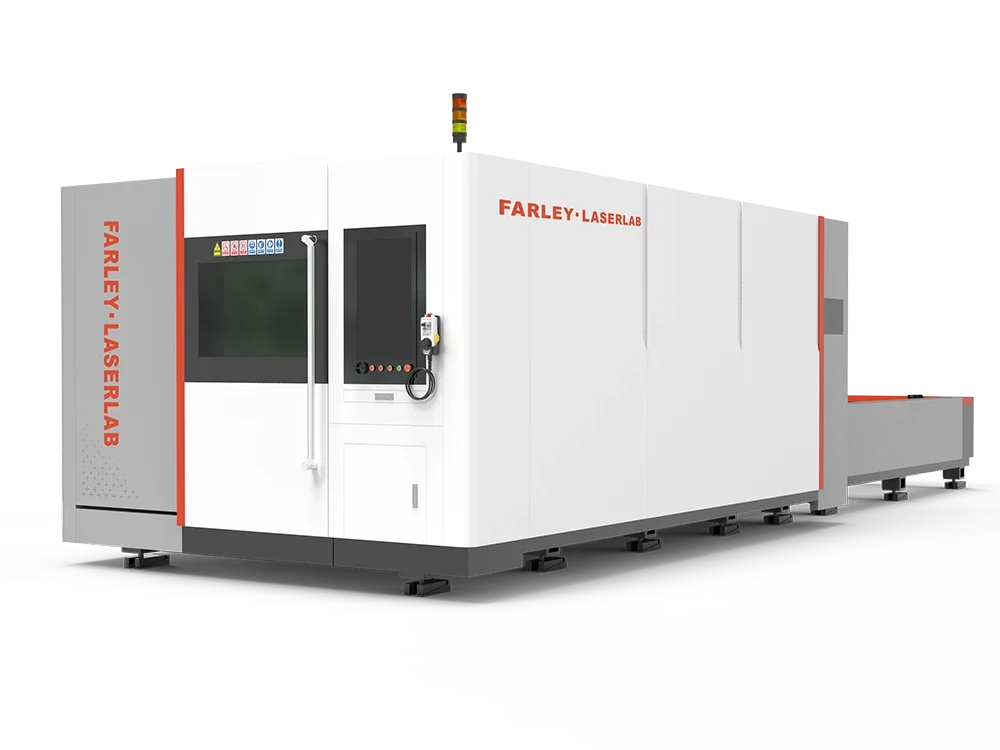

FARLEY LASERLAB AUTO: Laser Metal Cutting Machine SMART PRO Series

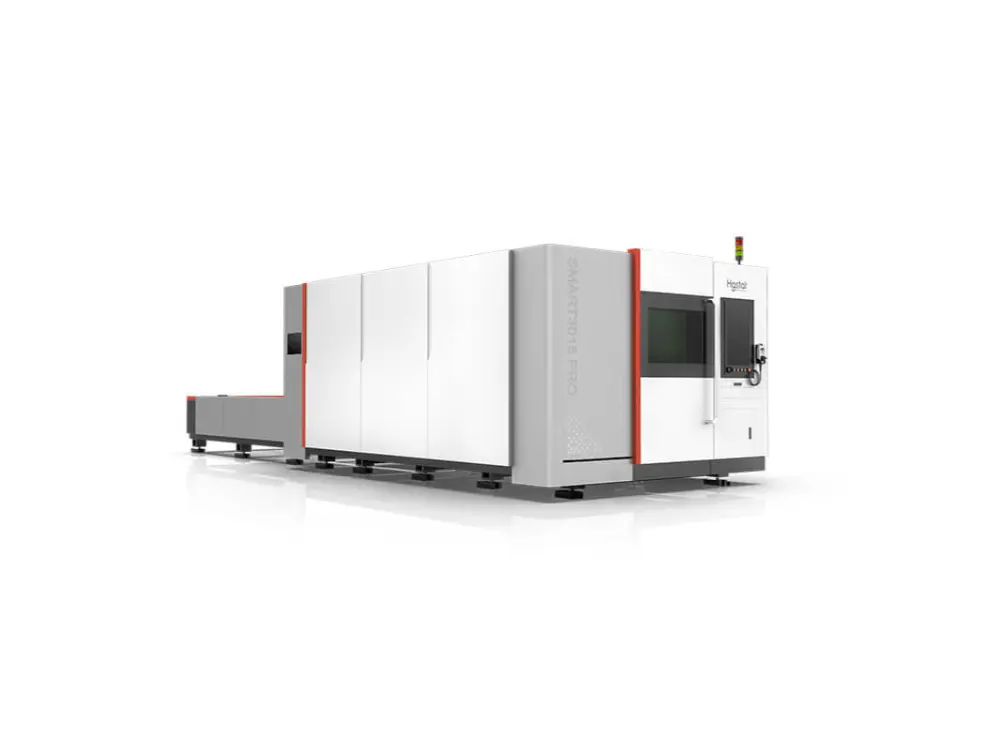

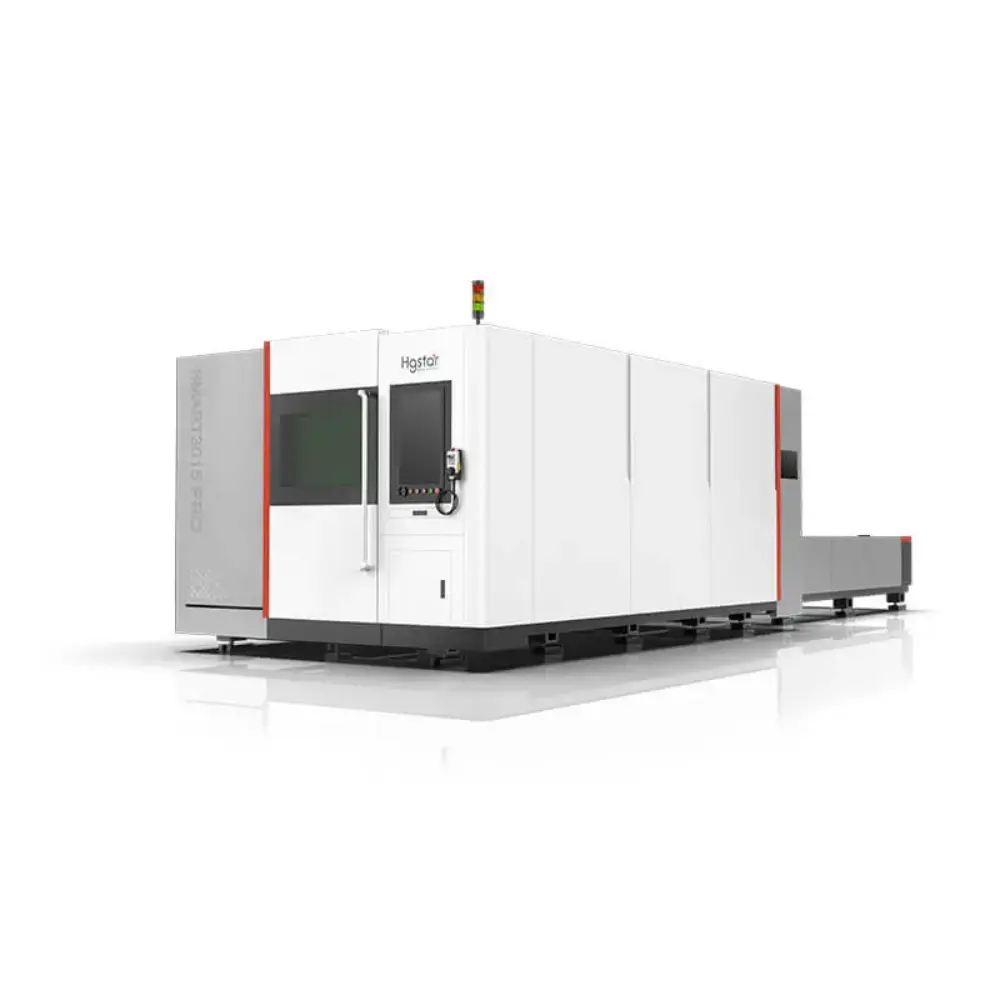

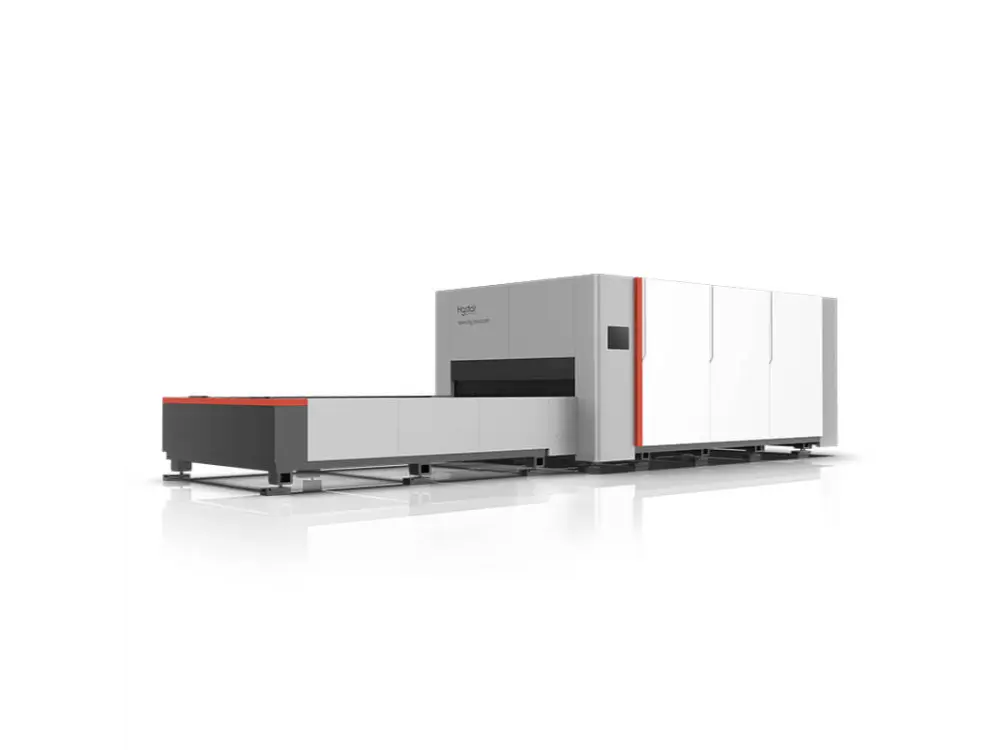

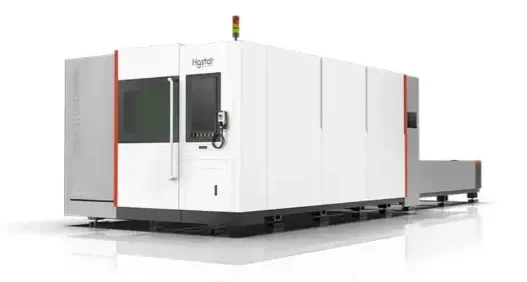

High Power Fiber Laser Metal Cutting Machine with Exchange Pallet SMART PRO Series
High power fiber laser metal cutting machine with exchange pallet has faster cutting speed and high power laser source (3000W, 6000W, 12000W, 20000W,30000W) compared to other cutting solutions, now the high power laser cutting machine for sale at affordable price.
Laser Metal Cutting Machine SMART Pro Series
This high-power fiber laser metal cutting machine is equipped with an exchange pallet and multiple high-power laser options. It features faster cutting speed and cost-effective pricing for metal cutting tasks.
Features:
Faster cutting speed than conventional cutting equipment
Multiple high-power laser sources available
Equipped with exchange pallet for efficient workflow
Affordable price with high cost performance
Laser Metal Cutting Machine – Technical Specifications
| Model | SMART Pro |
|---|---|
| Cutting Area (L×W) | 3050mm×1530mm; 4000mm×2200mm; 6000mm×2500mm; 8000mm×2500mm; 10000mm×2500mm; 12000mm×2500mm; |
| Laser Source | 3000W, 6000W, 12000W, 20000W,30000W |
| CNC System | FSCUT 2000 |
| Laser Cutting Head | BM111 F125mm |
| Max Moving Speed | 120m/min, Acceleration is 1.2G |
| Position Accuracy (X and Y axis) | ±0.02mm |
| Reposition Accuracy (X and Y axis) | ±0.03mm |
| Power Supply Requirement | 380V 50/60Hz 45KVA |
Security and non-pollution
With a completely enclosed design;The observation window is made of laser-protective glass that meets European CE standards.
Without Manual Focusing, Autofocus Laser Cutting Head
The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

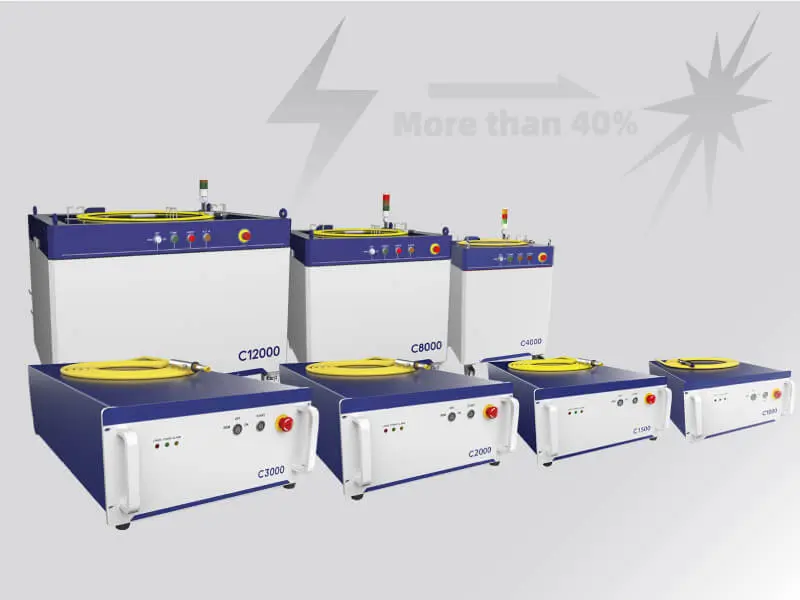

Fiber Lasers Source
Raycus Multi-module CW Fiber Lasers range in power from 1,000W to 6000W and feature high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation.
Laser Cutting Machine Welded Bed
The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.
Servo and Motor
JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.
