H Beam Laser Cutting Machine H-Shaped Steel Robot 3D Vision-Cutting Workstation
As specialized processing equipment for structural steel, this product is suitable for the three-dimensional cutting of various profiles in the steel structure industry (such as H-beams, channel steel, angle steel, and T-beams).
FARLEY LASERLAB AUTO: H-Beam Laser Cutting Machine
H Beam Laser Cutting Machine
H-Shaped Steel Robot 3D Vision-Cutting Workstation
As specialized processing equipment for structural steel, this product is suitable for the three-dimensional cutting of various profiles in the steel structure industry (such as H-beams, channel steel, angle steel, and T-beams).
It is widely used in the processing industry of steel components, such as various large-span industrial plants and prefabricated buildings in the steel structure industry, engineering machinery, the power industry, the shipbuilding (ship frame) industry, the iron and steel industry, the road and bridge industry, as well as warehousing and heavy equipment.
H Beam Laser Cutting Machine H-Shaped Steel Robot 3D Vision-Cutting Workstation
This product can achieve efficient cutting of grooves and irregular sections for multiple types and shapes, and supports multi industry drawing analysis, including dxf, step, gen, and spd formats.
Features:

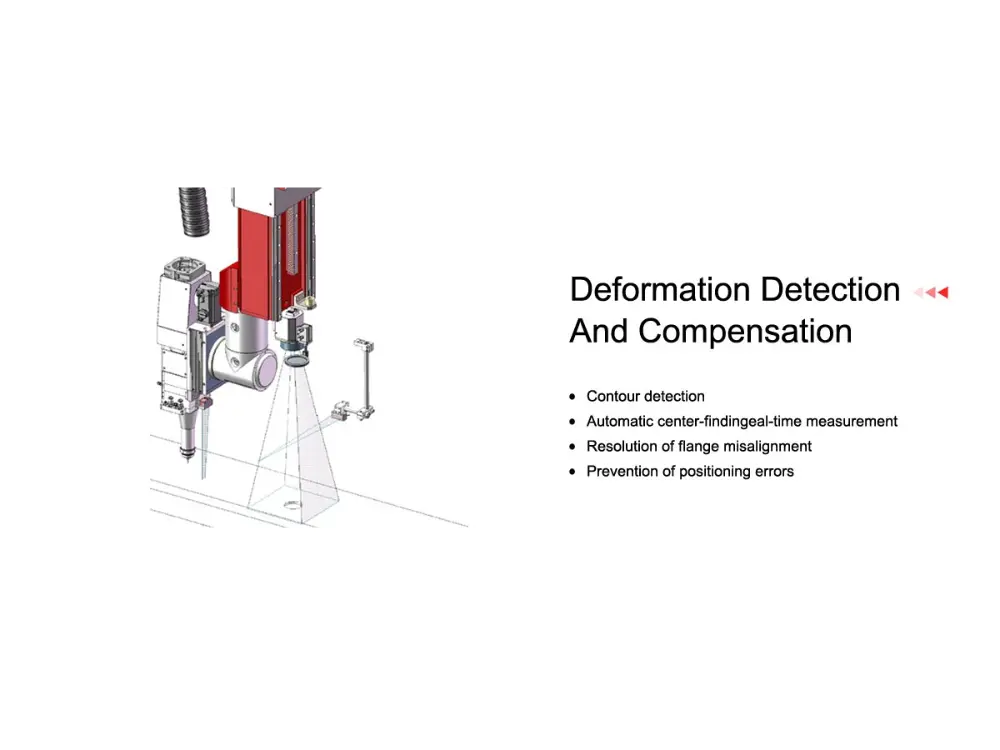

Intelligent Deviation Adaptation

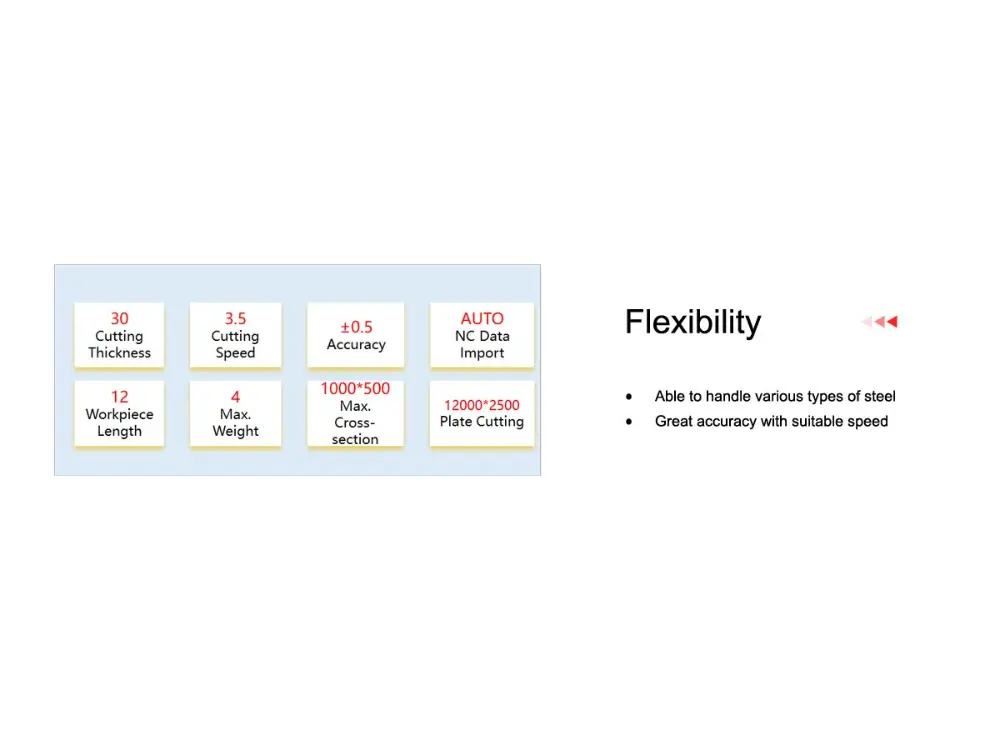

Diversified Processing Capabilities
Multi-Format Drawing Support

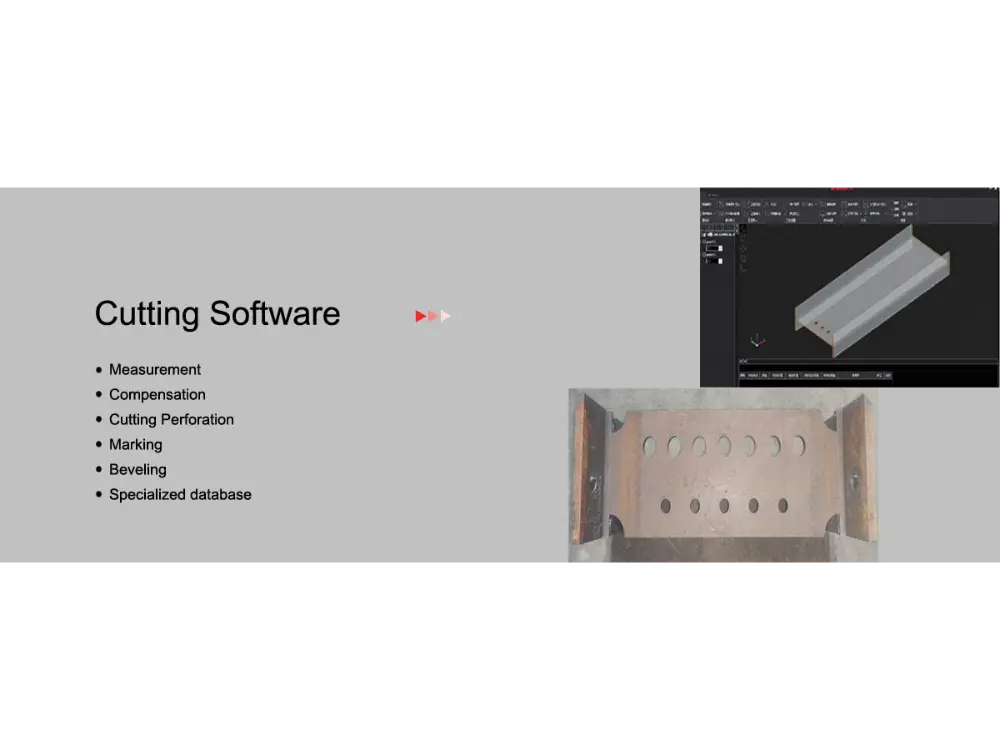

Simplified Operation

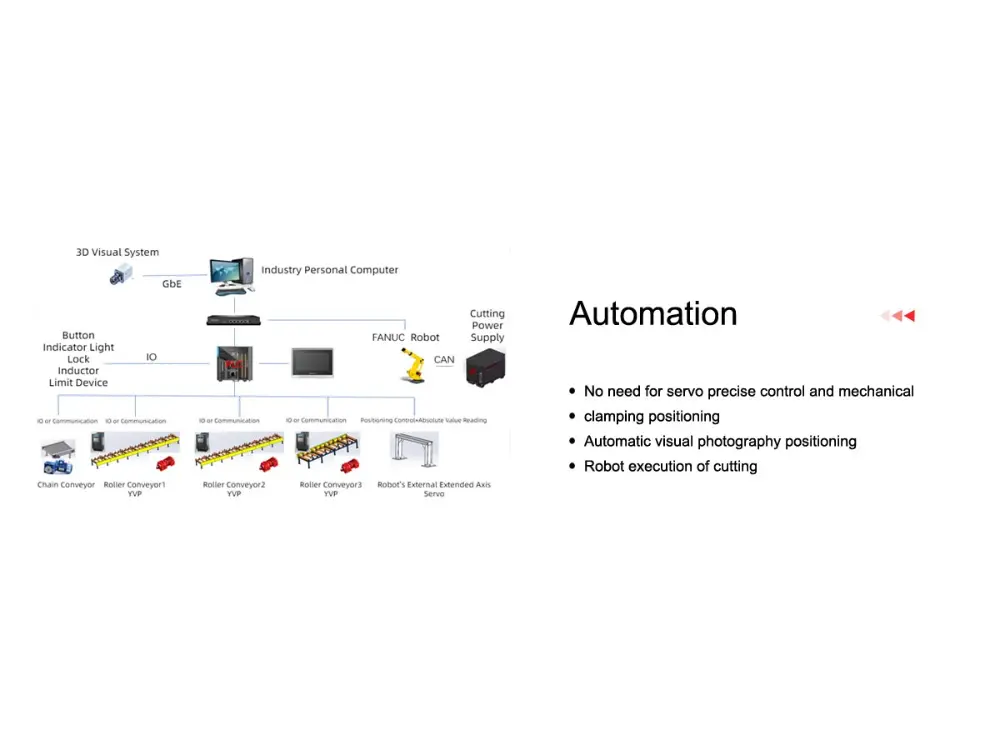

Seamless Production Line Automation
Automatic Workpiece-Drawing Matching
H Beam Laser Cutting Machine – Technical Parameters
| Project | Technical Parameters | |
|---|---|---|
| Basic Parameters | Laser Power | 6000-12000W |
| Focal Length | F250 with automatic focusing adjustment | |
| CNC System | FARLEY | |
| Display Screen | 23.6-inch touch screen (supporting mouse operation) | |
| Processed Profile Types | H-beams, channel steels, angle steels, etc. | |
| Functions | Special-shaped end cutting and bevel cutting | |
| System Composition | Robot System | Side-mounted Robot + Gantry 7th Axis |
| Positioning System | Structured Light Industrial 3D Camera | |
| Workpiece Conveyance | Roller Conveyor | |
| Waste Disposal | Automatic Slag Removal Machine | |
| Processing Capability | Profile Dimension for Steel Processing | Width H≤1000mm |
| Height B≤500mm | ||
| Length L≤12000mm | ||
| Cutting Thickness (Carbon Steel O2) | Maximum Vertical Cutting：20mm | |
| Bevel Cutting Range | 0-45° bevel | |
| Robot Parameters | FANUC Robot Arm Span | 1650mm |
| Robot Load Capacity | 10kg | |
| Seventh Axis Travel | 2500mm | |
| Robot Positioning Accuracy | 0.1mm | |
| Visual Positioning Accuracy | 0.1mm | |
| Linked Positioning Speed | 60m/min | |
Extended Functions
Industry Application

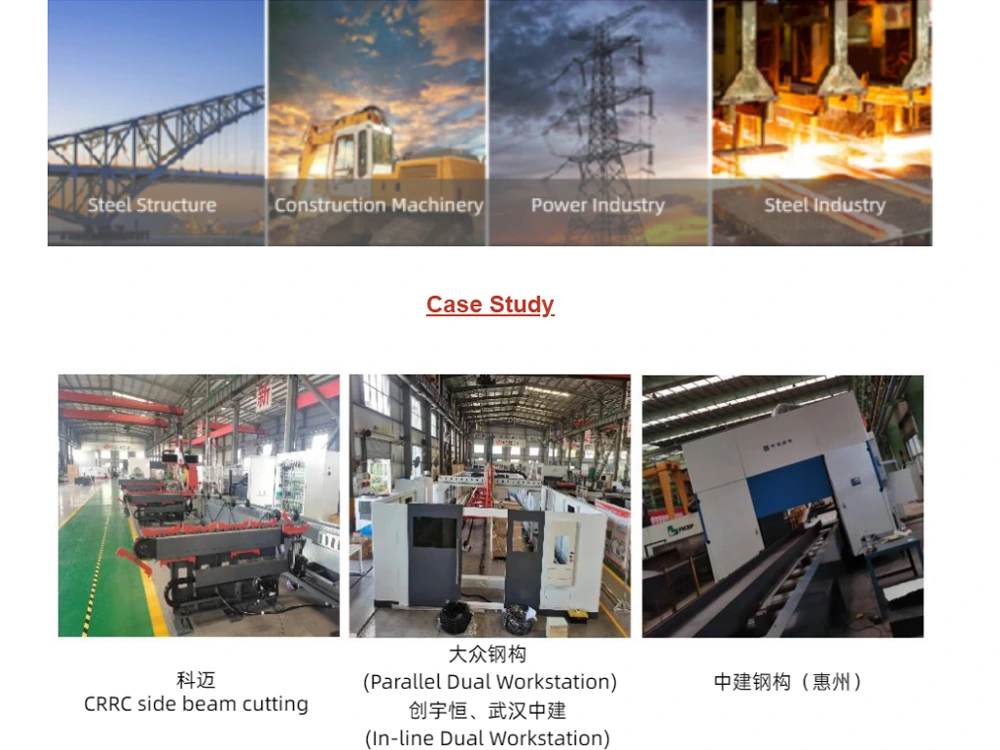

Intelligent equipment for laser cutting of structural steel is primarily applied in the steel structure industry, demonstrating excellent processing results for I-beams, H-beams, channel steel, and angle steel. It can achieve beveling, cutting, punching, and marking processing for the flange and web of H-beams, and can perform rootless cutting for overwelding holes or locked joints. Automated equipment can be integrated with assembly welding equipment to form an automatic steel processing line, reducing labor and significantly enhancing the efficiency of steel processing.
