3D 5-Axis Welding And Cutting SF Series
The SF series of 3D five-axis laser cutting machines are designed for customers in the automotive, mould, home appliance, engineering machinery, hardware, medical equipment, fitness equipment and other fields. They are characterised by high precision, high speed, low cost of ownership
FARLEY LASERLAB AUTO: 3D 5-Axis Welding And Cutting Machine
3D 5-Axis Welding And Cutting SF Series
The SF series of 3D five-axis laser cutting machines are designed for customers in the automotive, mould, home appliance, engineering machinery, hardware, medical equipment, fitness equipment and other fields. They are characterised by high precision, high speed, low cost of ownership, simple operation and maintenance, and can meet the needs of different production schedules.
3D 5-Axis Welding And Cutting SF Series
The 3D 5-Axis laser machine series is characterized by high precision, high speed, high efficiency, high stability, leading technology in the world, compact structure, simple operation and easy maintenance. The products are widely used in automotive, mould, household appliances, engineering machinery, ships, hardware, medical equipment, fitness equipment and other fields to meet the requirements of various metal workpiece surface cutting and trimming.
Features:
Four-High Core Performance
Compact & Space-Efficient Design
Superior to Competing Solutions
World-Leading 5-Axis Technology
User-Friendly & Low-Maintenance
Wide Industrial Versatility
3D 5-Axis Welding And Cutting SF Series – Technical Specifications
| Item | Main Technical Parameters | ||||||
|---|---|---|---|---|---|---|---|
| Equipment Model | SF3015 | SF3020 | SF4020 | SF4025 | SF6020 | SF6025 | |
| Laser | Laser Power | 2000~6000W | |||||
| Axis Travel | X-axis Travel | 3000mm | 3000mm | 4000mm | 4000mm | 6000mm | 6000mm |
| Y-axis Travel | 1500mm | 2000mm | 2000mm | 2500mm | 2000mm | 2500mm | |
| Z-axis Travel | 680mm/800mm/1000mm/1200mm/1500mm | ||||||
| A-axis Travel (Swing Axis) | ±135° | ||||||
| C-axis Travel (Rotary Axis) | ±n×360° | ||||||
| U-axis Travel (Floating Axis) | ±12.5mm | ||||||
| Accuracy | X/Y/Z-axis Positioning Accuracy | ±0.03mm | |||||
| X/Y/Z-axis Repeat Positioning Accuracy | ±0.02mm | ||||||
| A/C-axis Positioning Accuracy | 0.015° | ||||||
| A/C-axis Repeat Positioning Accuracy | 0.005° | ||||||
| Speed | X/Y/Z-axis Max. Positioning Speed | 50m/min~100m/min | |||||
| A/C-axis Max. Positioning Speed | 720°/s | ||||||
| X/Y/Z-axis Max. Acceleration | 0.5G~1.0G | ||||||
| A/C-axis Max. Acceleration | 5400°/s² | ||||||
| Power Supply Parameters | Phase | 3 | |||||
| Rated Power Voltage | 380V | ||||||
| Frequency | 50Hz | ||||||
| Total Power Supply Protection Class | IP54 | ||||||
Technical Advantages

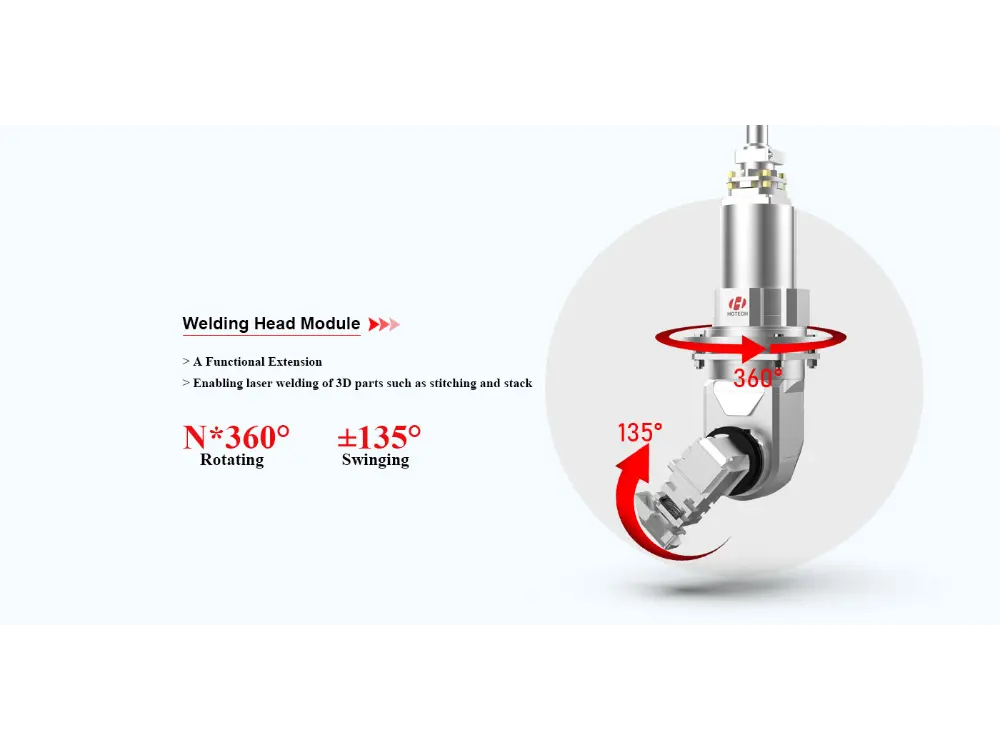

- ExtensibilityIn addition to 3D cutting of workpieces, the machine can also be used for flat cutting and can be equipped with welding modules for welding functions to meet different customer needs.
- StabilityThe double-drive gantry structure provides high stability and guarantees long-term high-speed, high-precision and stable cutting.
- SafetyThe machine is equipped with a fully sealed laser protection room, with a light curtain to ensure the safety of personnel in the working table area, and the overall safety protection of the machine complies with CE international safety standards.
- EconomicalWorking width: X-axis 3000~6000mm, Y-axis 1500~4500mm, Z-axis 680~1500mm, etc.The table is available in rotary, translating or fixed versions
Industry Cases
In October 2022, the 3D Five-Axis laser cutting intelligent equipment of FARLEY LASERLAB’s intelligent manufacturing business ushered in the delivery of breaking 200 units in the thermoforming industry.
With the third generation of self-developed lightweight 3D Five-Axis cutting head, the market share steadily ranks the first in China.
