AUTOBOT3015 auto thermal forming parts 3D laser cutting machine
AUTOBOT3015 auto thermal forming parts 3D laser cutting machine is a kind of 3D 5 axis laser manufacture equipment developed specially for auto thermal forming section. It mainly solves the problems of hole cutting and trimming of thermal formed parts. It is characterized by high precision, fast speed
FARLEY LASERLAB AUTO: AUTOMATED 3D 5-Axis Fiber Laser

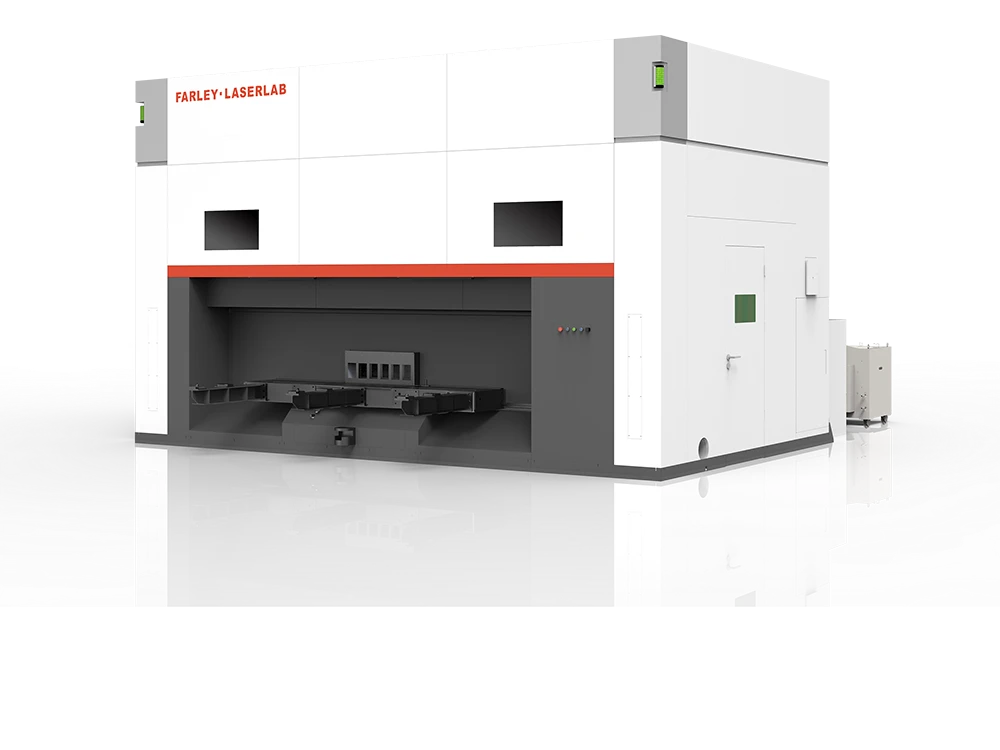

AUTOBOT 3015 Auto Thermal Forming Parts 3D Laser Cutting Machine
AUTOBOT3015 auto thermal forming parts 3D laser cutting machine is a kind of 3D 5 axis laser manufacture equipment developed specially for auto thermal forming section. It mainly solves the problems of hole cutting and trimming of thermal formed parts. It is characterized by high precision, fast speed, good dynamic performance, low use cost, simple operation and maintenance, and is suitable for batch production.

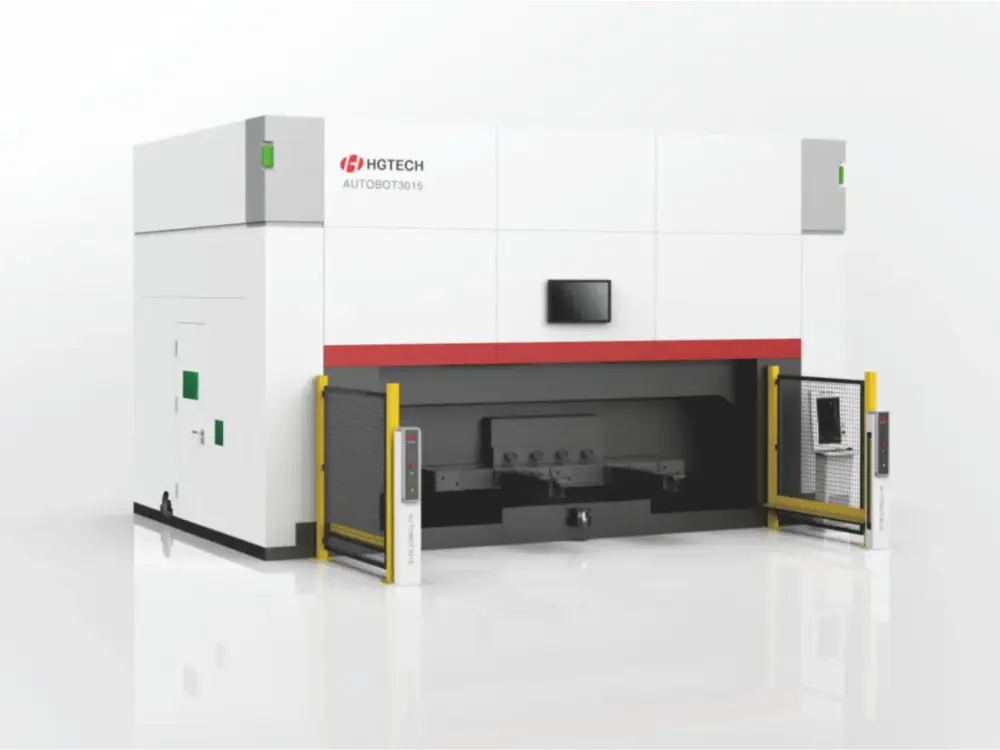

Auto Thermal Forming Parts 3D Laser Cutting Machine AUTOBOT 3015
It is a kind of laser processing equipment specially developed for automobile hot forming parts. It mainly solves the problem of cutting holes and trimming of hot forming parts. It is characterized by high precision, fast speed and good dynamic performance.
Features:
Low Operating Cost
Superior Processing Performance
Easy Operation & Maintenance
Advanced 3D 5-Axis Technology
Intelligent Laser Cutting Management System
Auto Thermoforming Specialized Design
AUTOBOT 3015 Auto Thermal Forming Parts 3D Laser Cutting Machine – Technical Specifications
| MODEL | AUTOBOT3015 | ||
|---|---|---|---|
| Wokring Range | Work Table | ||
| Working Range (Length * Width) | 3000mm * 1500mm | Rotation diameter: 4000mm | |
| X-AXIS | 3000mm | Rotation Work Table | Side max. load: 400kg |
| Y-Axis | 1500mm | Min shifting time: <2.3s | |
| Z-Axis | 680mm | Power | |
| A-Axis | ±135° | Phase No. | 3 |
| C-Axis | ±n*360° | Rated Voltage | 380V |
| Accuracy | Frequency | 50Hz | |
| X/Y/Z Axis Position Accuracy | 0.08mm | Protection Level | IP54 |
| X/Y/Z Axis Repeat Accuracy | 0.03mm | Weight & Size | |
| A/C Axis Position Deviation | 0.015° | Net Weight | <16000kg |
| A/C Repeat Accuracy | 0.005° | Space Size (Length * Width * Height) | 8500 * 7600 * 4200mm |
| Speed | |||
| X/Y/Z Axis Max Speed | 100 m/min | A/C Axis Simultaneous Max Acceleration | 60 rad/s2 |
| A/C Axis Max Speed | 540 °/s | Dynamic Axis Range | +12.5mm |
| X/Y/Z Axis Simultaneous Max Acceleration | 10 m/s2 | ||

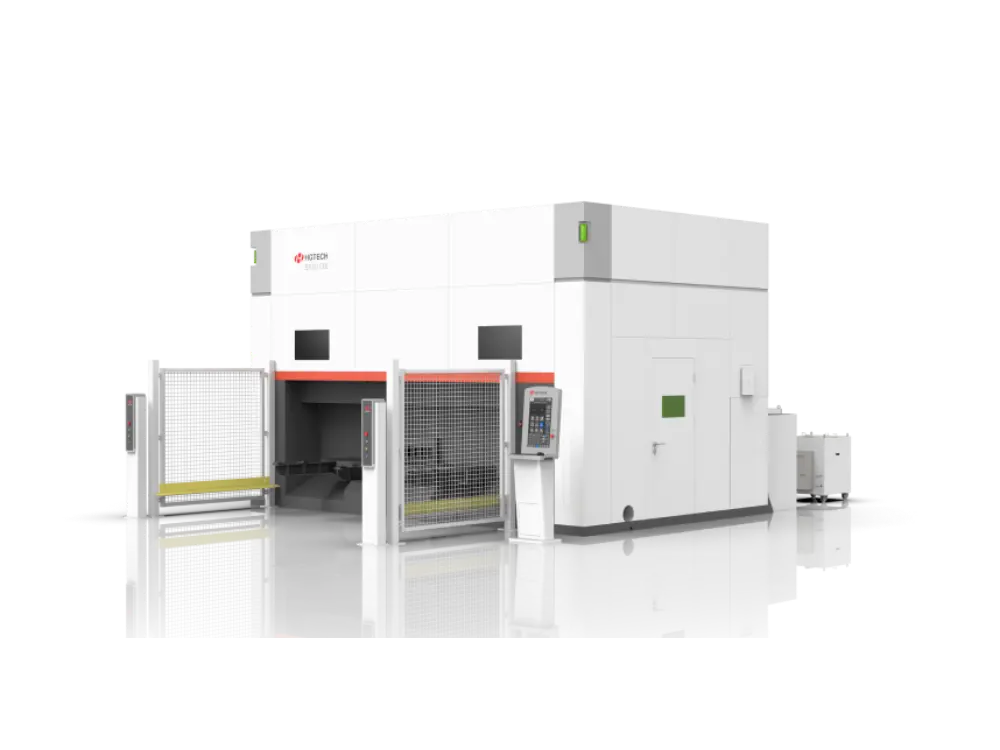

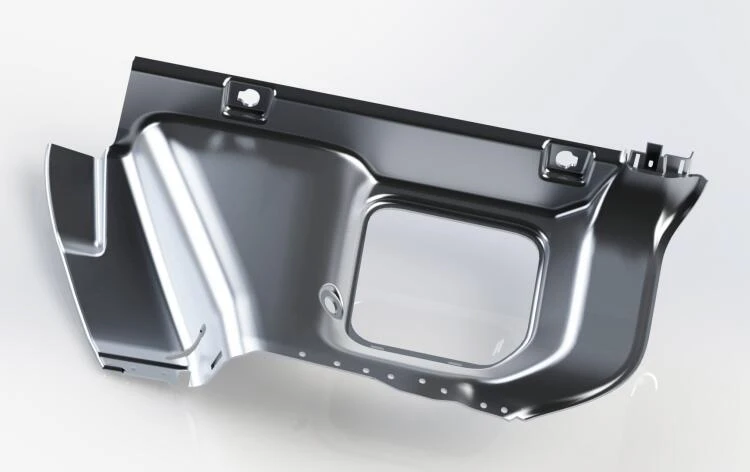

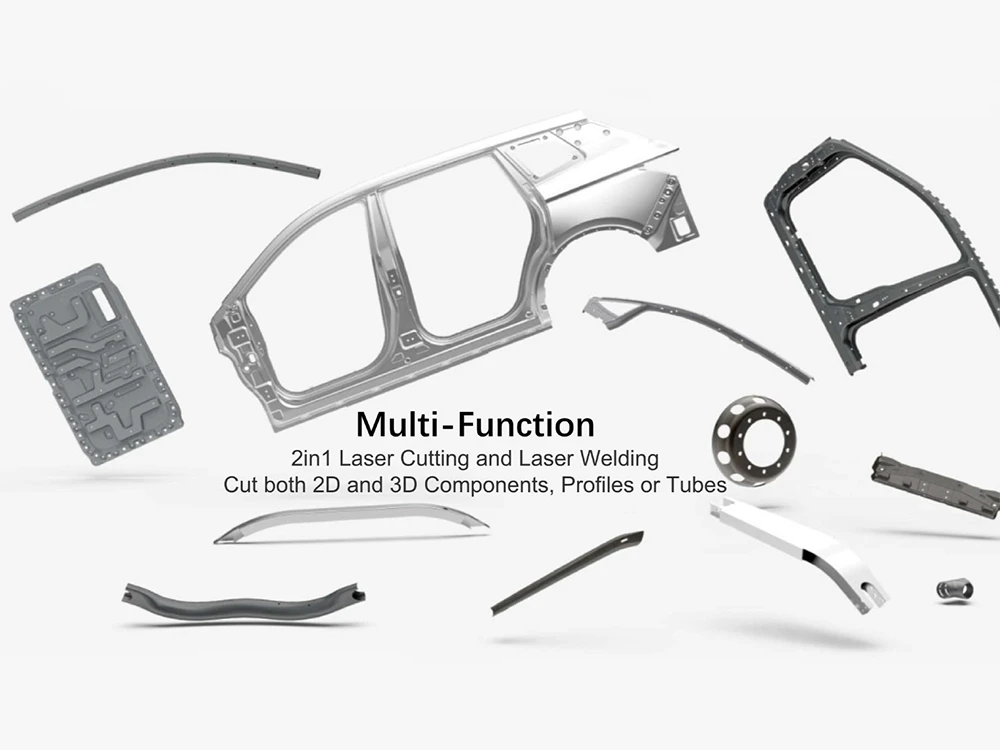

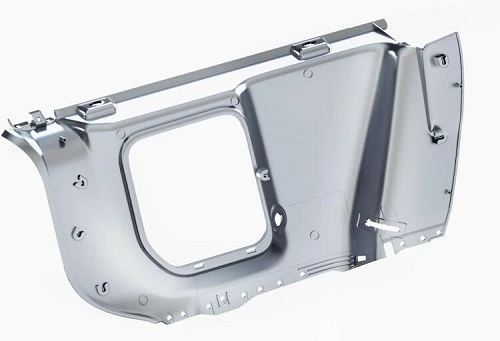

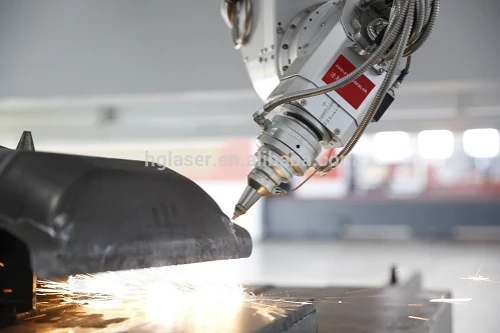

Auto Thermal Forming Parts-3D Laser Cutting
3D 5 axis laser manufactureequipment developed specially for auto thermal forming section, mainly used for hole boring & edge cutingfor high-strength steel with higher precision, higher speed and better dynamic performance. Assembled withhigh performance rotation work table, can meet the efficiency in auto section.

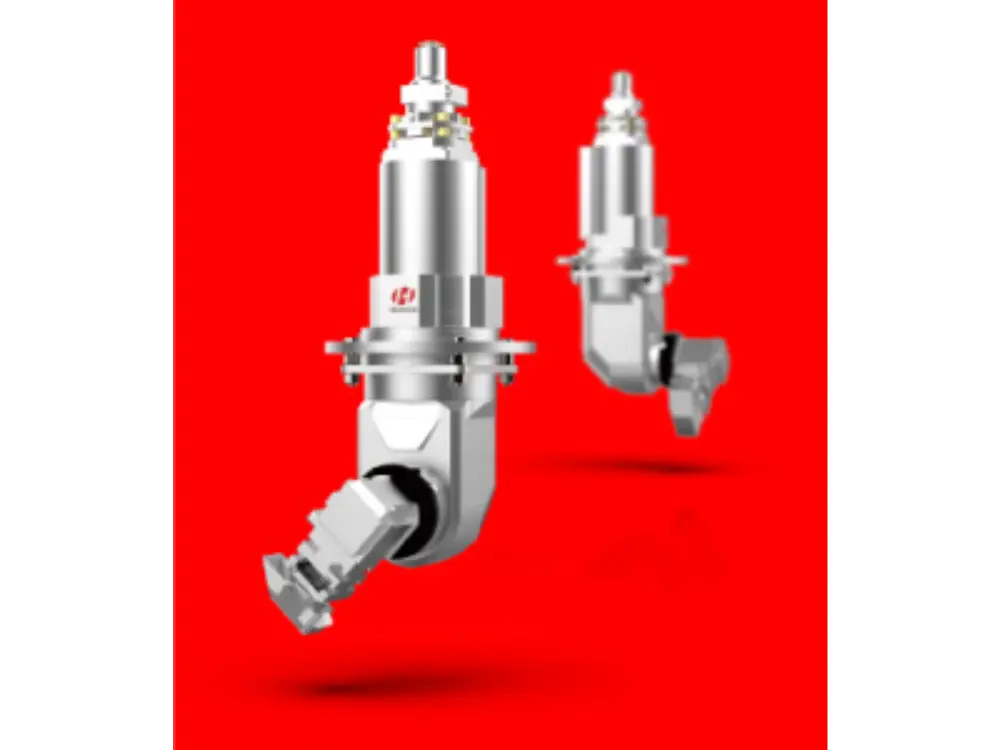

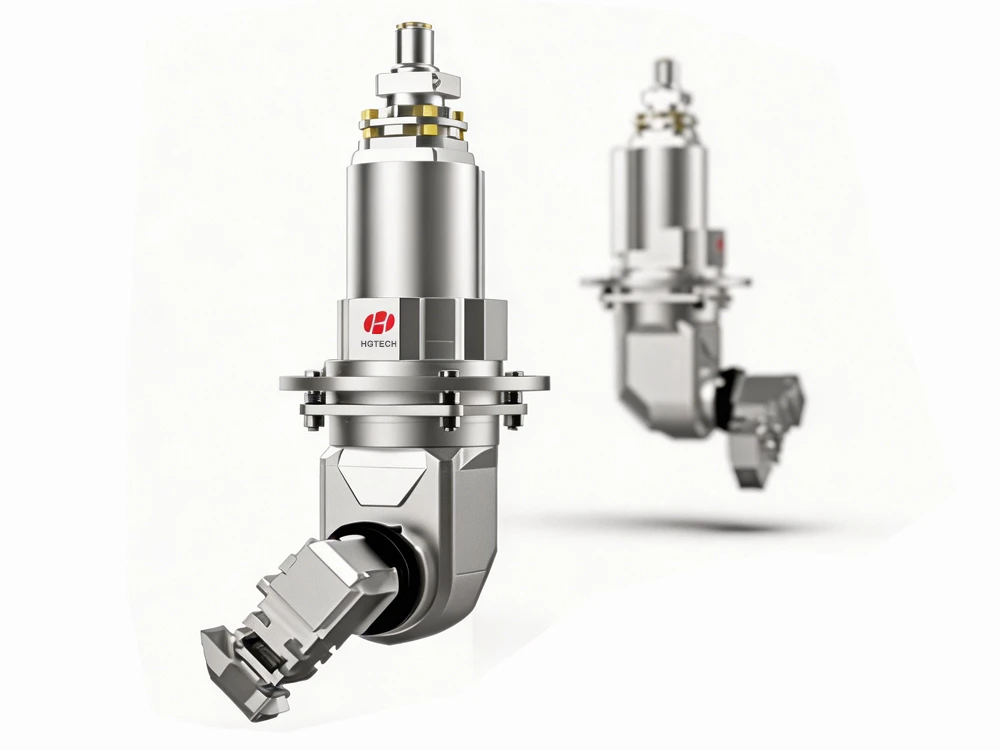

Welding Head Module
The 3D 5-Axis welding head is a functional extension of the 3D 5-Axis fiber cutting head. Without replacing the laser and the guiding fiber, the follower module on the cutting head can be replaced with a welding module to complete the transition from 3D cutting to 3D welding, enabling laser welding of 3D parts for general functional needs such as stitching and stack welding. The materials processed include carbon steel, stainless steel, aluminium alloys, titanium alloys, Sawyer alloys, etc.

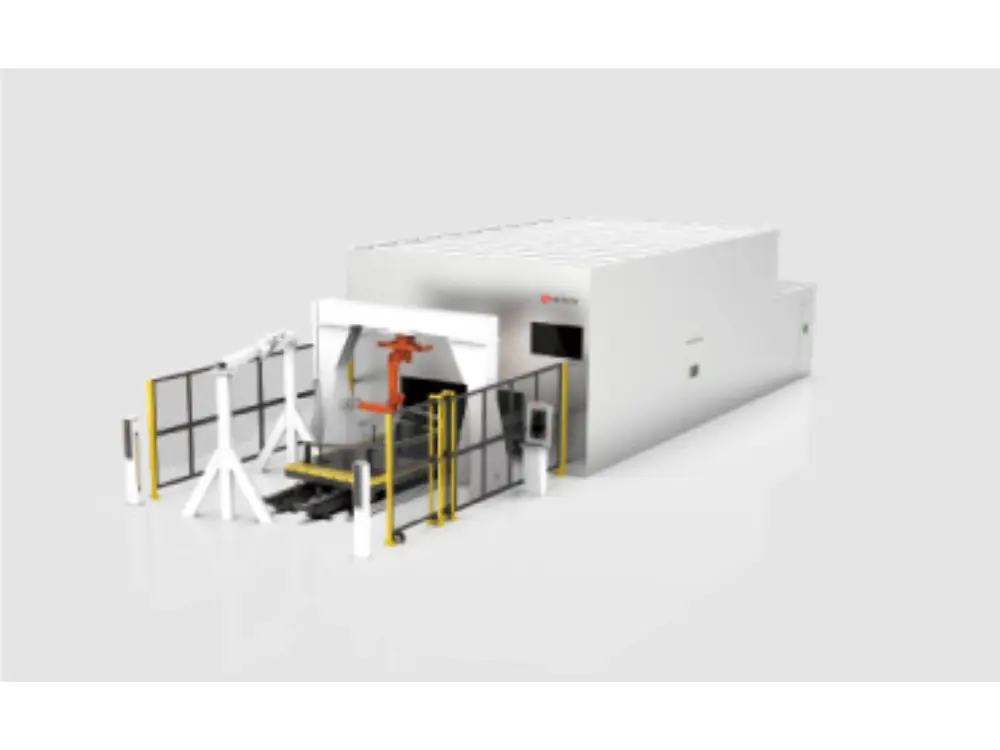

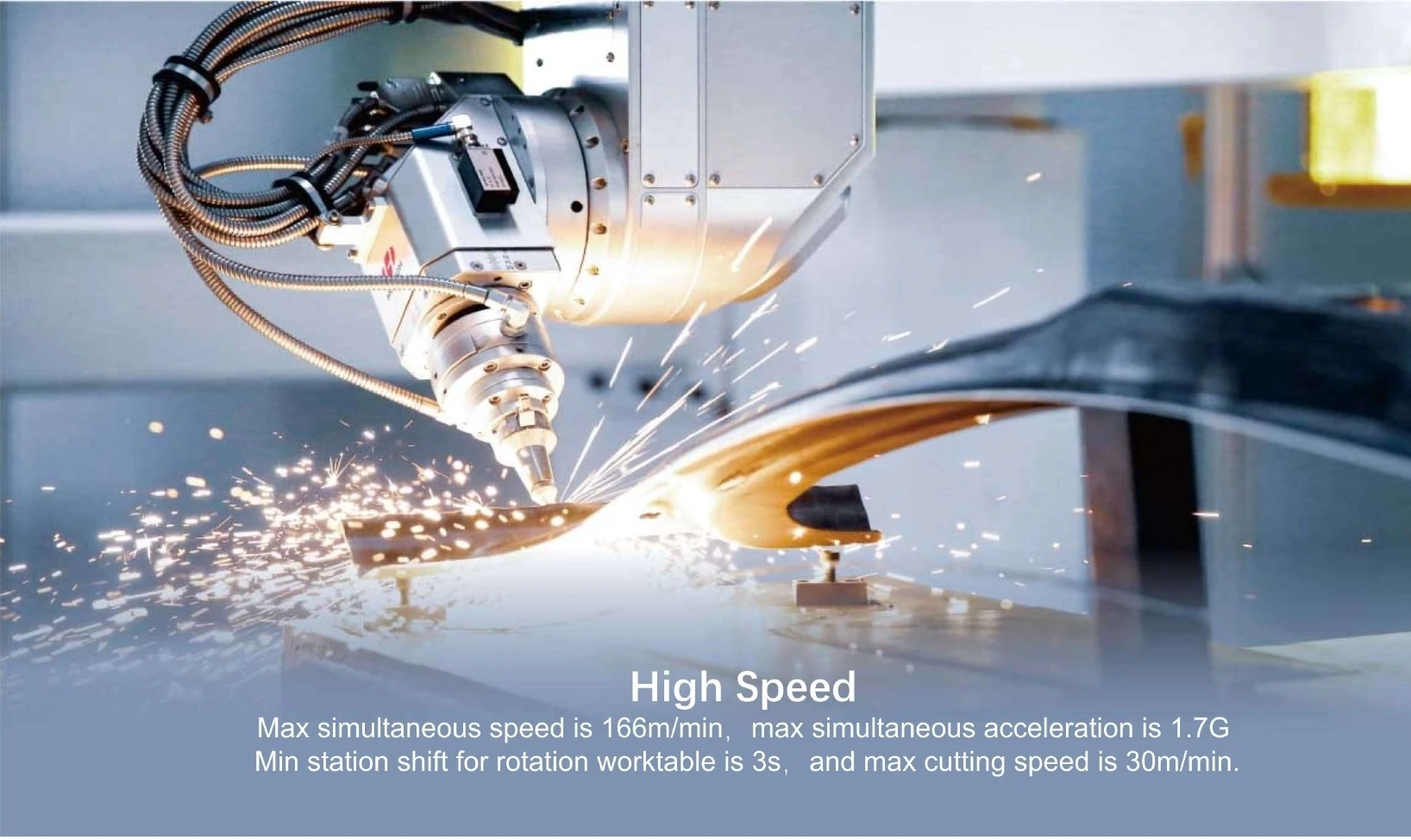

Autobot 3015 High Speed

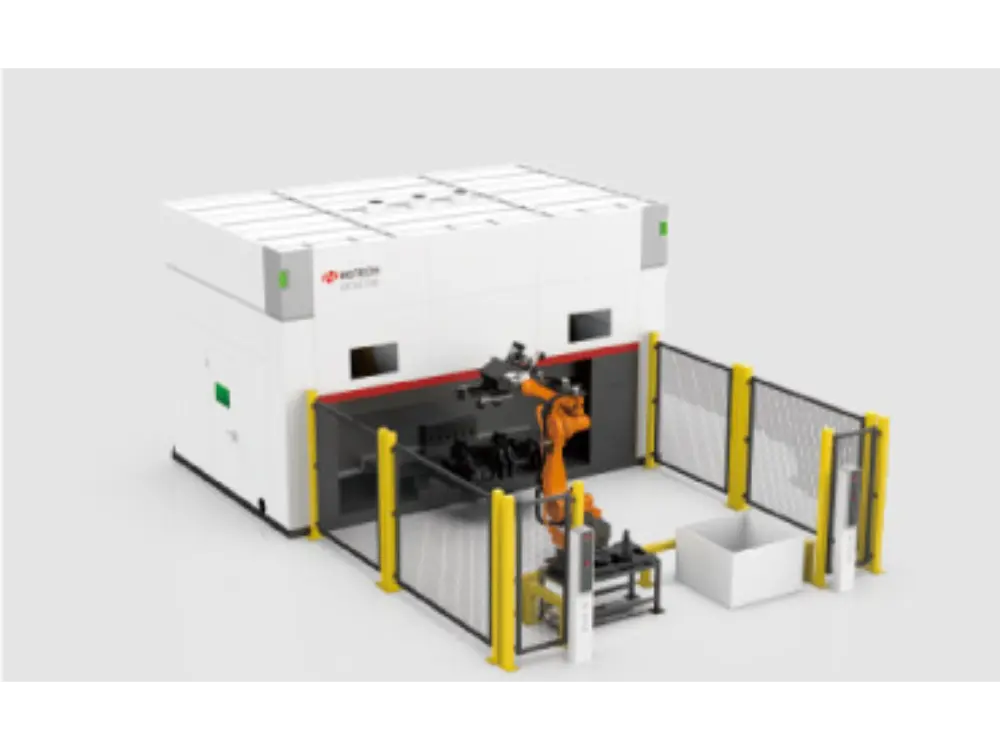

Robotic loading and unloading solutions can be provided according to product characteristics and customer requirements. It is a powerful guarantee for efficient and safe production by improving efficiency and saving manpower.

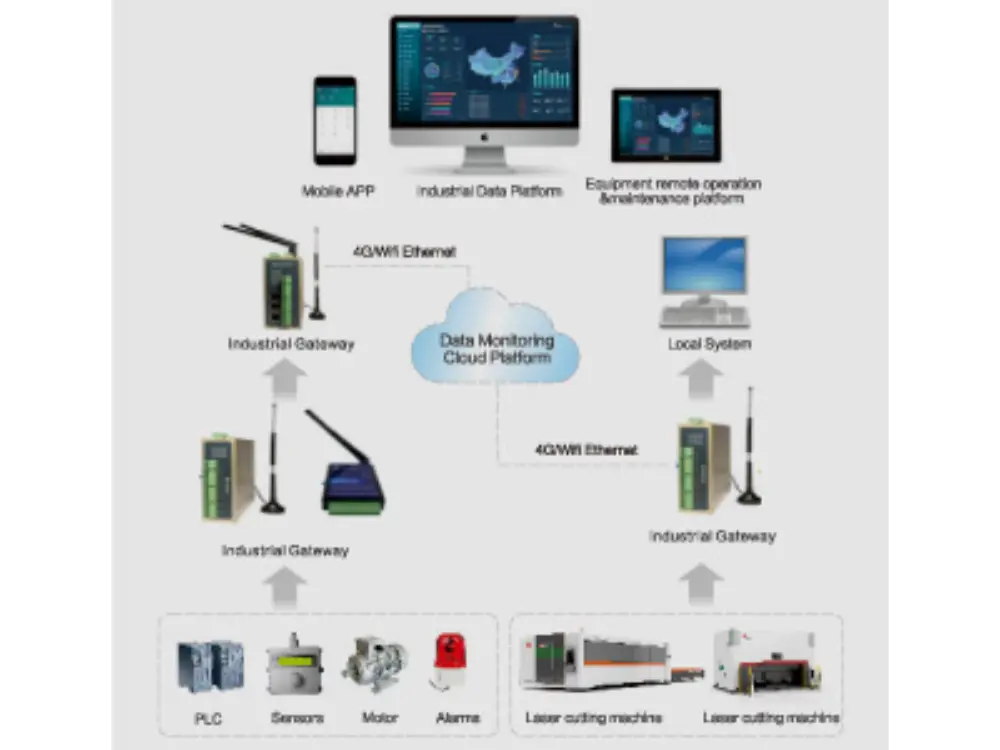

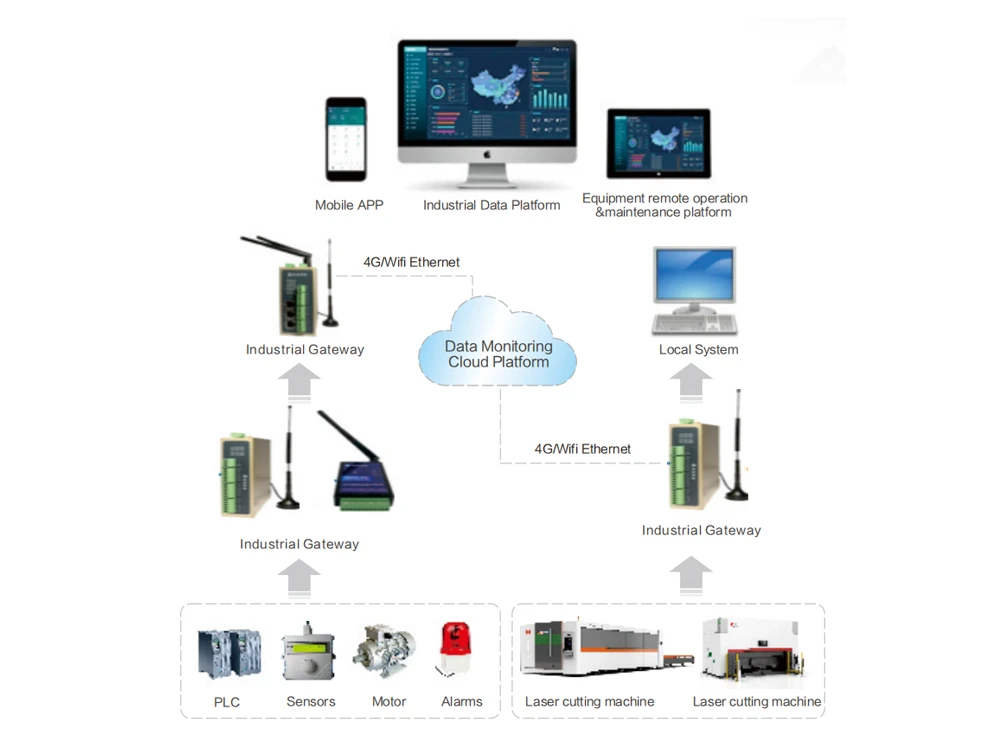

Intelligent Laser Cutting Management System
The intelligent laser cutting management system is designed to streamline laser cutting operations by providing real-time monitoring of machine status, statistical analysis of cutting data, data storage, fault diagnosis, maintenance alerts, and historical data analysis.
This comprehensive system enhances product competitiveness while helping users reduce costs and boost efficiency.

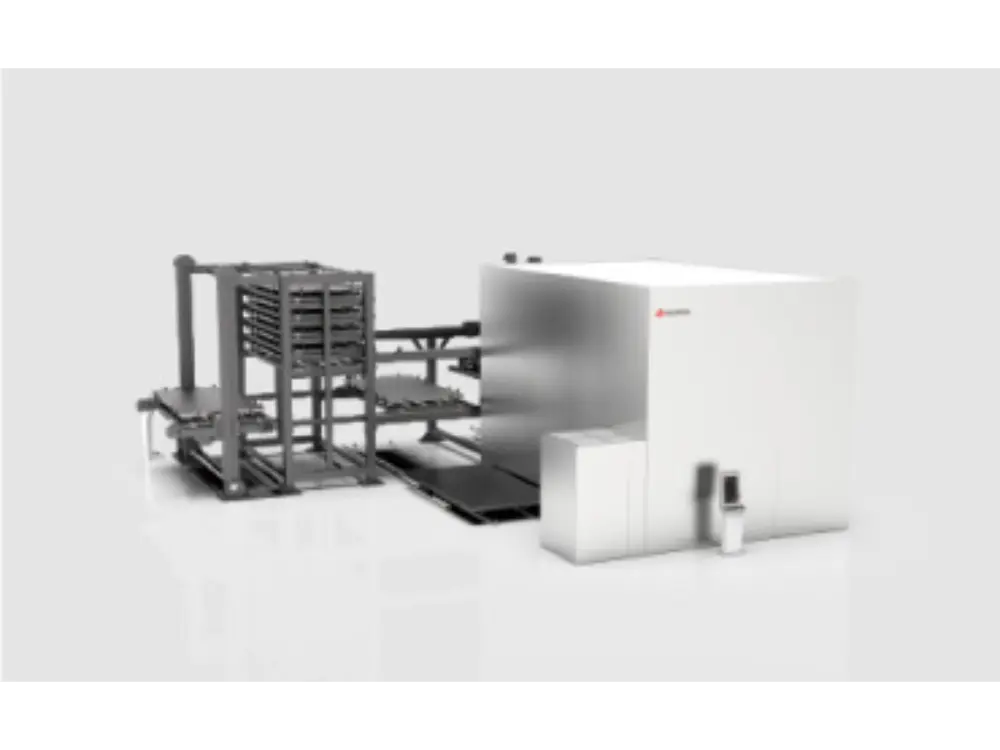

Automatic Materials Stock Unit
Robotic loading and unloading solutions can be provided according to product characteristics and customer requirements. It is a powerful guarantee for efficient and safe production by improving efficiency and saving manpower.
Industry Cases
Industry Background
The application of thermoforming technology can help achieve lightweighting, improve fuel economy, and achieve energy saving and emission reduction. High-strength steel, with its high hardness, high toughness and high wear resistance, is widely used in the field of automotive thermoforming.China’s first set of 3D Five-Axis laser cutting machine for high-strength steel thermoforming parts – AUTOBOT solves the problem of difficult punching of high-strength steel, replacing a large number of punching and trimming dies.
The machine can cut automotive thermoformed parts 24 hours a day, and can produce up to 1,000 pieces of B-pillars for this model in one day. It is equipped with high-speed rotary worktable and a new generation of independently developed high-performance cutting head, it can meet the production rhythm requirements of the automobile hot forming industry to the greatest extent.
Industry Achievements
- 1. In April 2018, the equipment was awarded the first prize of Hubei Provincial Science and Technology Progress.
- 2. In October 2022, the 3D Five-Axis laser cutting intelligent equipment of Huagong Technology’s intelligent manufacturing business ushered in the delivery of breaking 200 units in the thermoforming industry.
- 3. With the third generation of self-developed lightweight 3D Five-Axis cutting head, the market share steadily ranks the first in China.
