WALC Series: Large-format 3D Five-axis Cutting 1kW-12kW

Efficient cutting of ultra-large panel materials is applied in batches to engineering machinery, automobile manufacturing, ship manufacturing, rail transit industry, etc. And based on the market demand of a large number of medium-thick plate bevelers, we have independently developed large-scale five-axis beveling cutting equipment on the high-speed and high-fine Siemens system.

Geiser Performance – 8 Months with the SheetLAZER Auto

Cameron White from Geiser Performance discusses what it’s been like operating the X-Series SheetLAZER Auto for 8 months, and working with the XOVR Parts & Service team.

“Second to none. Best service we’ve received from a company like this.”

Features:

Perfect introduction, perfect addition

WALC Series

Large-format 3D Five-axis Cutting 1kW-12kW

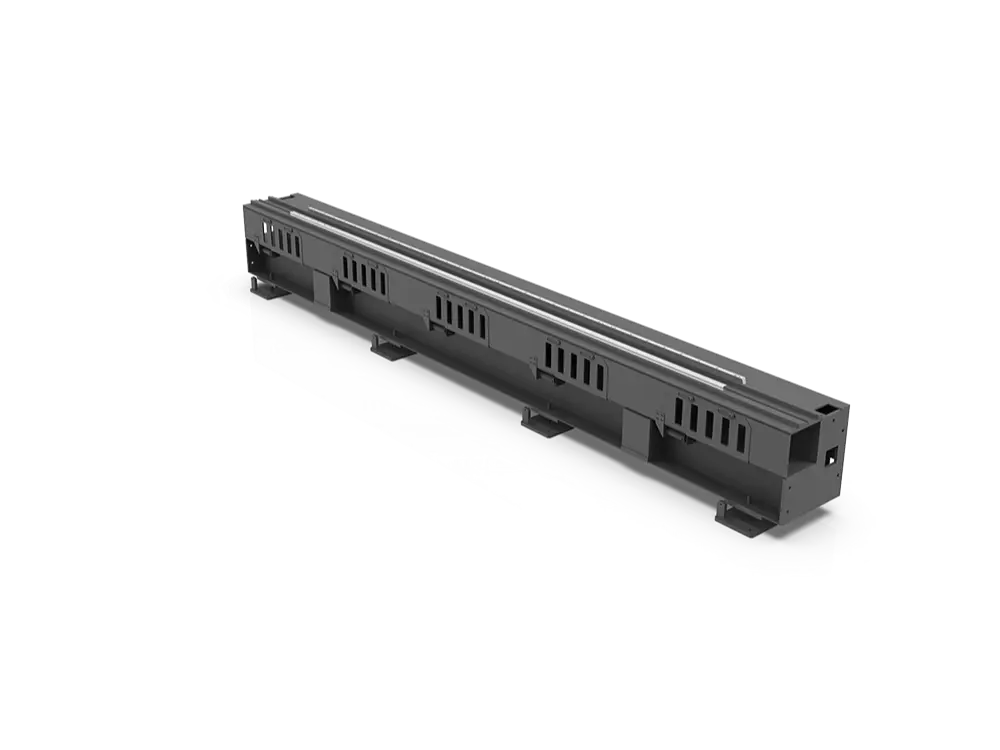

The overall moving structure of the large-section beam and the synchronous drive of bilateral gear and rack.

The optimized German Siemens laser cutting special numerical control system combined with the super-large workbench enhances humanized operation and stable and reliable movement.

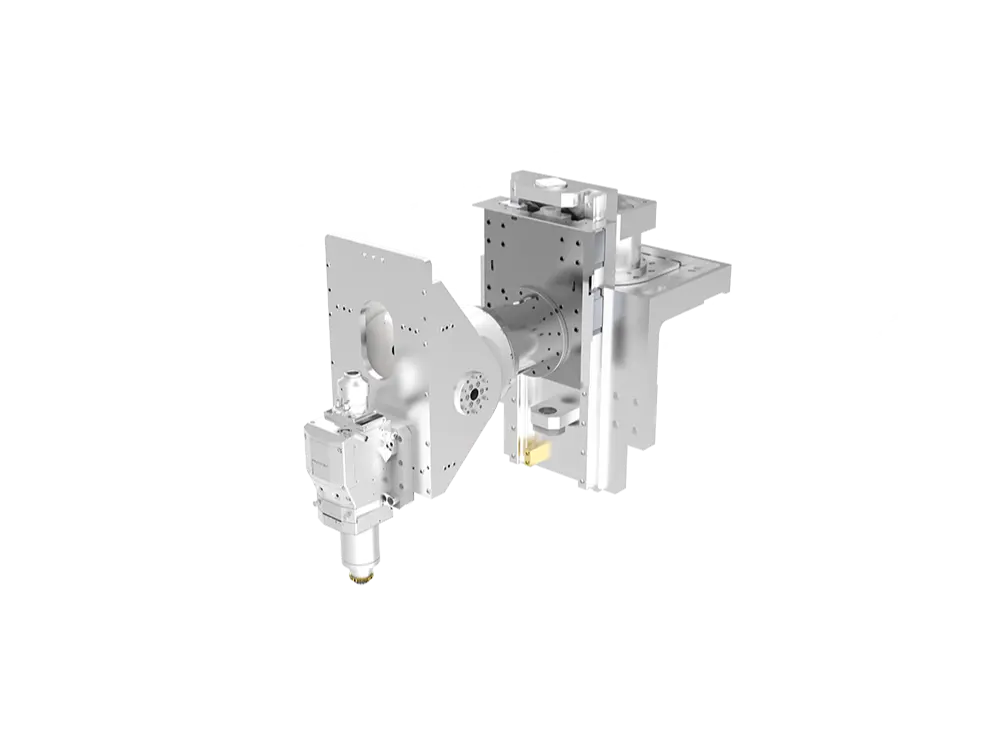

On-board structure: A variety of core components such as machine tool electrical cabinet, water and gas line system, Z-axis box, cutting head, operating table and so on are installed on the beam.

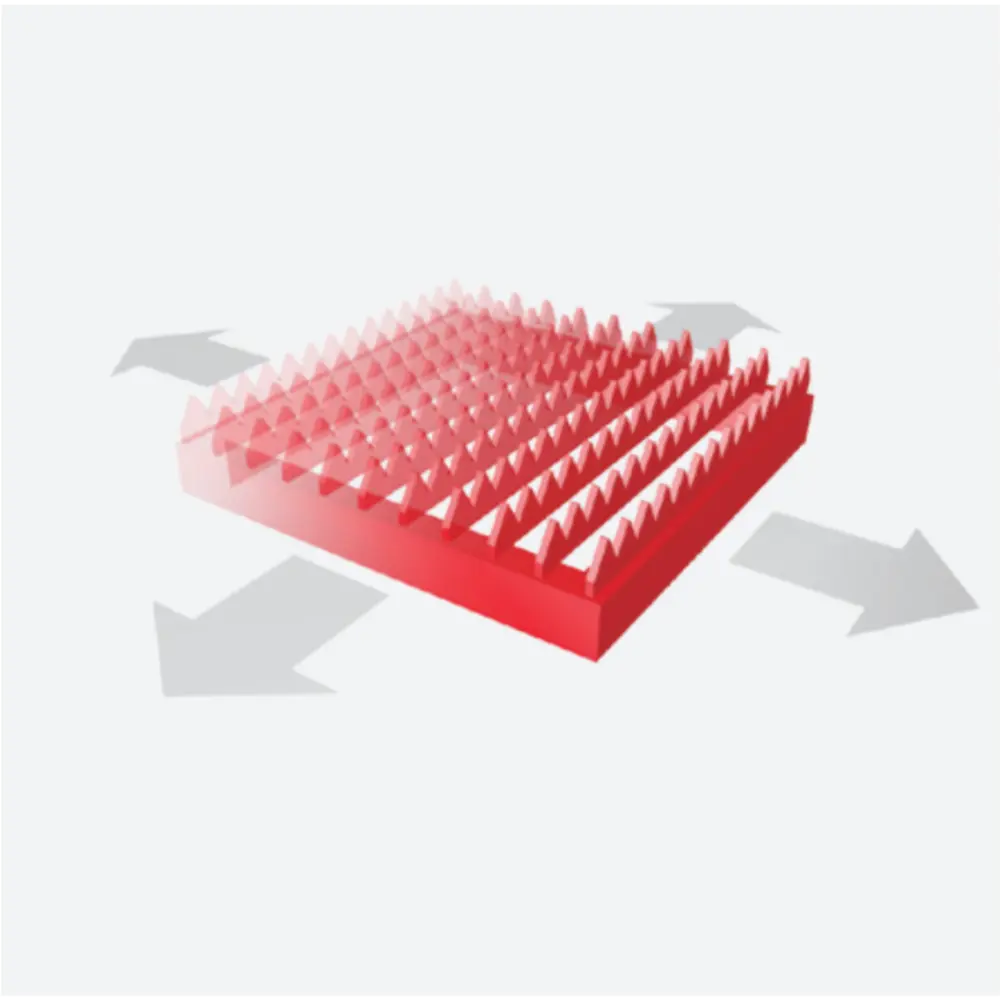

Fixed workbench (customized by the user): It is convenient to materialise the large board, and the small board can be processed while loading the material.

Model	WALC 6030	WALC 9030	WALC 2245	WALC1830P (slope cutting)
Laser power	6000-20000W
Jiao Chang	200mm automatic focus adjustment	200mm automatic focus adjustment	200mm automatic focus adjustment	200mm automatic focus adjustment
Operating system	Windows 10 system (Chinese and English)	Windows 10 system (Chinese and English)	Windows 10 system (Chinese and English)	Windows 10 system (Chinese and English)
Operate the software	SIEMENS 840D SL	SIEMENS 840D SL	SIEMENS 840D SL	SIEMENS 840D SL
Display screen	23.6 memory touch display (supports mouse operation)	23.6 memory touch display (supports mouse operation)	23.6 memory touch display (supports mouse operation)	23.6 memory touch display (supports mouse operation)
Processing range Vertical cutting	Metal plate: flat graphic cutting	Metal plate: flat graphic cutting	Metal plate: flat graphic cutting	Metal plate: flat graphic cutting

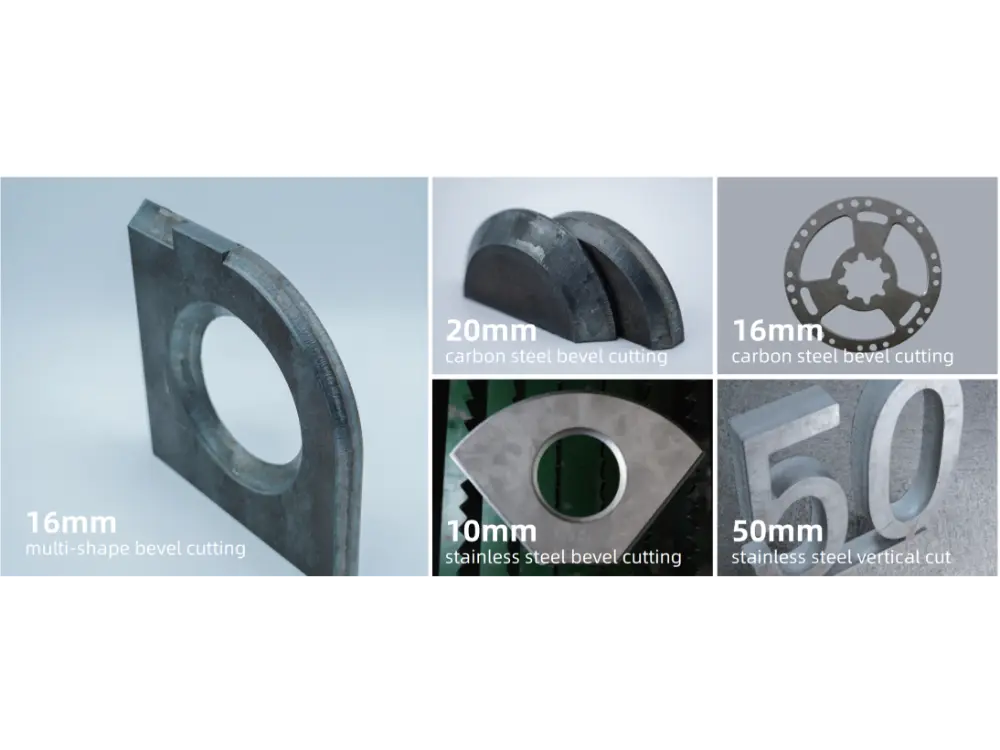

Processing scope, becafer cutting				Carbon steel plate: Y/V/K beveled graphic cutting
Processing capacity
Cutting carbon steel plate thickness (O) 2	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm; 45°V bevel cutting MAX: 30mm;
Cutting stainless steel plate thickness (N) 2	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm;
Cutting aluminum alloy plate thickness (N) 2	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm	Vertical cutting MAX: 60mm;
Processing area and scope of work
Processing width (length × width)	6000×3000mm	9000 times 3000mm	22000×4500mm	18000mm 6000mm
X-axis stroke	6096 millimeters	9,100 millimeters	22,100 millimeters	18,500 millimeters
Y-axis stroke	3048 millimeters	3048 millimeters	4,572 millimeters	6,100 millimeters
Z-axis stroke	140mm	140mm	140mm	150mm
Accuracy
X-axis positioning accuracy	0.1mm/10m (when ≤10m), 0.2mm/full length	0.1mm/10m (when ≤10m), 0.2mm/full length	0.1mm/10m (when ≤10m), 0.2mm/full length	0.1mm/10m (when ≤10m), 0.2mm/full length
Y-axis positioning accuracy	0.05 millimeters	0.05 millimeters	0.05 millimeters	0.05 millimeters
X-axis repeat positioning accuracy	0.05mm/10m (when ≤10m), 0.1mm/full length	0.05mm/10m (when ≤10m), 0.1mm/full length	0.05mm/10m (when ≤10m), 0.1mm/full length	0.05mm/10m (when ≤10m), 0.1mm/full length
Repeated positioning accuracy of Y axis	0.03 millimeters	0.03 millimeters	0.03 millimeters	0.03 millimeters
Resolution	0.001 millimeters	0.001 millimeters	0.001 millimeters	0.001 millimeters
Speed
X/Y axis maximum positioning speed	40m/min; lightweight 60m/min	40m/min; lightweight 60m/min	40m/min; lightweight 60m/min	40m/min; lightweight 60m/min
The maximum positioning speed of X/Y axis linkage	55m/min; lightweight 84m/min	55m/min; lightweight 84m/min	55m/min; lightweight 84m/min	55m/min; lightweight 84m/min
Power supply parameters
phase number	3	3	3	3
Rated voltage of power supply	380V	380V	380V	380V
Frequency	50Hz	50Hz	50Hz	50Hz
Total power supply protection level	IP54	IP54	IP54	IP54
