SMART Series Budget Laser Cutting Machine Solution 1000W-6000W
Smart series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w) for cutting steel, aluminum, titanium
FARLEY LASERLAB AUTO: Laser Cutting Machine Solution
Budget Laser Cutting Machine Solution 1000W-6000W
Smart series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w) for cutting steel, aluminum, titanium, alloys, brass, copper, iron and etc. Now this budget laser cutting machine offers low price with the best service and support.

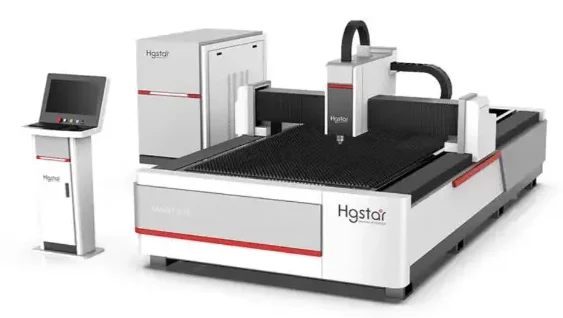

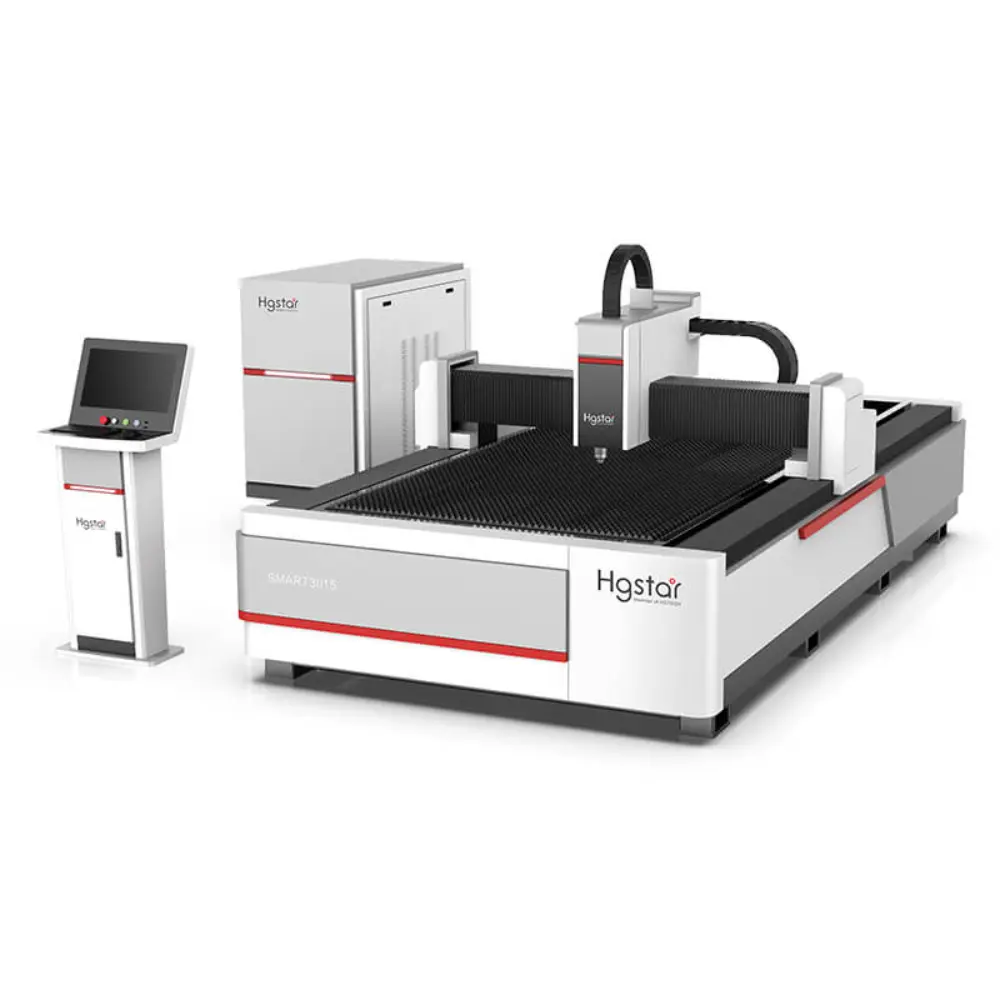

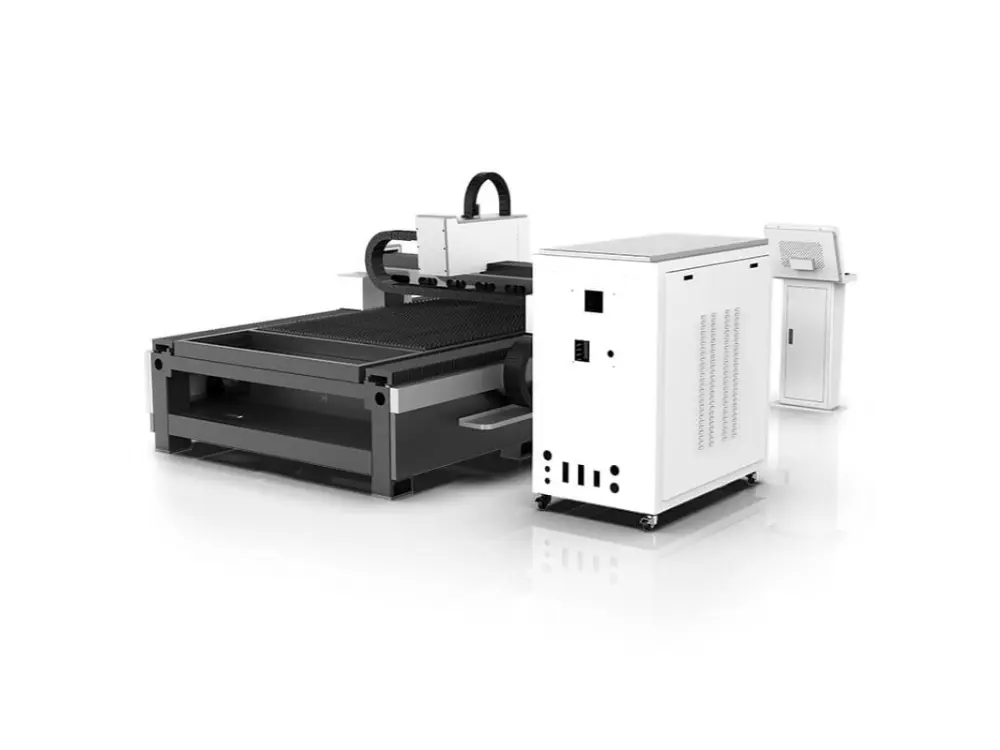

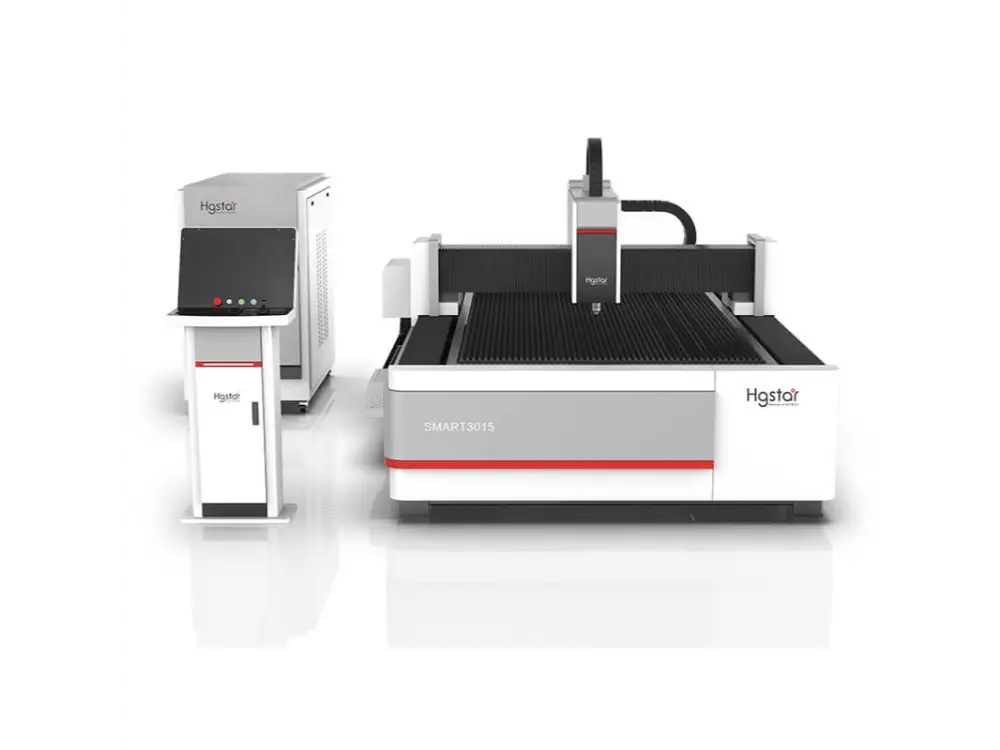

Laser Cutting Machine Solution SMART Series
The Smart series is a cost-effective laser cutting machine with multiple power options. It cuts steel, aluminum, titanium, copper and various alloys, offering budget-friendly pricing and reliable after-sales service.
Features:
Wide compatibility for various metals and alloys
High cost-performance overall solution
Multiple power options: 1000W, 1500W, 2000W
Low price with professional service and support
laser cutting machine solution – Technical Specifications
| MACHINE MODEL | SMART3015、4015、6015、8015 |
|---|---|
| Cutting Area (L×W) | 3000mm×1500mm,4000mm×1500mm 6000mm×1500mm,8000mm×1500mm |
| Laser Source | Fiber & 1000W – 6000W |
| CNC System | FSCUT 1000 |
| Laser Cutting Head | F125mm |
| Max Moving Speed | 80m/min, Acceleration is 1.0G |
| Position Accuracy (X and Y axis) | 0.02mm |
| Reposition Accuracy (X and Y axis) | 0.03mm |
| Power Supply Requirement | 380V 50/60Hz 35KVA |
| Machine weight | ≤2500 Kg |
| Appearance size | 4550mm×2280mm×2100mm |

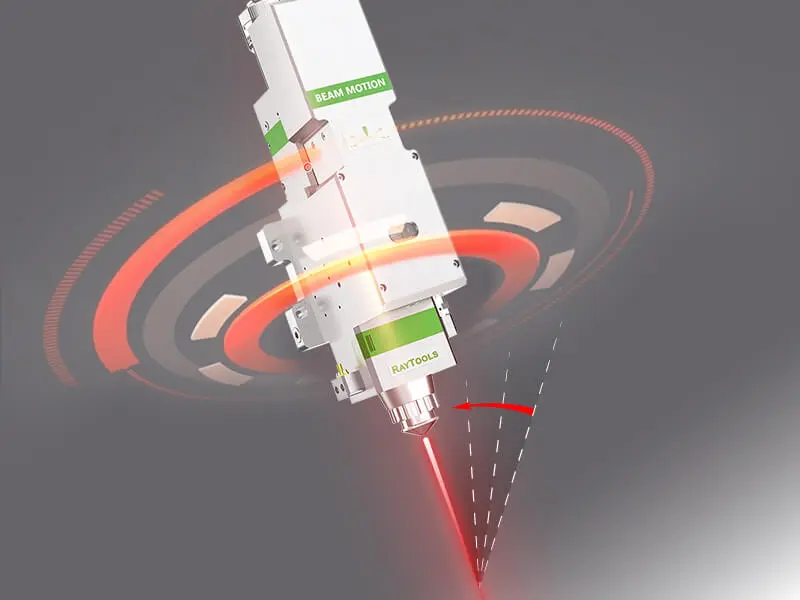

Without Manual Focusing, Autofocus Laser Cutting Head
The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.

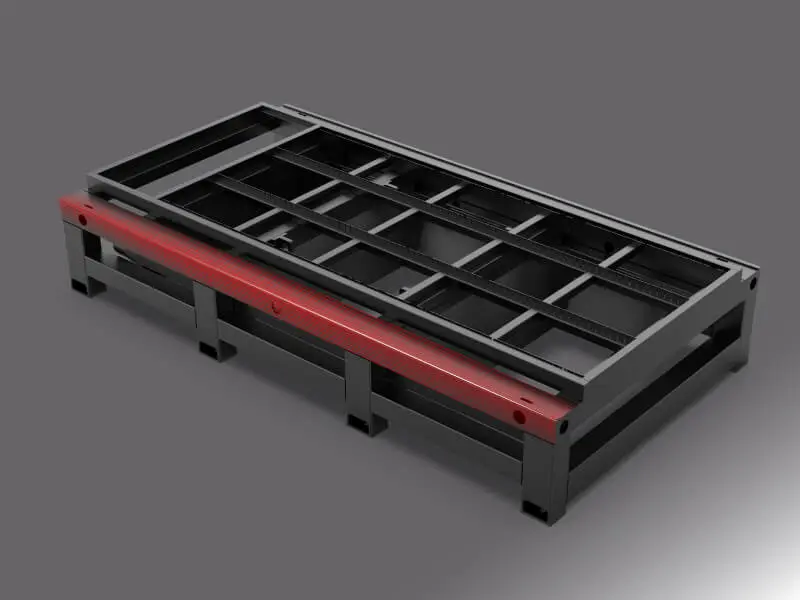

Laser Cutting Machine Welded Bed
The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.

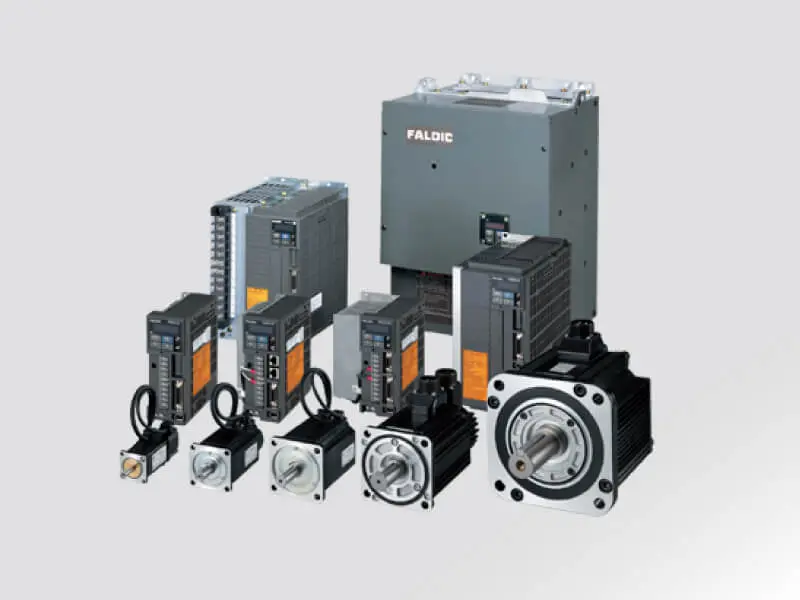

Servo and Motor
JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.

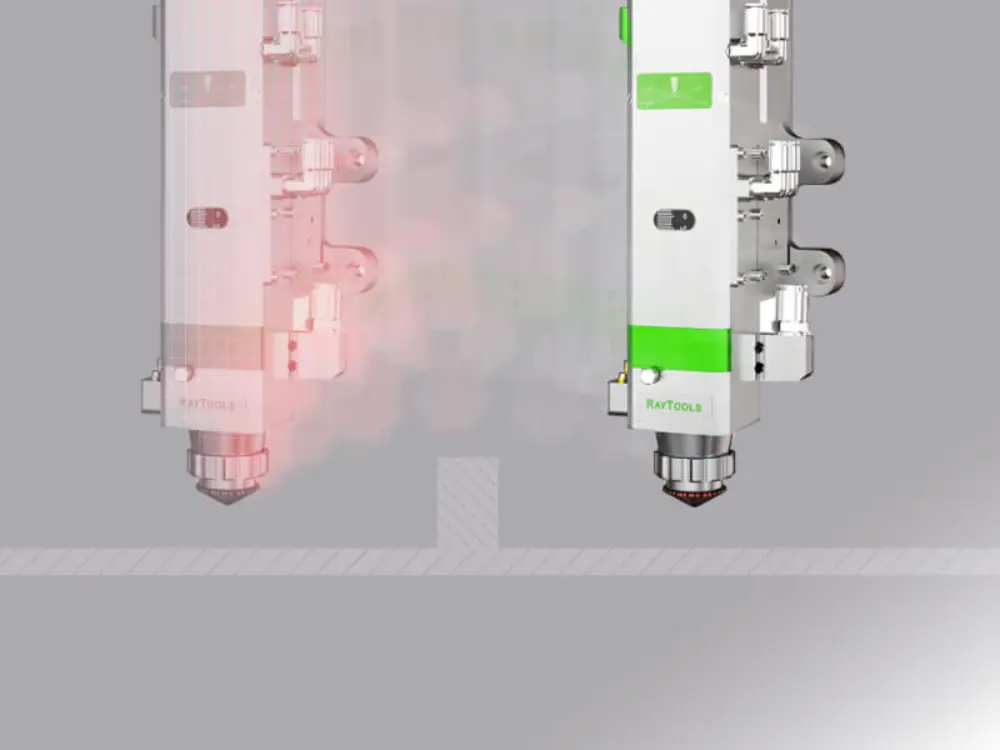

Active Anti-collision Function
Effectively reduce the damage rate of laser heads, help you save maintenance cost.

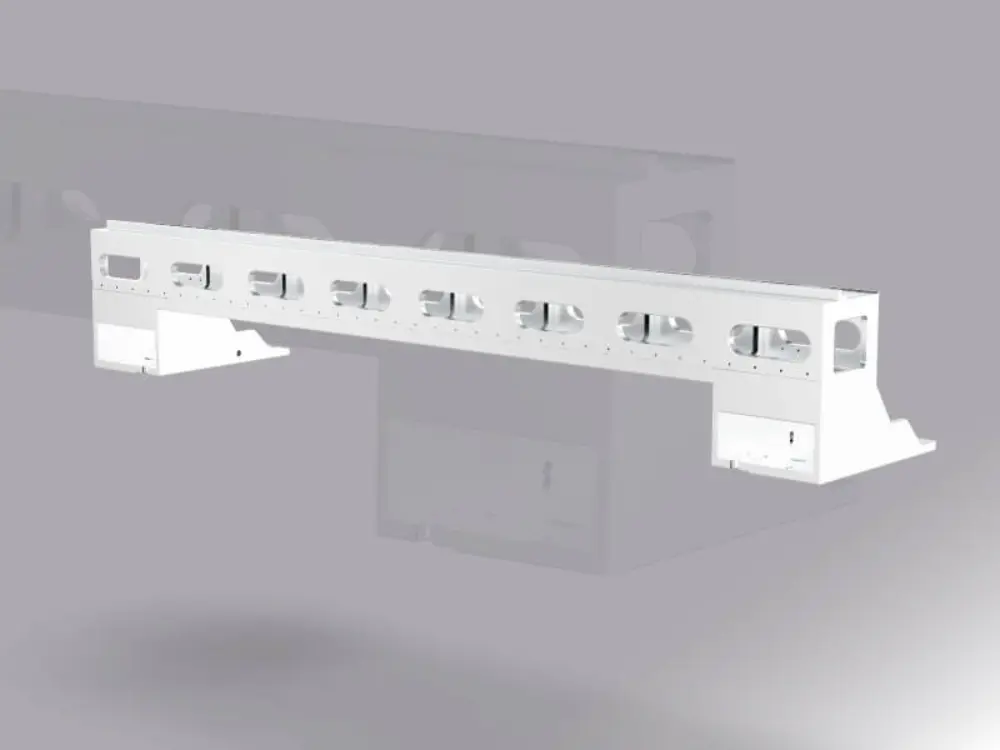

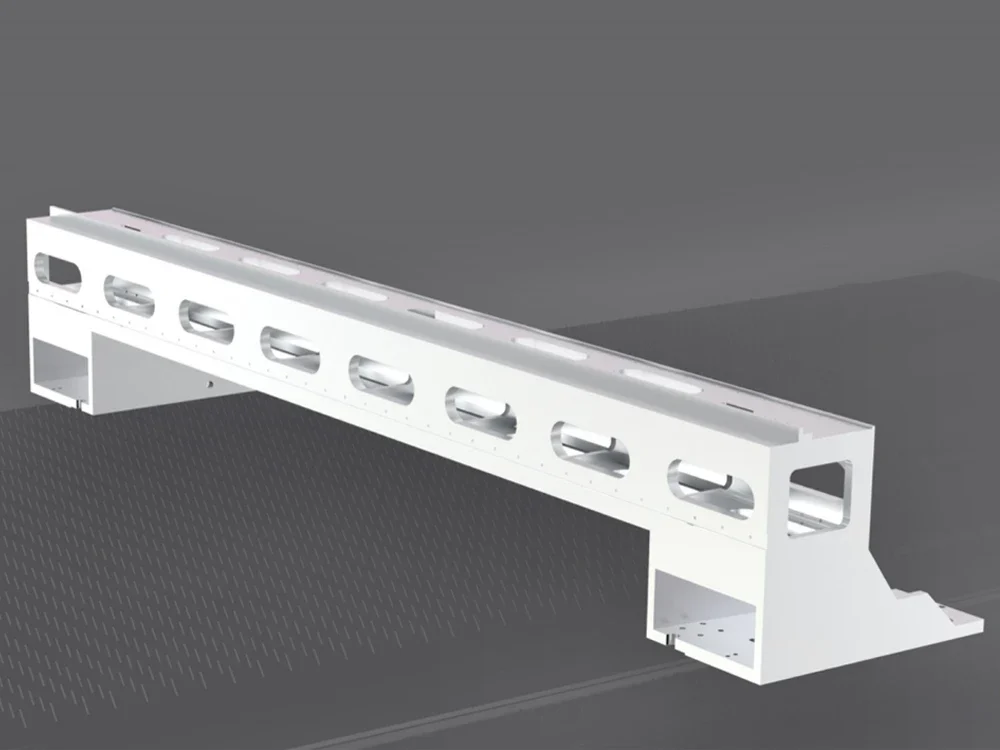

Beam made of cast aluminum
Aluminum monolithic cast beam, light weight, high strength, no deformation Light crossbeams, which are molded and framed using integral steel mold and die-casting technology, give equipment a high operation speed, improving processing efficiency and quality.
