FARLEY LASERLAB AUTO: Bevel Laser Cutting Machine WALC-P Series

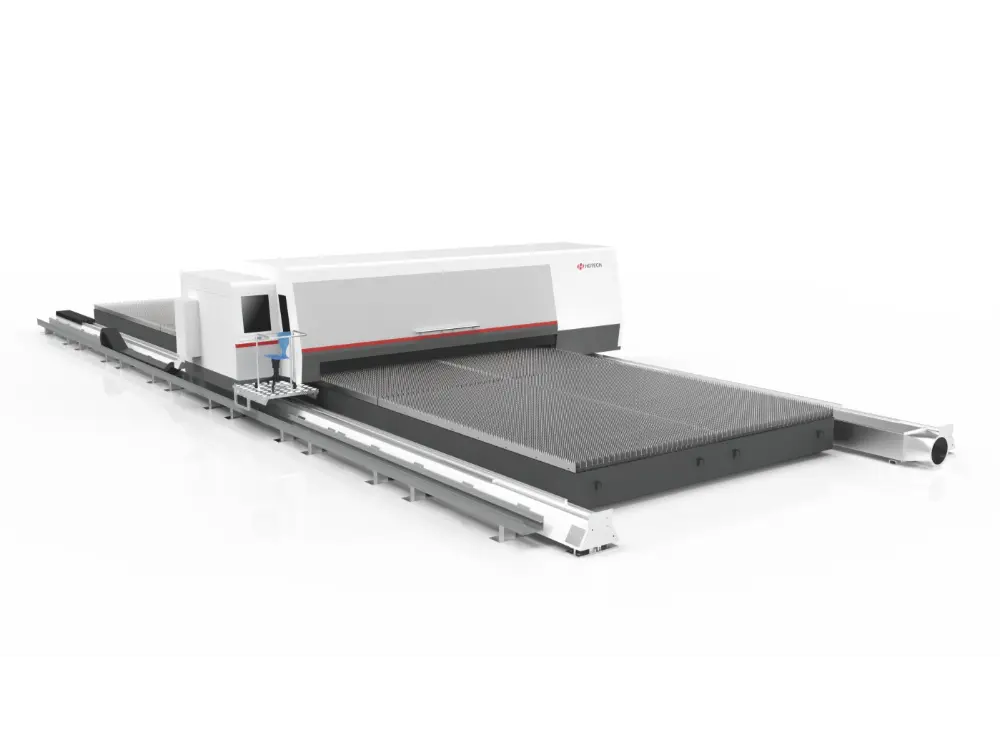

WALC-P Series: Large Format High-Power Bevel Laser Cutting
The standard WALC-P series high-power bevel laser cutter is a dedicated cutting machine designed for the shipbuilding, bridge construction, and steel industries to meet the needs of bevel cutting. Its biggest feature is that it can handle various types of bevel cutting, direct cutting, and edge cutting in one setup, eliminating the need for subsequent finishing or additional cutting processes.
Sheet Metal Laser Cutting Machine WALC-P Series
WALC-P high-power bevel laser cutter delivers one-stop multi-type cutting for construction, bridge and shipbuilding industries, no extra transfer or post-processing needed.
Features:
General-Purpose Processing Equipment
Standard High-Power Bevel Cutter
No Additional Transfer Required
Multi-Industry Bevel Cutting Solution
Eliminates Post-Processing Steps
One-Step Multi-Type Cutting
Sheet Metal Laser Cutting Machine – Technical Specifications
| Project | Main Parametrs | |
|---|---|---|
| Basic Specification | Laser Power | 6000-30000W |
| Focal Length | F200 ~ F300mm automatic focus | |
| Operating System | Windows 10(Chinese and English) | |
| CNC System | FARLEY-A, FARLEY-H | |
| Display System | 23.6-inch touch display (mouse operation supported) | |
| Machining Range Vertical Cutting | Metal material arbitary shape workpiece cutting, marking, etc. | |
| Machining Range Bevel Cutting | Carbon steel/stainless steel/aluminum sheet V/Y/X/K bevel cutting ±45° | |
| Processing Capability | Carbon Steel Plate Cutting Thickness(O2) | Vertically cut MAX 80mm Bevel cut MAX 30mm |
| Stainless Steel Plate Cutting Thickness(N2) | Vertically cut MAX 100mm Bevel cut MAX 25mm | |
| Aluminum Steel Plate Cutting Thickness(N2) | Vertically cut MAX 100mm Bevel cut MAX 20mm | |
| Processing Stroke | X Axis Stroke | MAX 50m(cutomizable) |
| Y Axis Stroke | MAX 6m(cutomizable) | |
| Z Axis Stroke | 300mm | |
| Processing Accuracy | X Axis Positioning Accuracy | 0.1mm/10m(≤10m),0.2mm/full length |
| YX Axis Positioning Accuracy | 0.05mm | |
| X Axis Repeated Positioning Accuracy | 0.05mm/10m(≤10m),0.1mm/full length | |
| Y Axis Repeated Positioning Accuracy | 0.03mm | |
| Processing Speed | Maximum Acceleration | 0.6G |
| X/Y Axis Maximum Positioning Speed | 40m/min | |
| X/Y Axis Maximum Linkage Positioning Speed | 56m/min | |
| Power | Number of Phases | 3 |
| Rated Voltage | 380V | |
| Frequency | 50Hz | |
| Total Power Supply Protection Level | IP54 | |
High efficiency
The bevel cutting speed is increased by more than 3 times compared with the traditional process,and the product is processed at one step
High precision
Bevel cutting angle error ± 1° precision error ± 1mm
Powerful Functionality
It can realize the bevel cutting of special-shaped parts
Industry Application
Bridge Manufacturing
Steel Tower
Automobile Manufacturer
Shipbuilding
Construction Machinery
