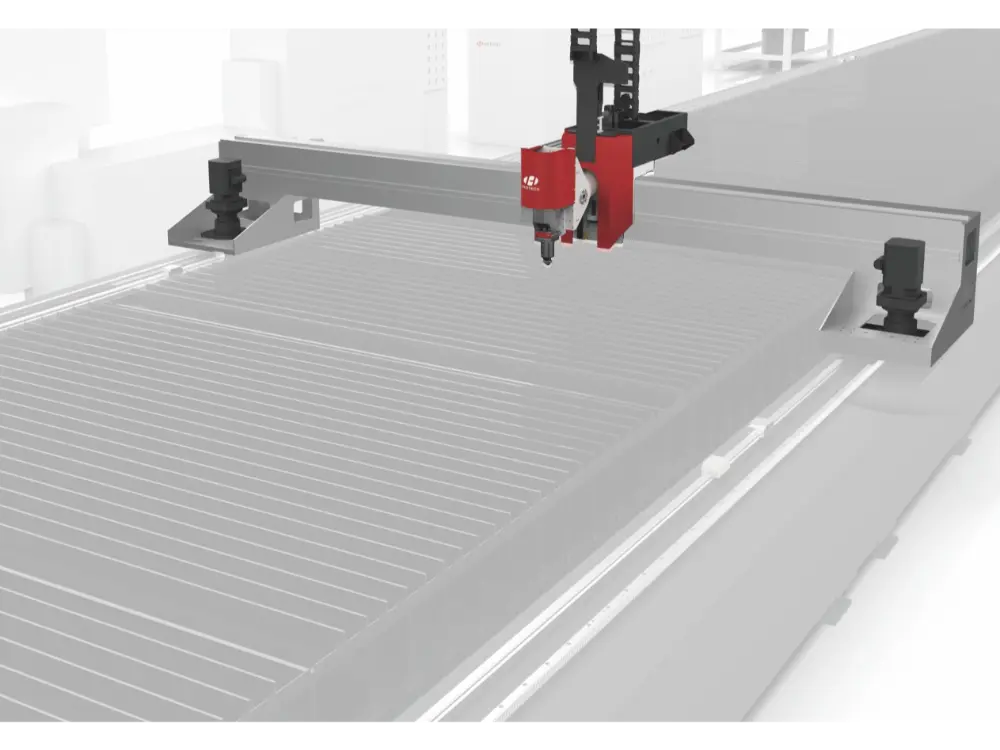

WALC-QP Series High Power Bevel Laser Cutting Machine

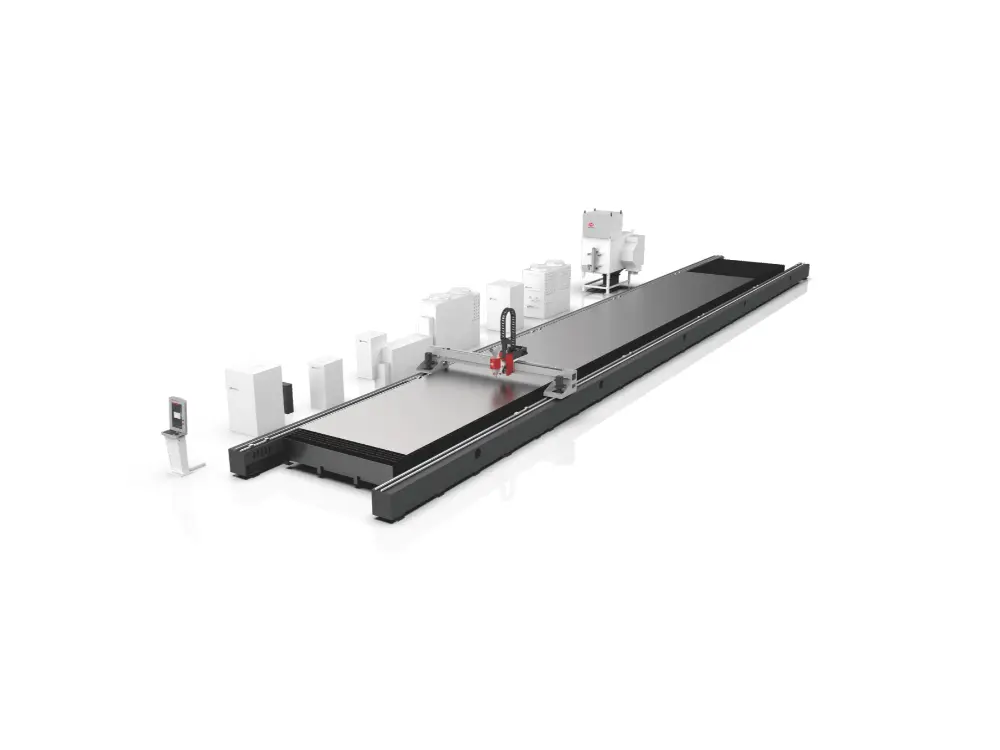

WALC-QP Series High Power Bevel Laser Cutting Machine - Image 2

WALC-QP Series High Power Bevel Laser Cutting Machine

MARVEL Series laser cutting machine delivers excellent cutting precision and high processing speed. The machine produces a very small heat-affected zone, helping to maintain material stability and prevent deformation during cutting.

It is suitable for processing a variety of metal materials, including stainless steel, carbon steel, aluminum alloy, iron, and other metal sheets, making it a versatile solution for many manufacturing applications.

Price Range: USD $15,000 – USD $35,000.

Send Inquiry

Description

FARLEY LASERLAB AUTO: AUTOMATED HIGH-SPEED SHEET METAL LASER

WALC-QP Series: High Power Bevel Laser Cutting Machine

The streamlined WALC-QP series is a high-power large-format flat-bevel laser cutter designed for construction machinery, steel structure workshops, and smart production lines. Developed with a focus on high efficiency and high-precision integration, it features excellent dynamic and stability performance. The machine is perfectly integrated into automated and intelligent production lines, significantly improving processing efficiency and reducing production takt time.

Geiser Performance – 8 Months with the SheetLAZER Auto

Cameron White from Geiser Performance discusses what it’s been like operating the X-Series SheetLAZER Auto for 8 months, and working with the XOVR Parts & Service team.

“Second to none. Best service we’ve received from a company like this.”

Features:

High efficiency

Expandable Functions

High precision

WALC-QP Series: High Power Bevel Laser Cutting Machine

Technical parameters

Category	Item	Main Specifications
Basic Specifications	Laser Output Power	6000–60000W
	Focus Distance	Auto focus adjustment: F200 – F300
	Operating System	Windows 10 (Chinese & English)
	CNC System	FARLEY-A, FARLEY-H
	Display	23.6-inch touch screen display (with mouse operation support)
	Processing Range: Straight Cutting	High-power metal sheet cutting (plasma, etc.), flexible processing
	Processing Range: Bevel Cutting	Carbon steel/stainless steel/aluminum alloy sheet; V/I/A/E bevel cutting ±45°
Processing Capacity	Carbon Steel Panel Cutting Thickness (O₂)	Max. straight cutting: 80mm; Max. bevel cutting: 60mm
	Stainless Steel Panel Cutting Thickness (N₂)	Max. straight cutting: 100mm; Max. bevel cutting: 60mm
	Aluminum Alloy Panel Cutting Thickness (N₂)	Max. straight cutting: 100mm; Max. bevel cutting: 60mm
Processing Stroke	X-axis Stroke	Max. 28m (customizable setting available)
	Y-axis Stroke	Max. 4m (customizable setting available)
	Z-axis Stroke	300mm
Positioning Accuracy	X-axis Positioning Accuracy	0.1mm/10m (≤10m), 0.2mm/full length
	Y-axis Positioning Accuracy	0.05mm
	X-axis Repeat Positioning Accuracy	0.05mm/10m (≤10m), 0.1mm/full length
	Y-axis Repeat Positioning Accuracy	0.03mm
Processing Speed	Max. Acceleration	0.8G
	Max. Positioning Speed (X/Y-axis)	60m/min
	Max. Rapid Traverse Speed (X/Y-axis)	84m/min
Power Supply	Phase	3-phase
	Rated Voltage	380V
	Frequency	60Hz
	Total Power Supply Protection Class	IP54

High efficiency

Boasting superior dynamic performance and an ultra-fast spindle speed, the cutting speed for conventional parts exceeds 3 times that of traditional processes, enabling one-pass processing of products.

High precision

Cutting angle accuracy: ±1°; dimensional accuracy: ±1mm.

Expandable Functions

It supports optional laser heads, starting positioning, first piece inspection, code scanning, and other functional expansions.

Reliable & Stable Fiber Laser Technology

Multi-Module CW Fiber Laser Technology

From 3kw up to 12kw
Highly Reliable & Maintenance Free
High Electro-Optical Conversion Efficiency
High Beam Stability & Quality
