WALC Series Large-format 3D Five-axis Cutting 1kW-12kW

Efficient cutting of ultra-large panel materials is applied in batches to engineering machinery, automobile manufacturing, ship manufacturing, rail transit industry, etc. And based on the market demand of a large number of medium-thick plate bevelers, we have independently developed

Send Inquiry

Description

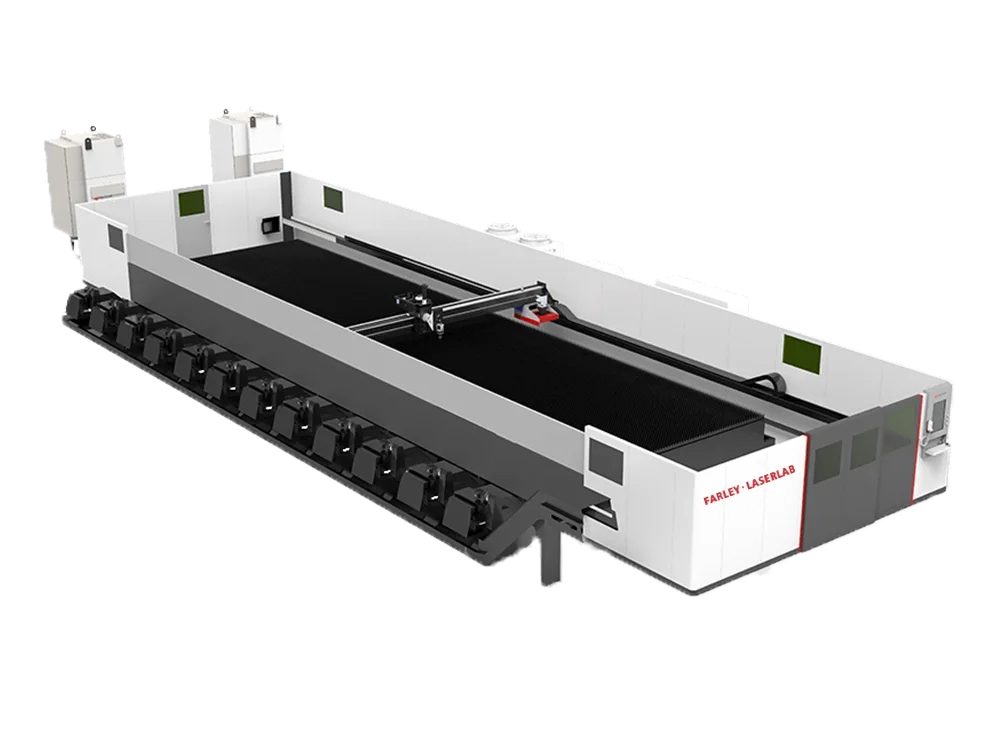

FARLEY LASERLAB AUTO: Large-format 3D Five-axis Cutting WALC Series

WALC Series: Large-format 3D Five-axis Cutting 1kW-12kW

Sheet Metal Laser Cutting Machine WALC Series

WALC & bevel laser cutters with ultra-high power, customizable large format and bevel capability, easily integrate into production lines for super large workpiece processing across multiple industries.

Features:

Ultra-High Power & Customizable Large Format

Professional Bevel Cutting Capability

Easy Production Line Integration

Super Large Workpiece Processing Solution

High Speed, Precision & Stability

Excellent System Openness

Sheet Metal Laser Cutting Machine – Technical Specifications

MODEL	WALC 8030	WALC 1235	WALC 1830P	WALC 2535P
Laser Power	6000 – 30000 W
Control System	SIMENS 840D SL, FARLEY
Vertical Cutting	Sheet metal: 2D cutting and marking
Bevel Cutting	CS SS AL: V/Y/X/K bevel cutting within ±45 degrees
Processing Capability
Cutting Thickness: CS(O2)	Vertically cut MAX: 60mm		Vertically cut MAX: 60mm Bevel cutting MAX: 30mm
Cutting Thickness: SS(N2)	Vertically cut MAX: 60mm		Vertically cut MAX: 60mm Bevel cutting MAX: 25mm
Cutting Thickness: AL(N2)	Vertically cut MAX: 60mm		Vertically cut MAX: 60mm Bevel cutting MAX: 20mm
Processing Format And Working Range
Processing Width	8000 * 3000mm	12000 * 3500mm	18000 * 3000mm	25000 * 3500mm
K-bevel Processing Width	NA		17000 * 2500mm	24000 * 3000mm
Route of X-axis	8100mm	12100mm	18100mm	25100mm
Route of Y-axis	3050mm	3550mm	3050mm	3550mm
Route of Z-axis	150mm	150mm	300mm	300mm
Accuracy
Positioning accuracy of X axis	0.1mm/10m (≤10m), 0.2mm/full length
Positioning accuracy of Y axis	0.05mm
Repeated Positioning accuracy of X axis	0.05mm/10m (≤10m), 0.1mm/full length
Positioning accuracy of X axis	0.03mm
Velocity
Max Acceleration	1G
X/Y Axis Max Positioning Speed	60m/min
X/Y Axis Max Positioning Con-speed	84m/min

WALC and bevel laser cutting product series have the characteristics of ultra-high power, ultra-large-format (processing format can be customized) high-speed, high-precision, high-stability, and can be used for bevel cutting. This product has good openness and is easy to access the production line and production management system. It is widely used in construction machinery, ships and automobile manufacturing, bridge steel towers and other industries to solve the needs of one-time cutting and bevel cutting of super large plates and workpieces.

Lightweight design

Customizable size

Integrated differentiated dust removal

Box beam modular bed

Segmented design

Lighweight beam, high efficiency work

With a maximum acceleration of 1G and a maximum speed of 80m/min in a single axis, the machine can achieve higher acceleration and speed.

Smooth and flat cutting surface,

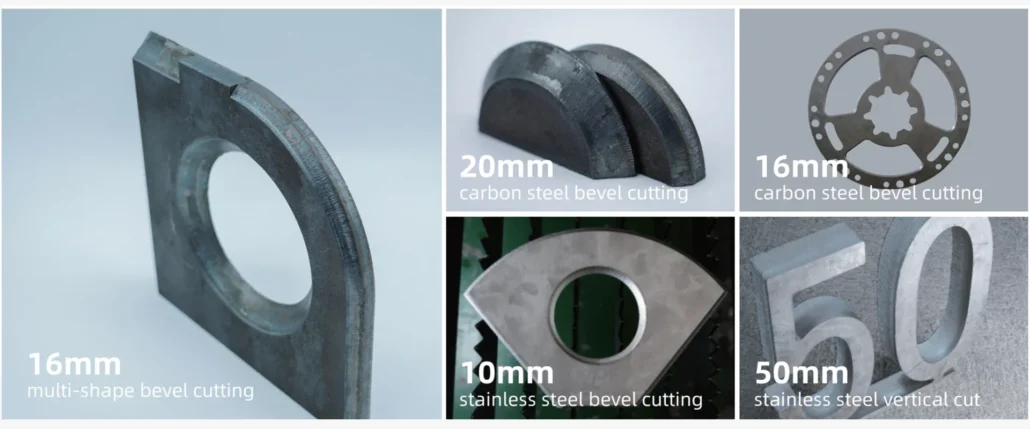

Achieving any shape of bevel cutting at will

Reduce the process, allowing for a maximum 45-degree range of different shapes and bevel angles at one time. Reduce material waste and operating costs.

Energy saving and consumption reduction,
offering greater economic and environmental benefits.

Box beams are designed in a modular,segmented format to minimize material usage
Lightweight bed allows for easy installation and significant time savings
Integrated air extraction, more space-efficient setup and highly effective dust removal
