This equipment is mainly developed for semiconductor and 3C industries. Suitable for cutting silicon, ceramics, glass, SiC and other materials. It has the advantages of fast cutting speed and high positioning accuracy. The equipment is equipped with a high-precision CCD vision system

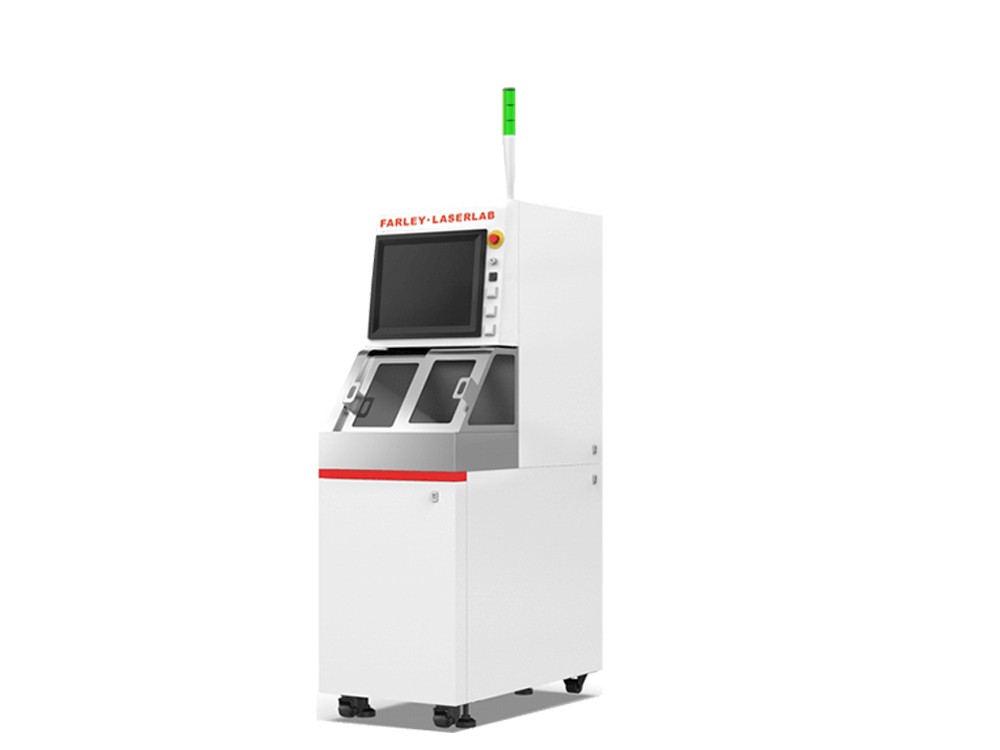

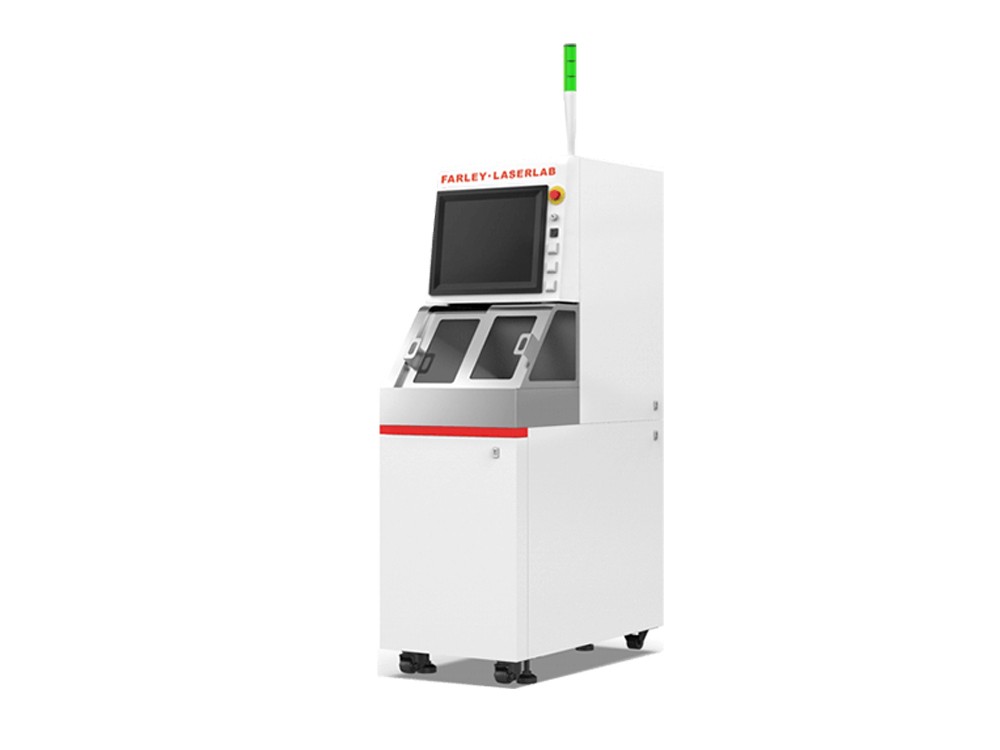

FARLEY LASERLAB AUTO: Wheel Cutting Machine
Cutter Wheel Cutting Machine Wheel Cutting Series
This equipment is mainly developed for semiconductor and 3C industries. Suitable for cutting silicon, ceramics, glass, SiC and other materials. It has the advantages of fast cutting speed and high positioning accuracy. The equipment is equipped with a high-precision CCD vision system, which can realize the automatic positioning and angle adjustment of the workpiece and improve the processing efficiency.
Cutter Wheel Cutting Machine Wheel Cutting Series
This device cuts various ceramic materials with high efficiency and precision via auto loading and unloading. It offers professional laser and automation solutions for PCB, SMT, FPC, IC packaging and ceramic substrate manufacturing.
Features:
Supports multiple ceramic materials processing
Automatic loading and unloading design
Professional solutions for electronics industries
Integrated automation and full-process control
Non-contact stress-free laser processing
High-efficiency and high-precision machining
Wheel Cutting Machine – Technical Specifications
Applications：
- Semiconductor industry
- 3C industry
| Item | Main Parameters | |
|---|---|---|
| Working table size | Circular working table | Ø6″ |
| X axis | Available track | 235mm |
| Cutting stroke | 0.1—800mm/s | |
| Y axis | Available track | 145 mm |
| Stroke resolution | 0.0005mm | |
| Repetitive positioning accuracy | 0.001mm | |
| T axis | Angle range | 335°deg |
| Repetitive positioning accuracy | 0.001° | |
| Function | Automatic positioning of workpiece | Standard configuration |
| Automatic alignment of workpiece | Standard configuration | |
| NCS height measurement | Standard configuration | |
| Overall dimension | Overall size | 494mm*882mm*1668mm |
| Weight | 500Kg | |
Cutting of plyglass; thickness: 2.5mm
