SMT Double Head PCB Laser Marking Series Machine
Applicable to PCBA production line, offline/online mode can be selected according to needs,automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of PCBA
FARLEY LASERLAB AUTO: PCB Laser Marking Machine
SMT Double Head PCB Laser Marking Series Machine
Applicable to PCBA production line, offline/online mode can be selected according to needs,automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of PCBA enterprises in the production process can be realized.
The equipment has a compact structure, small size, and easy to be embedded invarious SMT production lines.

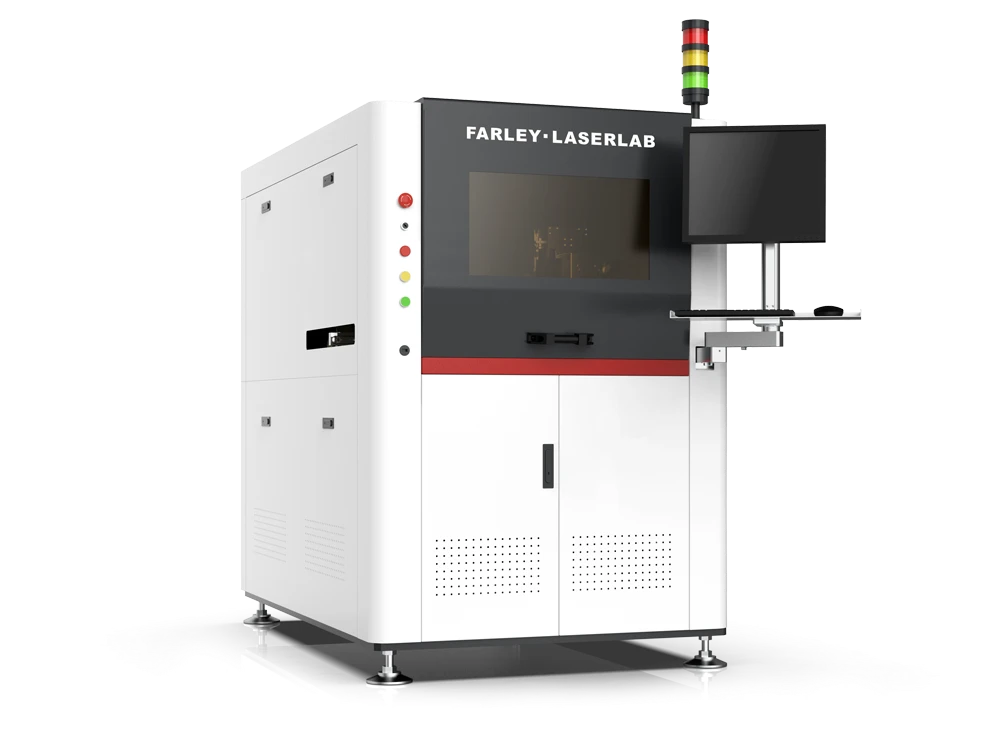

PCB Laser Marking Machine SMT Double Head Series
This PCBA laser coding machine supports online/offline mode, uses industrial vision for auto coding and reading. With high-quality laser, multi-code compatibility and MES connection, it adapts to various PCB/FPC materials and fits easily into SMT lines.
Features:
Online / offline optional for PCBA line
High-quality laser, tiny heat impact
MES system docking & data anti-duplication
Auto laser coding & vision reading
Multi-code support with 99.9% read rate
Compact structure, easy for SMT inline integration
SMT Double Head PCB Laser Marking Machine – Technical Specifications
| Item | Main technical parameters | |||||
|---|---|---|---|---|---|---|
| Laser system | Laser source | Co2 | Fiber | UV | Green | |
| Laser wavelength | 10.6um | 1064nm | 355nm | 532nm | ||
| Average output power | 5W/10W/20W | |||||
| Processing performance | Circuit board size | 50×50-510×460(mm) | ||||
| Circuit board thickness | 0-5mm(0-0.8mm Carrier required) | |||||
| Repeat positioning accuracy | ±0.1mm(CCD positioning) | |||||
| Minimum width | 0.1mm(DETAILED depending on material may be) | |||||
| Minimum characters | 0.5mm(DETAILED depending on material may be) | |||||
| Support barcode type | Code128/Code39 one-dimensional code | |||||
| DataMatrix/QR two-dimensional code | ||||||
| Into the plate directions | Left to right/Right to left | |||||
| Use environment | Power supply specifications | 220V/50Hz/2.5KVA | ||||
| Air supply specifications | 0.5-0.7MP | |||||
| Environmental requirements | Temperature 15-30℃/Humidity＜50% | |||||
| Overall size | 1000mm(W)×1600mm(L)×1500mm(H) | |||||

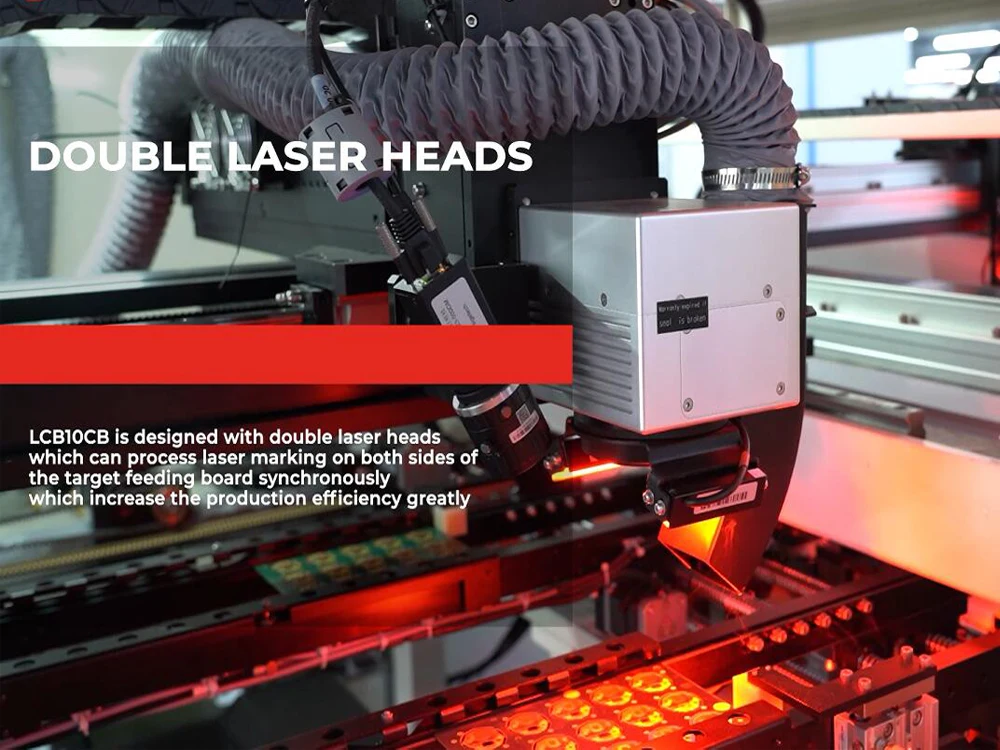

Double Laser Heads
LCB10CB is designed with double laser headswhich can process laser marking on both sides ofthe target feeding board synchronouslywhich increase the production efficiency greatly.
High-Quality Laser Processing
Adopts world-class lasers with excellent beam quality, small heat-affected zone and high precision, supporting automatic marking on various PCB/FPC materials including green oil, white oil, black oil and metal shields.

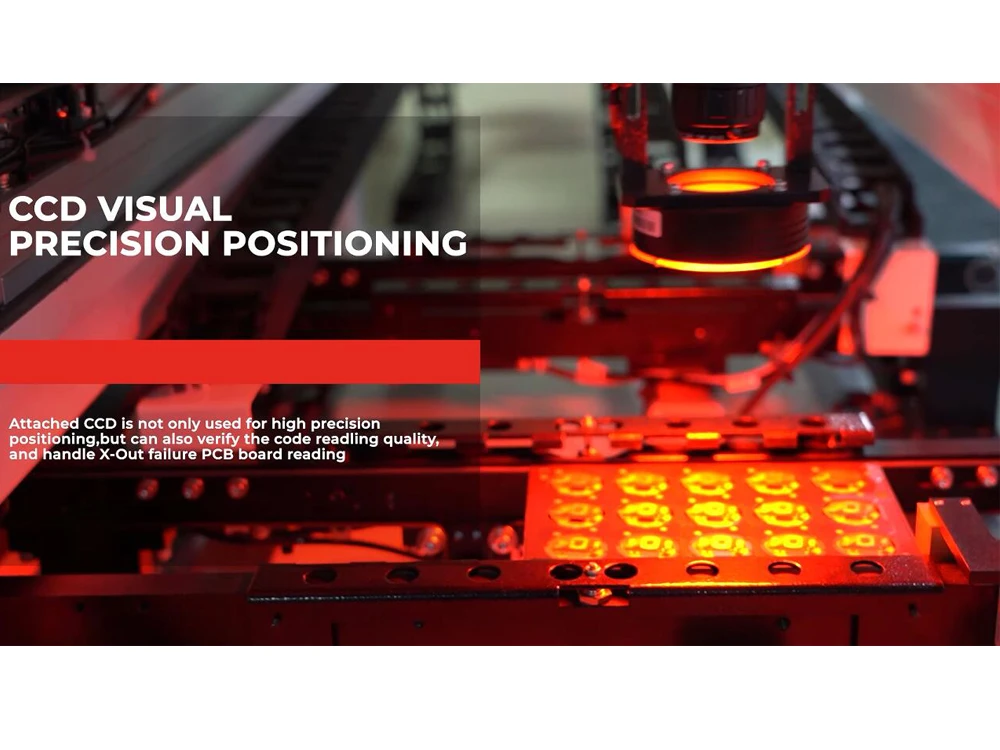

CCD Visual Precision Positioning
Attached CCD is not only used for high precisionpositioning,but can also verify the code readling quality,and handle X-out failure PcB board reading.
Reliable Coding & Traceability
Supports various 1D/2D codes with over 99.9% read rate, featuring self-built online grading, Bad Mark function for defective board skipping, and MES connectivity for data intercommunication and anti-duplication.
Flexible & Customizable Operation
Offers multiple processing configurations (single/double head, dual track), automatic track width adjustment for different product formats, and user-friendly self-developed puzzle software.
SMT Double Head PCB Laser Marking Machine
- Selection of world-class lasers with good beam quality, small heat affected area and high degree of refinement
- The coding function can support various general types of one dimensional codes and two-dimensional codes, and can realize self-built online ratings, with a code reading rate of over 99.9%
- Self-developed puzzle software, friendly interface and easy to operate
- With different lasers, it is compatible with automatic marking of different materials such as green oil, white oil, black oil and metal shielding cover on PCB/FPC board
- Possess industry standard Bad Mark function, which can realize bad board skip or X board marking
- There are multiple processing methods such as single head/double head and double track for flexible selection

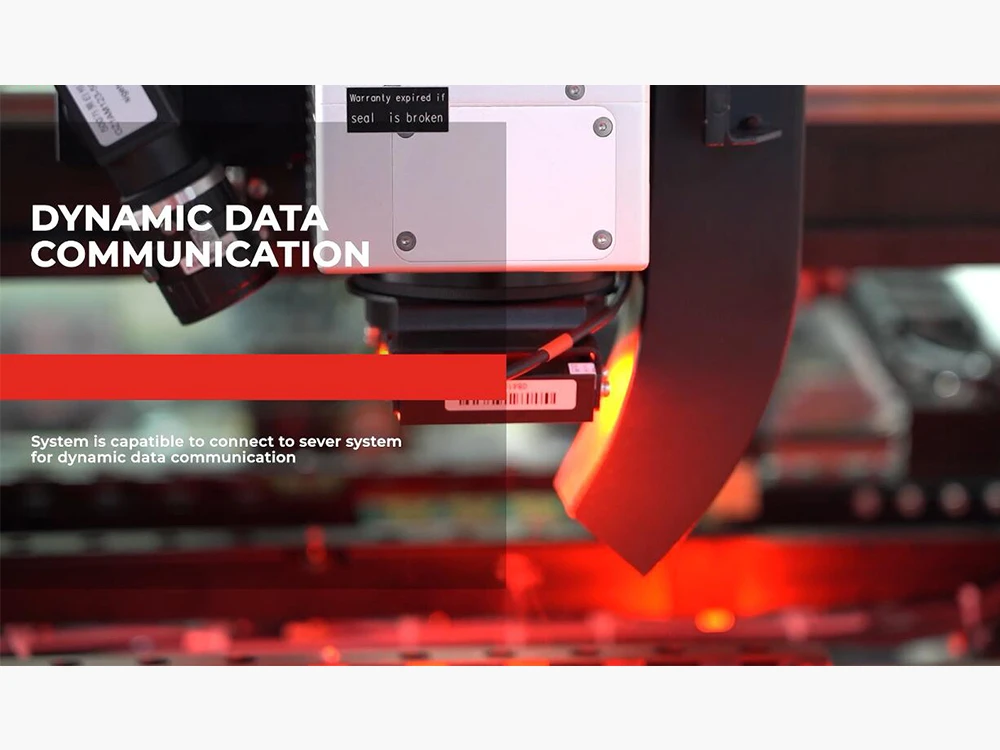

- Can be connected to MES system to realizedata intercommunication and data anti-duplication functions
- The automatic track width adjustment function easily adapts to the processingrequirements of various format products

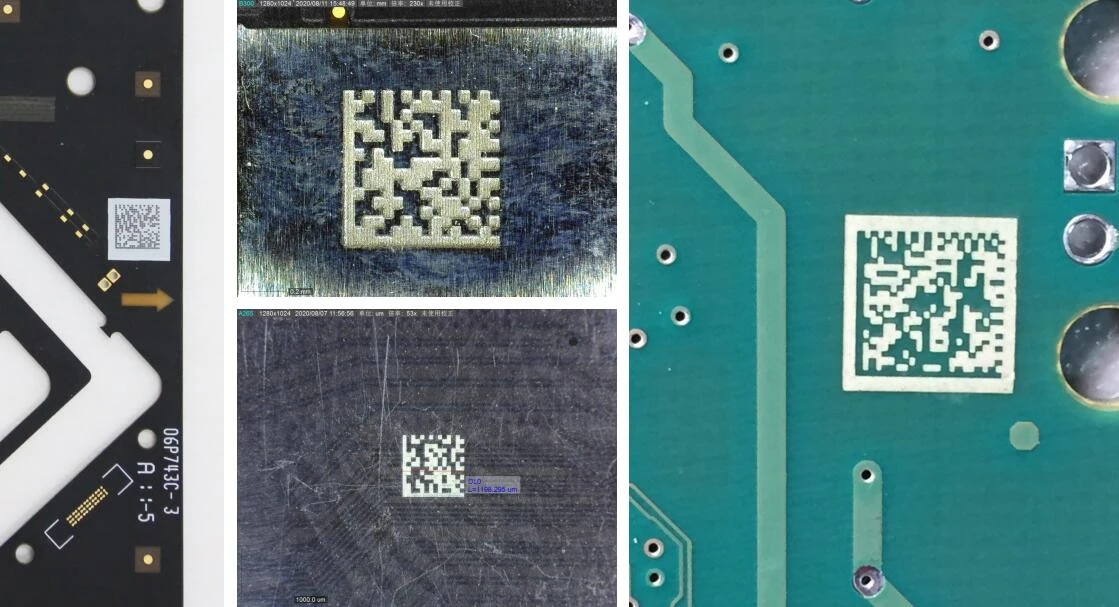

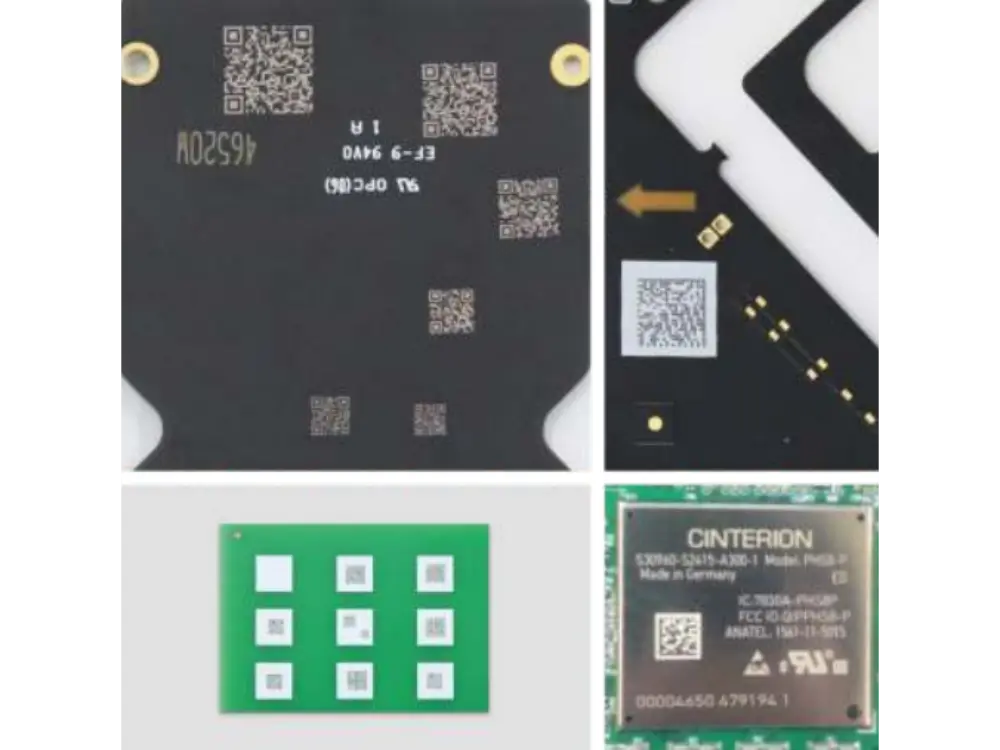

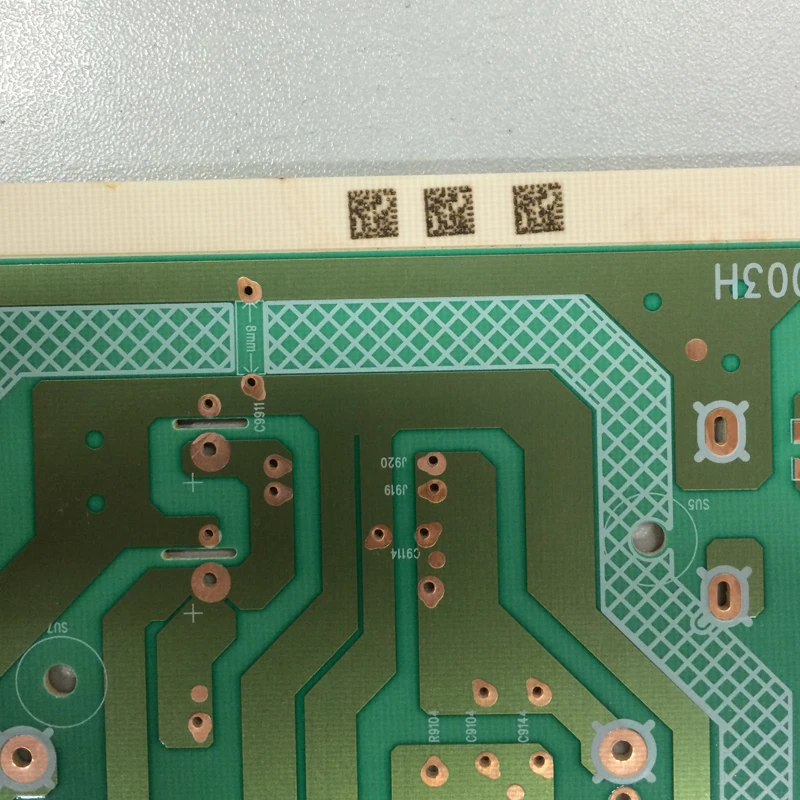

Samples Display
