It is suitable for PCBA production line. Offline/online design can be selected according to needs. Fully automatic laser cutting is carried out through the equipment high-precision control system and industrial vision system to realize the high-precision cutting
FARLEY LASERLAB AUTO: Laser Depaneling Machine
SMT Laser Depaneling Series Machine
It is suitable for PCBA production line. Offline/online design can be selected according to needs. Fully automatic laser cutting is carried out through the equipment high-precision control system and industrial vision system to realize the high-precision cutting requirements of PCBA enterprises without dust and deformation.
Laser Depaneling Machine SMT Series
his PCBA laser cutter supports online/offline use. With industrial vision and high-precision control, it achieves dust-free, deformation-free cutting, featuring fine 10μm minimal line width, 25μm overall accuracy, marble structure and MES connectivity for SMT lines.
Features:
Online / offline optional for PCBA
Min 10μm fine processing line width
Marble structure for stable accuracy
Dust-free & deformation-free cutting
25μm high cutting precision
MES system data interconnection
SMT Laser Depaneling Machine – Technical Specifications
| Laser | Light source | Ultraviolet laser/green laser |
|---|---|---|
| Laser wavelength | 355nm/532nm | |
| Average power | 355nm:15w/20w/25w/30w 532nm:40w/50w/55w | |
| Processing performance | Processing accuracy | ±25 um |
| Effective processing of the surface | 400*330mm*2 Or 400*330mm | |
| Effective area of the lens | 50x50mm | |
| Support document format | DXF/GBR | |
| Power supply specifications | 220V/50Hz/2.5KVA | |
| Environmental conditions of use | Environmental requirements | Temperature 15-30℃, humidity <50% |
| The size of the whole machine | 1300mm*3400mm*1750mm |
High-Performance Laser & Precision Cutting
Adopts international first-class lasers with excellent beam quality, enabling high-quality cutting and fine processing with a minimum line width of 10μm (depending on material). The whole machine delivers a cutting accuracy of ±25μm with high stability (CPK>1.33).
Stable & Reliable Accuracy
The optical path system and work platform are made of marble, ensuring good processing flatness and long-term stable accuracy. A professional cutting visual control system accommodates material differences from different suppliers to achieve consistent batch quality control.
Flexible Production & Data Connectivity
Supports multiple processing modes (offline/online, single/double workstations) and can be seamlessly connected to the MES system to achieve full data interoperability.
Automated & Error-Free Workflow
The fully automated process includes loading, cutting, testing, sorting and unloading, effectively reducing manual operating errors and improving overall production stability.
SMT Laser Depaneling Machine
Equipment characteristics
- Possess industry standard Bad Mark function, which can realize bad board skip or X board marking
- There are multiple processing methods such as single head/double head and double track for flexible selection
- Can be connected to MES system to realizedata intercommunication and data anti-duplication functions
- The automatic track width adjustment function easily adapts to the processingrequirements of various format products
- The equipment has a compact structure, small size, and easy to be embedded invarious SMT production lines.

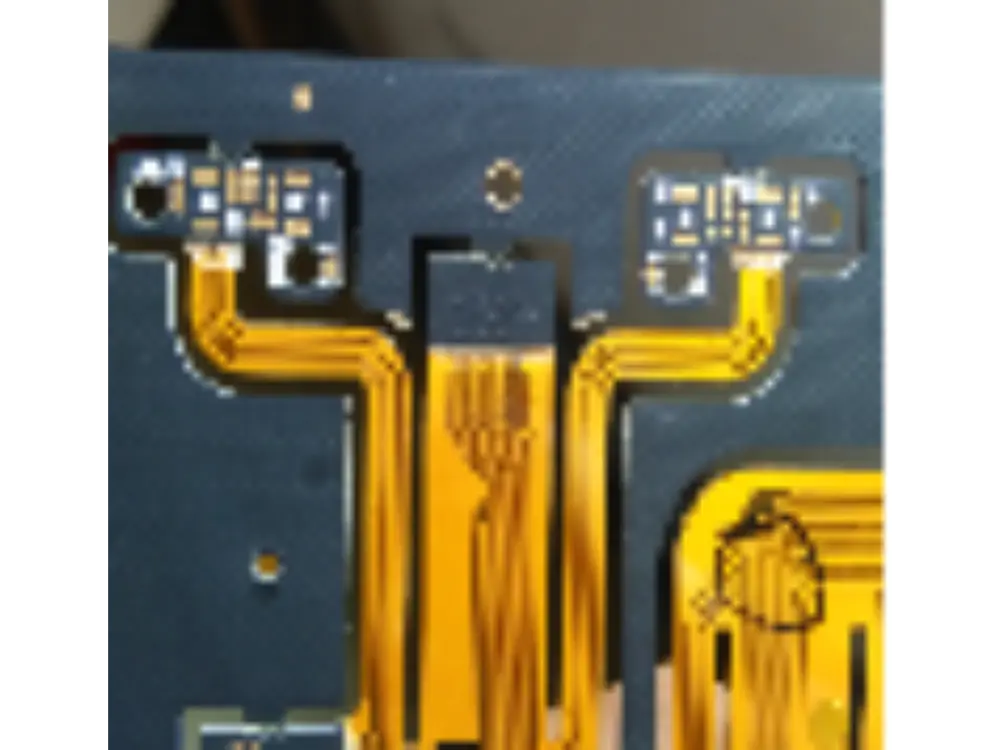

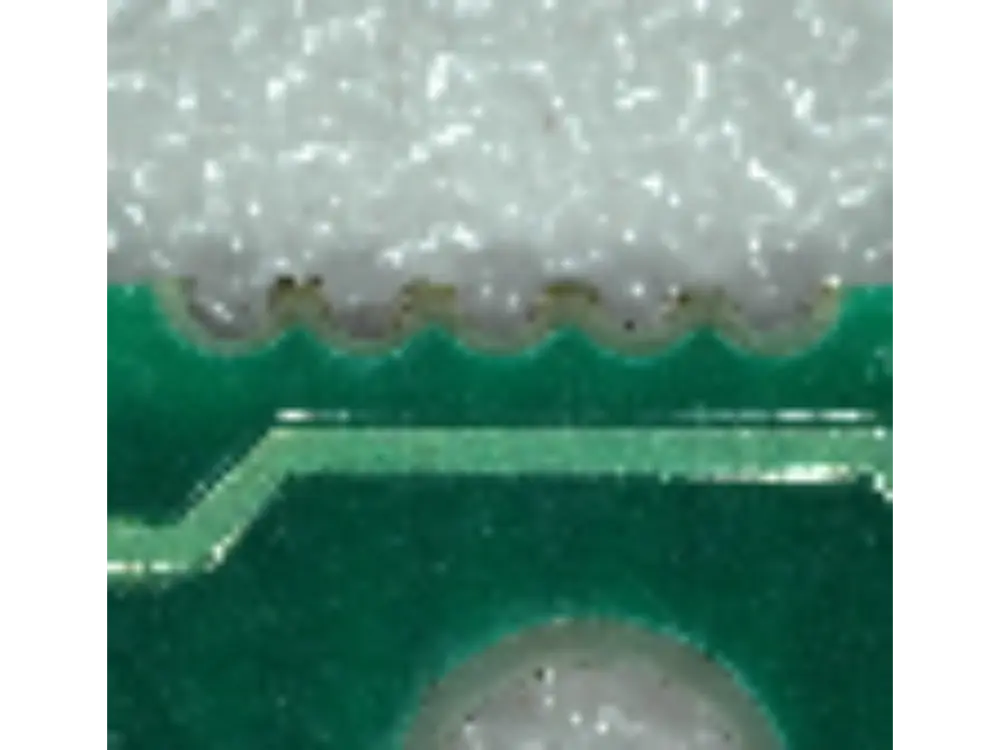

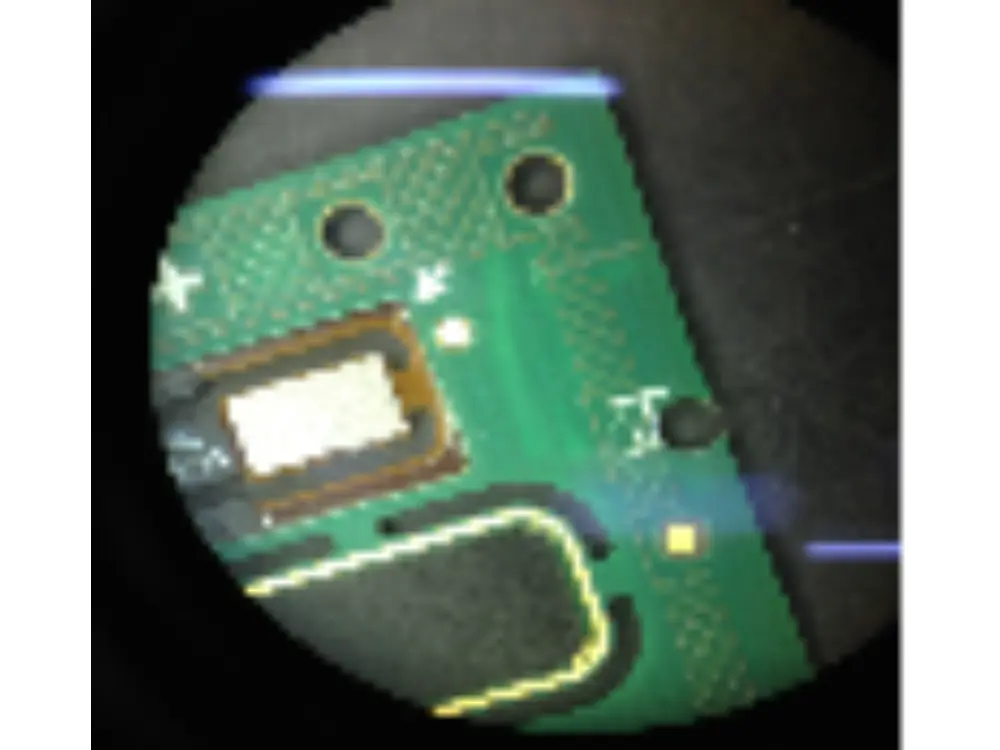

Samples Display
Related products
Applicable to PCBA production line, offline/online mode can be selected according to needs,automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of PCBA

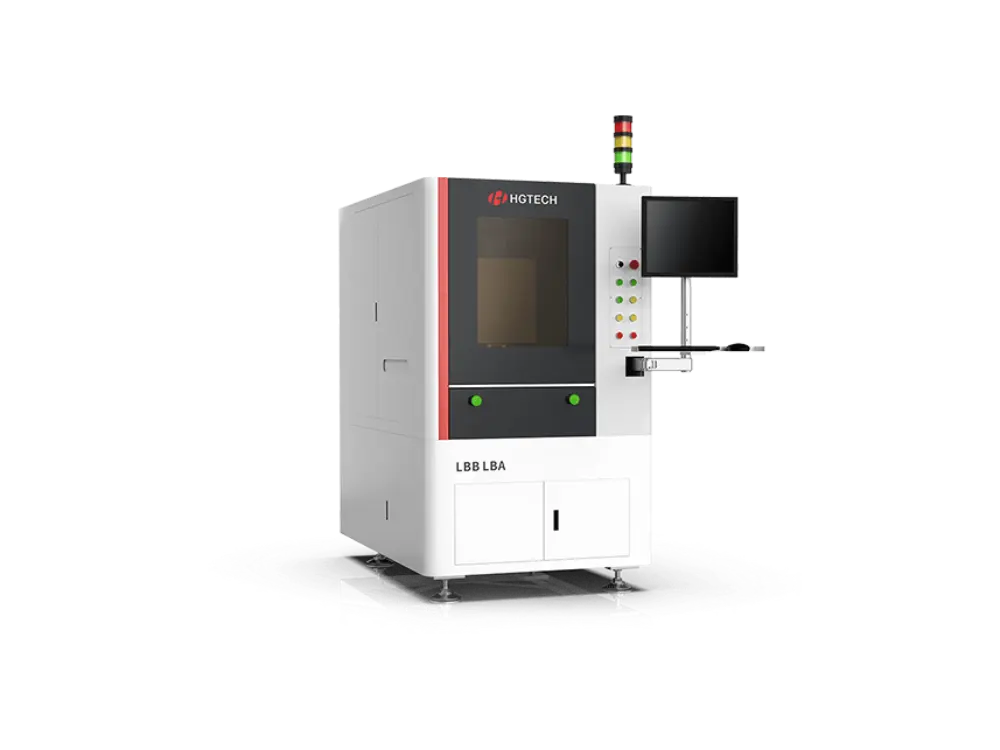

Mainly used for FPC covering film cutting, FPC shape cutting, FPC window half cutting and RFPC cover opening etc. It has high accuracy, high stability and consistent cutting HAZ effect.
PCB Laser Marking Machine from HGLASER is designed for bar codes marking, 2D codes and characters, graphics and other information on any kinds of printed circuit board. Integrated with high-performance CO2 / Fiber laser source, import high-pixel CCD camera and micron-level mobile module
Used for automatic identification and laser marking scrap unit on carrier products, which facilitates efficient and accurate identification of subsequent processes and improves the product yield and process efficiency of customer factories.With the development of printed circuit boards towards refinement
