Fiber Laser Marking 20-100w Flying F Series
The online fiber laser marking machine can make dot matrix or scribbling laser encoding with high quality on fast moving products and meet the demands of all kinds of production lines. This machine can mark letters, numbers, Chinese characters, icons, symbols, one-dimensional bar codes, two-dimensional bar codes, date & time, serial numbers, random numbers and other texts.

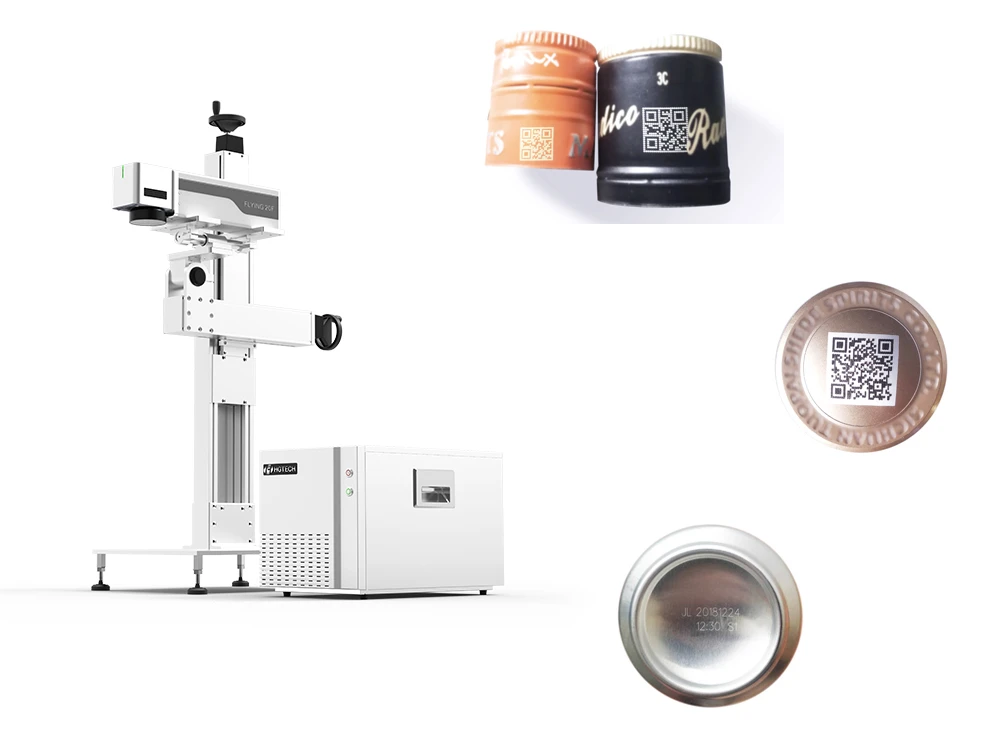

Fiber Laser Marking 20-100w Flying F Series
The online fiber laser marking machine delivers high-quality dot matrix or scribing laser encoding on fast-moving products, perfectly adapting to all types of production lines. It supports marking a wide range of content including texts, barcodes, QR codes, dates, serial numbers and random numbers.It’s widely used in packaging industry, such as anti-counterfeiting laser marking in pharmaceutical industry, anti-counterfeiting traceability system in alcohol industry, anti-counterfeiting marking in food, drink and tobacco, daily hygiene products marking, smart card information marking and pipe online marking.
Features:
High-Speed Online Marking
Variable Information Marking
Barcode & QR Code Capability
Dual Coding Modes
Rich Text & Graphic Support
Universal Production Line Compatibility
Fiber Laser Marking Machine – Technical Specifications
It’s sutable for various metallic material and some non-metallic material. It’s applied for metallic materia after surface processing, PVC, aluminum film, rubber, plastic and HDPE.
| Model | Flying20F | Flying30F | Flying50F | Notes |
|---|---|---|---|---|
| Laser Wavelength | 1.064 um | |||
| Laser Brand | RAYCUS/IPG/SPI | According to the need | ||
| Output Power | ≥20W | ≥30 W | ≥50W | Laser source 100W optional |
| Galvanometer Marking Speed | ≥7m/s | Max 9m/s | ||
| Marking Area | 110mm*110mm | 70mm*70mm,145mm*145mm,175mm**175mm optional | ||
| Marking Focus | Scribing, dot matrix | |||
| Marking Mode | Static and dynamic | |||
| Online Speed | ≤120m/min | Depending on contents | ||
| Marking Material | Metal, alloy, HDPE, film, smart card, etc | |||
| Humidity | Relative humidity<95%, frost-free | |||
| Structure Material | High-quality aluminium alloy and stainless steel | |||
| Editing Mode | Computer software | |||
| Communication Interface | USB interface; RS232 interface | |||
| Power Supply | AV220V/50,60HZ | |||
| Optional Accessories | Photoelectric sensor, color mark sensor, laser sensor, adjustable stand, synchronized encoder, etc | Standard optical fiber sensor | ||
Stable High-Efficiency Marking
Industrial laser source enables fast marking, 24h continuous running to meet mass production needs.
Energy Saving & Cost Effective
High electro-optic conversion rate, low power consumption and long service life to cut operational costs.
Compact & Easy Installation
Small footprint with dedicated bracket, easy to mount on assembly lines and flexible to adjust.
Global Layout & Wide Application
User-friendly operation for diverse anti-counterfeiting and tracing scenarios, supported by worldwide service outlets.

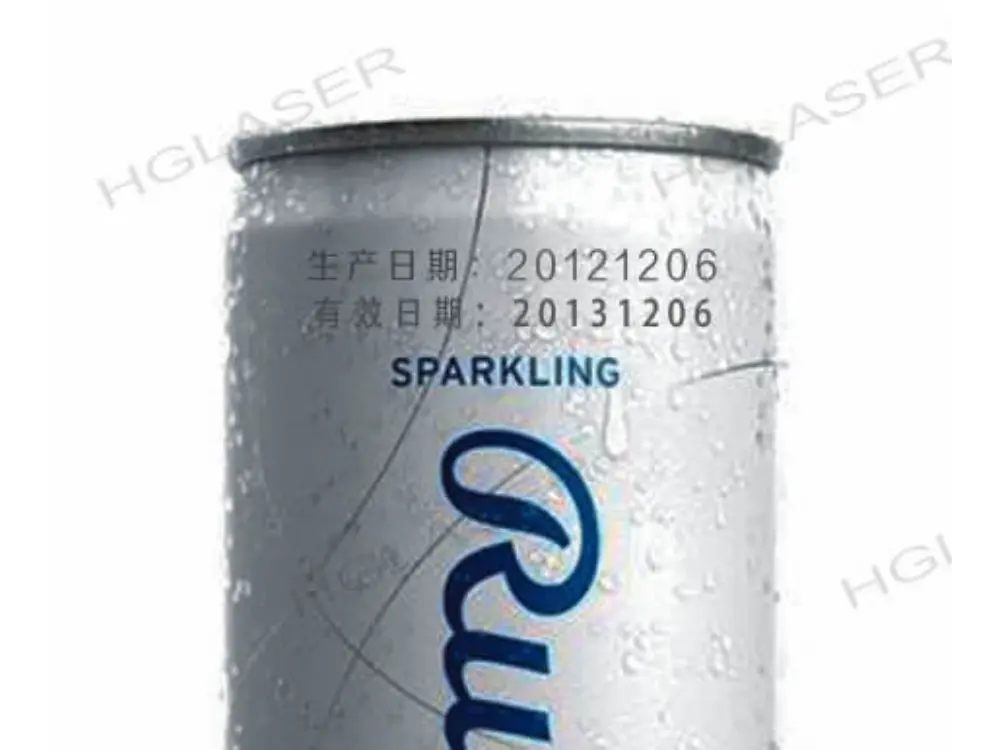

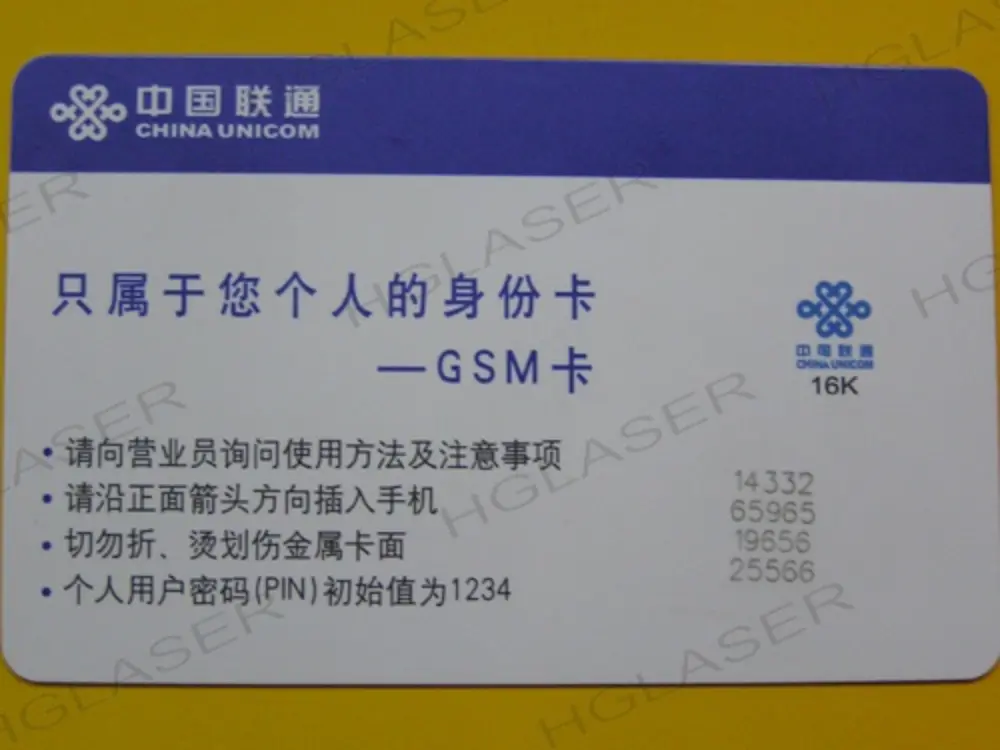

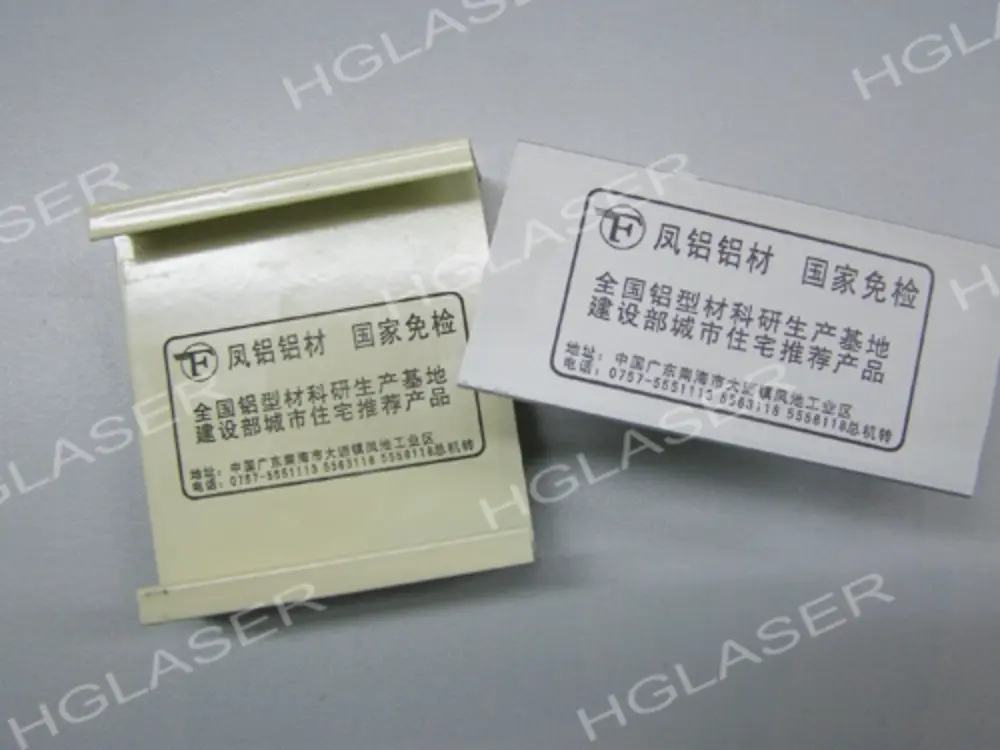

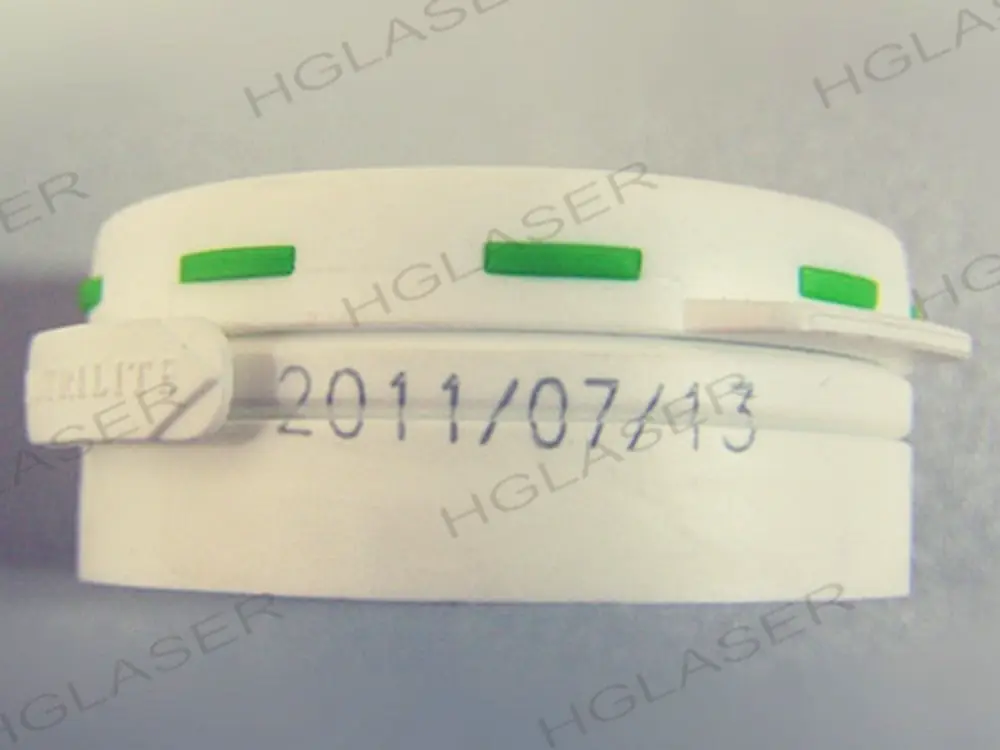

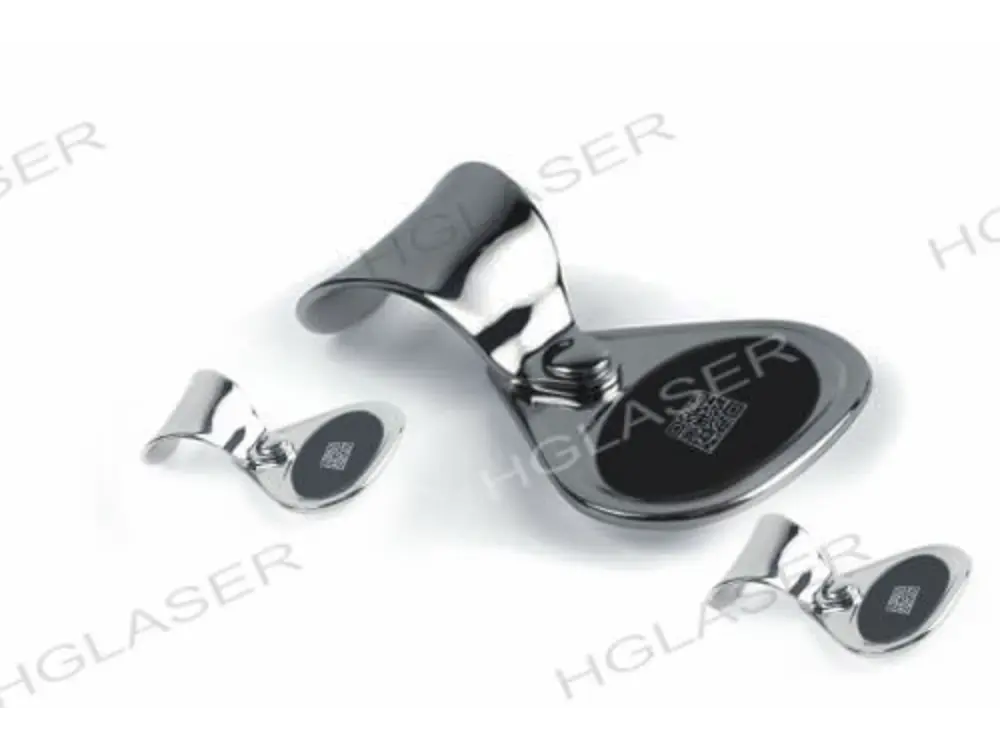

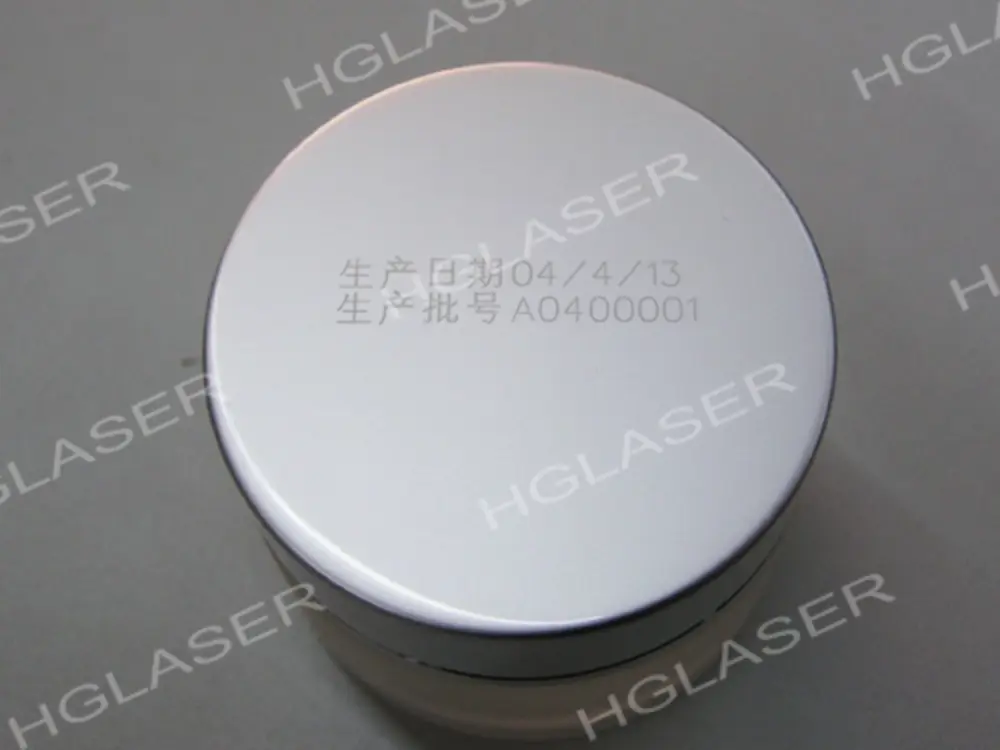

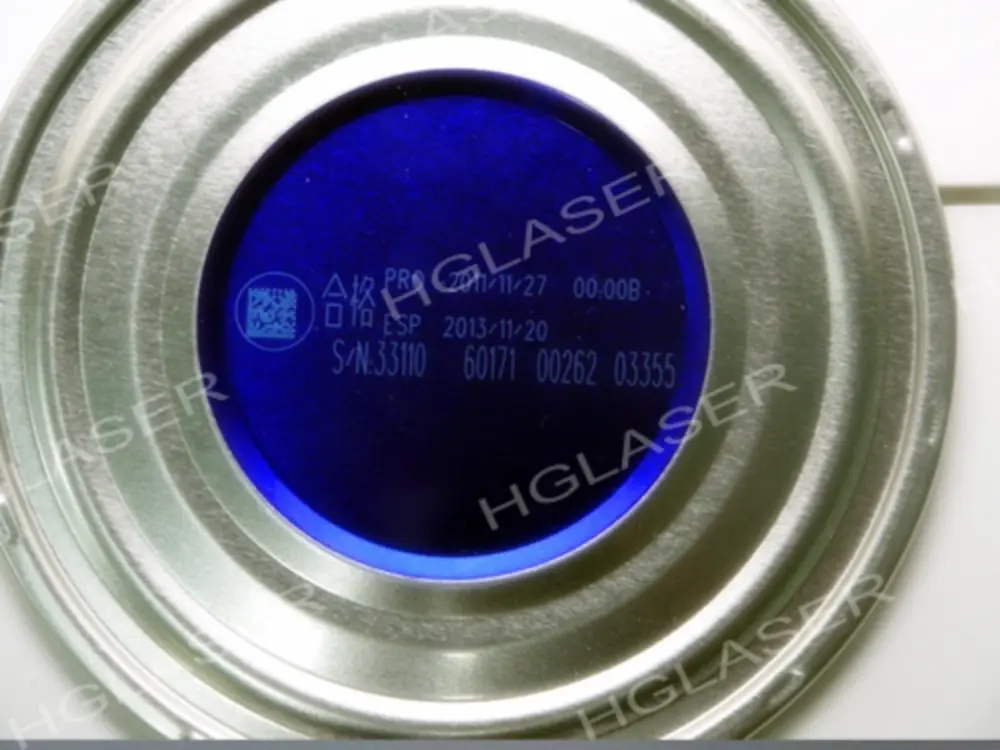

Samples Display
