Smart HP Series 100W 200W 300W Portable Handheld Air-cooled Pulse Laser Cleaning Machine
The newly developed Smart-HP Air-cooled Pulse Laser Cleaning Machine by HG Star combines compact size and portability. Equipped with a retractable handle and universal wheels, it offers customers great flexibility in movement, making it suitable for a variety of application scenarios.
Handheld Laser Cleaning Machine HP Series
Smart-HP is a compact, portable air-cooled pulse laser cleaner. It features flexible mobility, a lightweight cleaning head and user-friendly multilingual system, efficiently removing rust, oil and oxide layers.
Features:
Compact and portable air-cooled pulse design
Retractable handle and universal wheels for easy movement
Powerful cleaning for rust, oil and oxide layers
Ultra-light cleaning head for flexible operation
Multilingual support and built-in process packages
Intuitive self-developed control system
Handheld Laser Cleaning Machine – Technical Specifications
| MODEL | SMART HP | ||
|---|---|---|---|
| Laser Type | Pulse | ||
| Power | 100W/200W/300W | ||
| Max. Single Pulse Energy | 1.5mJ | ||
| Pulse Width | 150-190ns adjustable | ||
| Beam Quality | <1.8(M2 ) | ||
| Laser Instability | <5% | ||
| Laser Adjustment Range | 0-100%(gradient adjustable) | ||
| Repetition frequency | 5-200kHz(gradient adjustable) | ||
| Fiber Length | 3.5m | ||
| Cooling Method | Air cooling | ||
| Operation Method | Handheld | ||
| N.W | 25Kg | ||
| Machine Size | (L*W*H)=435mm x 260mm x 500mm | ||

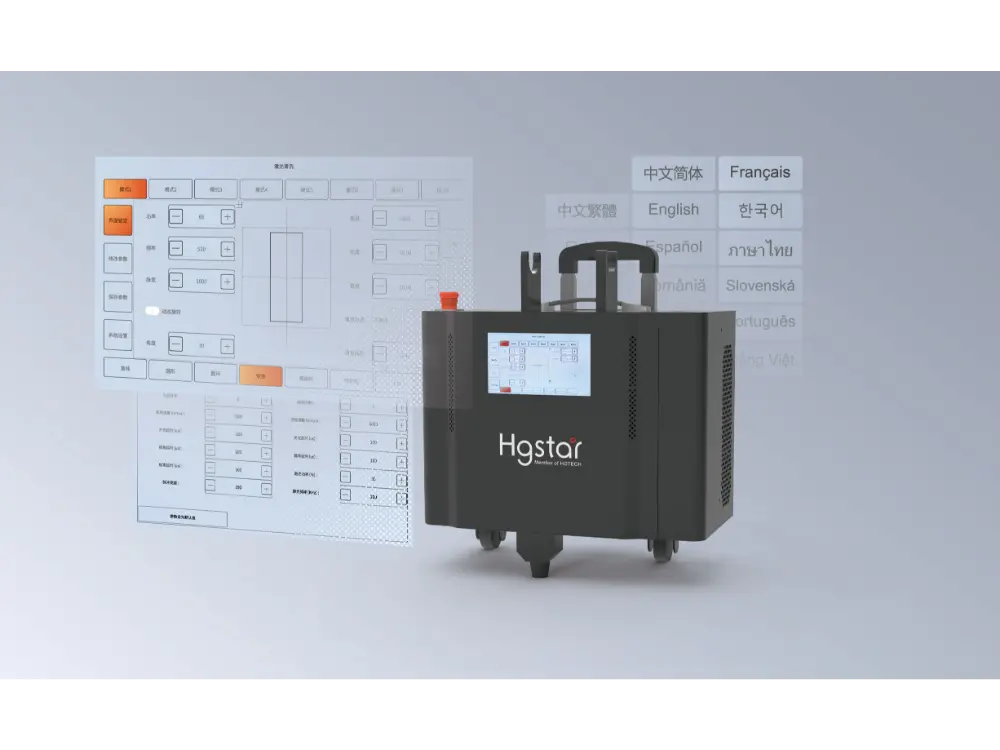

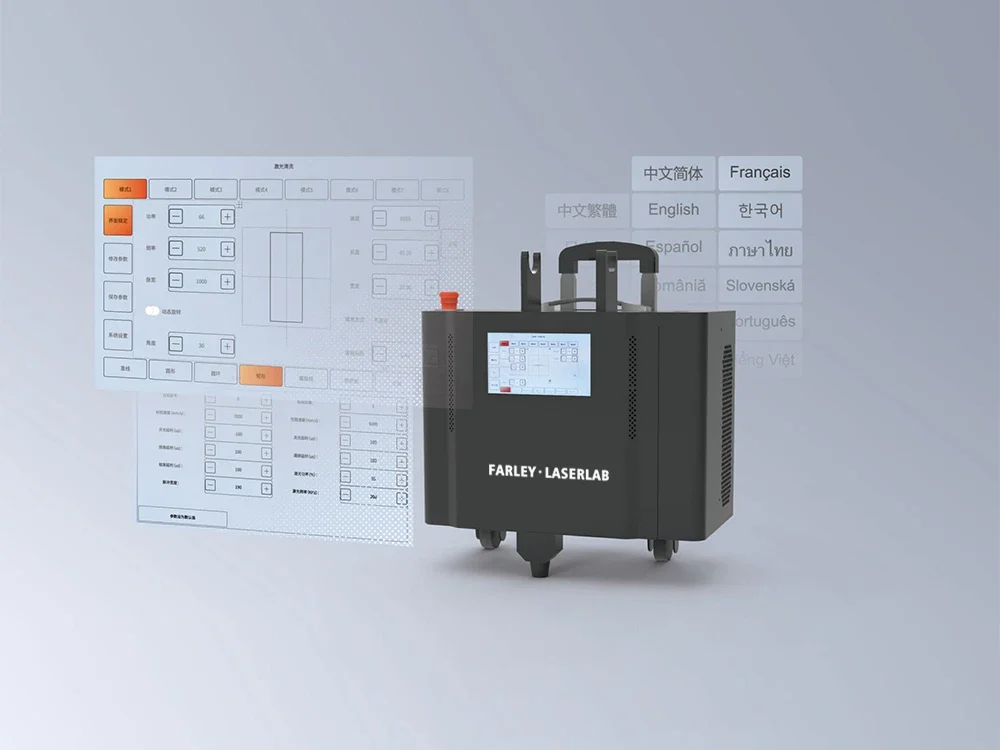

Smart System, One-Click Efficiency
The machine features a selfdeveloped system with a touch screen interface that is simple and intuitive. It supports easy switching between 17 languages, ensuring effortless operation regardless of the user’s location.
With built-in process packages, one-click operation delivers efficient cleaning, significantly improving productivity.

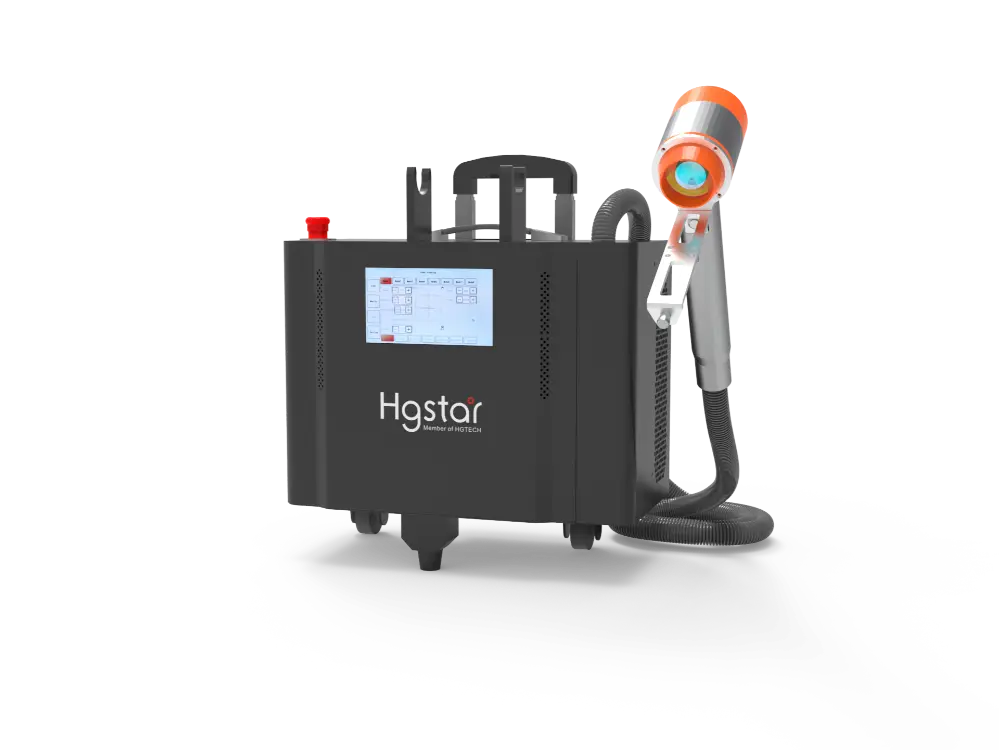

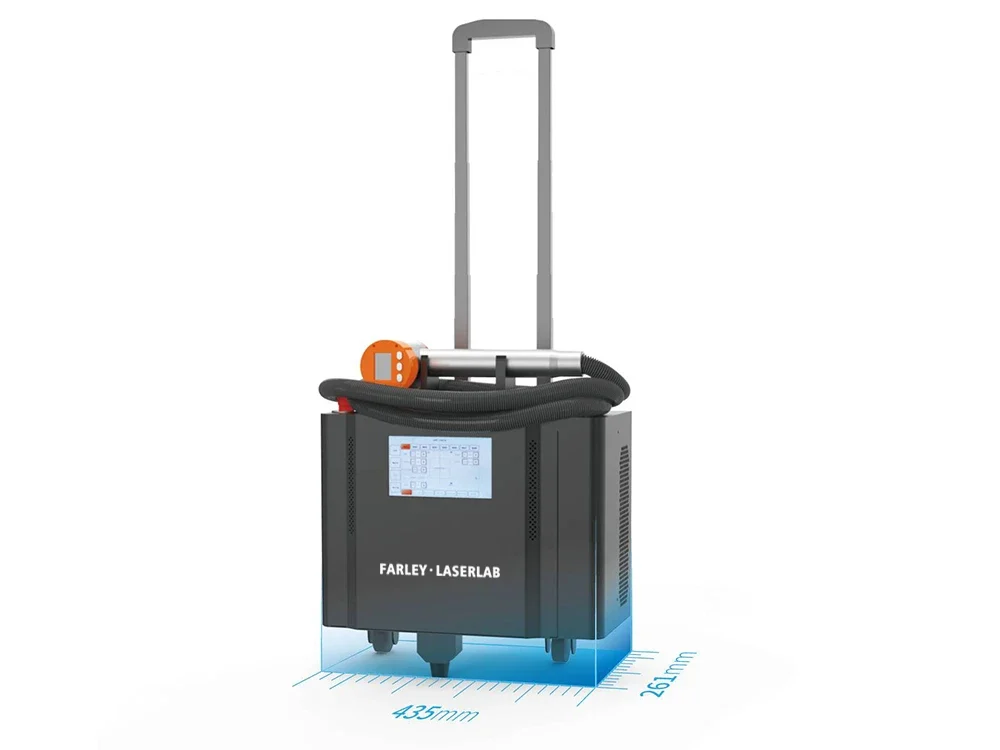

Portable & Compact
This machine has a compact design, requiring only 0.12m of space and weighing just 25kg. Equipped with a retrac-table handle and universalwheels, it offers easy mobility and adaptability to various application scenarios, making it an ideal choice for flexibleand efficient work.

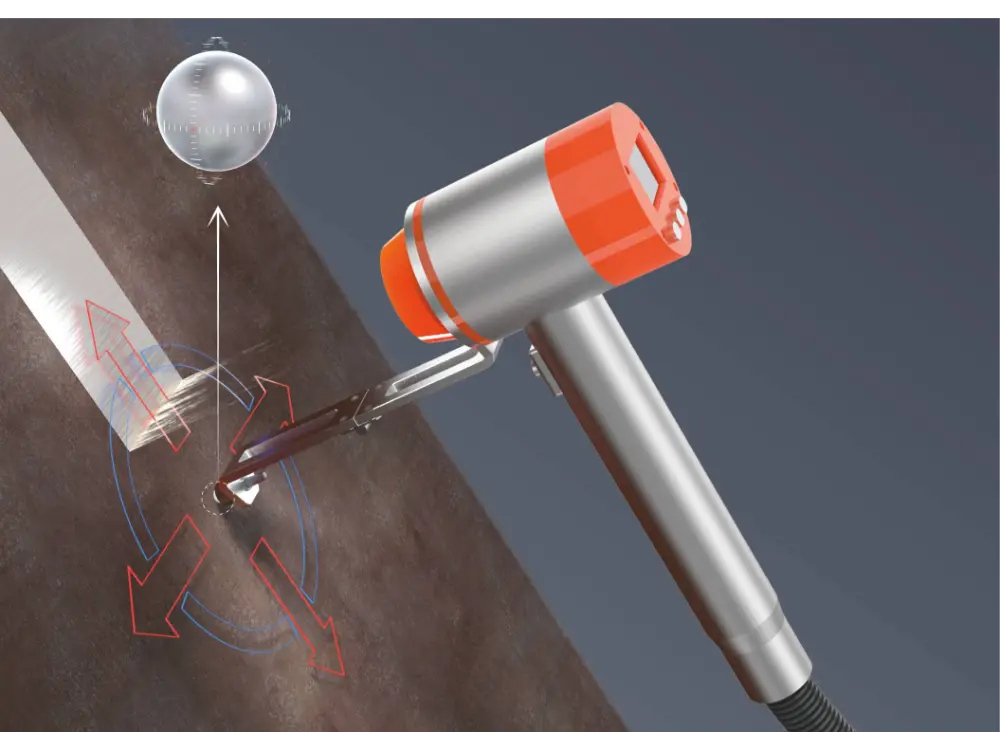

Fixed-Focus Bracket
The machine is equipped with a fixed-focus bracket, allowing precise focusing and 360-degree rotation of the cleaning surface, which greatly reduces cleaning resistance and enhances operational flexibility.

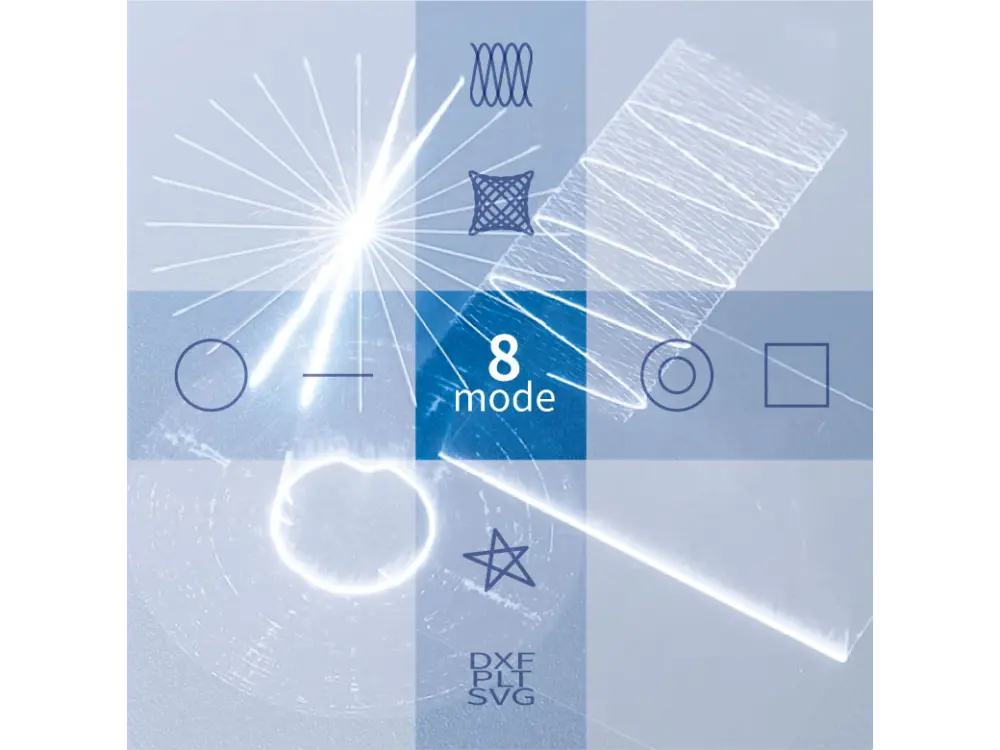

Dual-swing Design
Supports 8 cleaning modes to meet diverse cleaning needs.

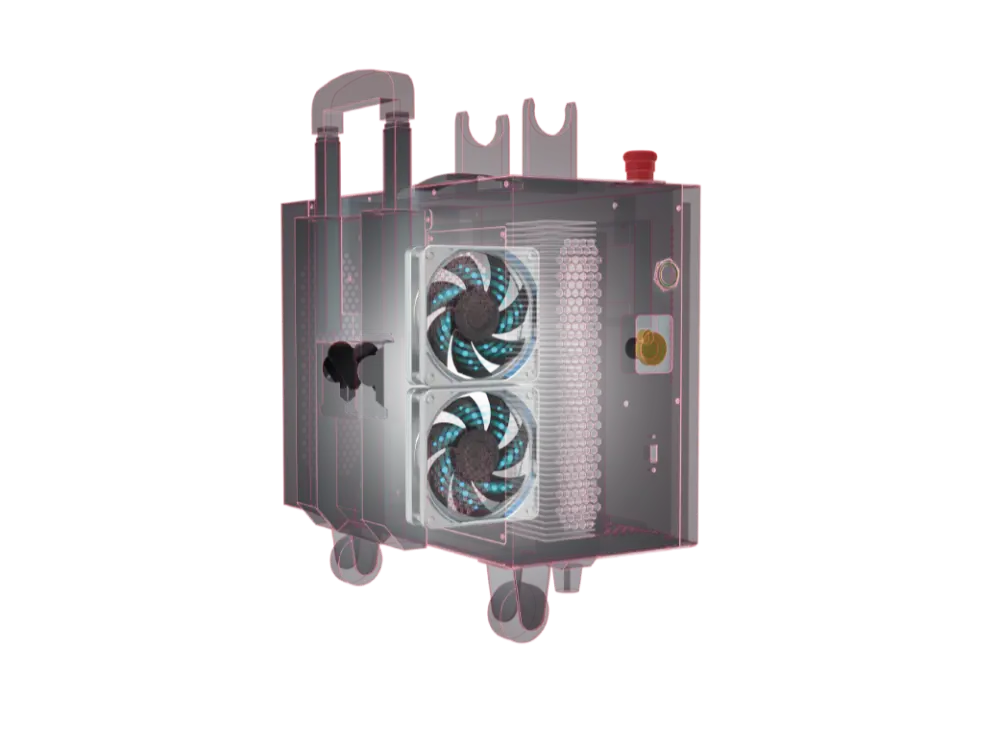

Air-cooled System
Operates without a traditional water-cooling system, making it easier to transport and reducing costs.

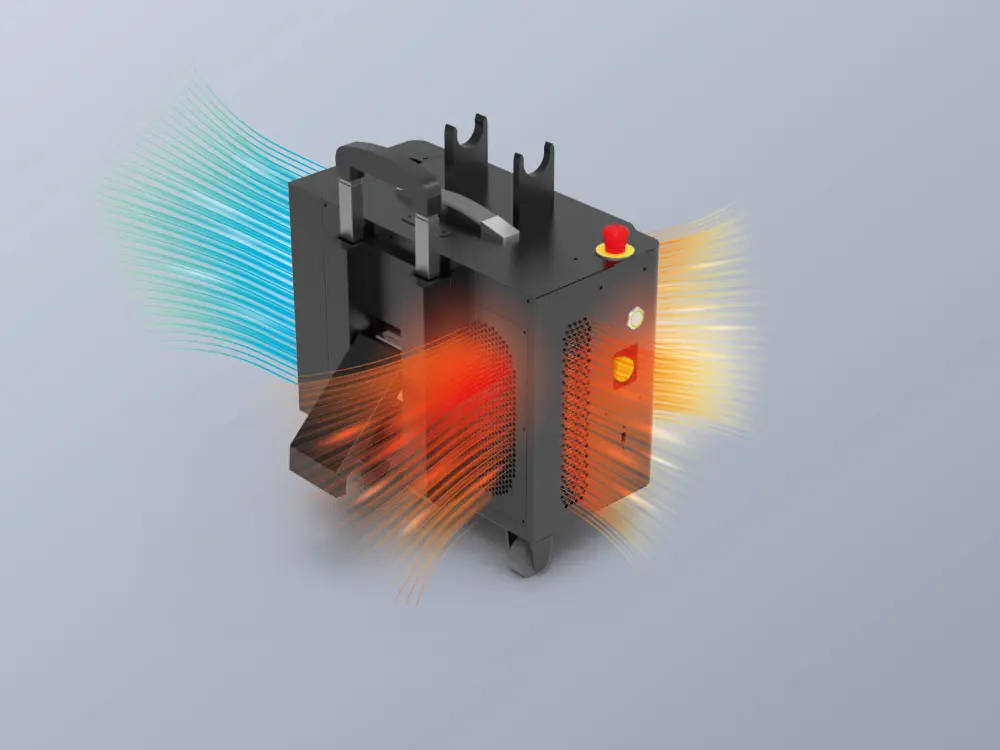

Efficient Cooling
Cooled by air through four powerful exhaust vents, ensuring efficient heat dissipation.
Cleaning Scope
Industry Applications
