FARLEY LASERLAB AUTO: Portable Laser Cleaning Machine
HC Series Portable Laser Cleaning Machine
Laser Cleaning Machines, Both Manual and Automated Whether you need a handheld, manually loaded, or fully automated laser cleaning solution, our experts can assist you in selecting the right machine and options. Paint, oxide, rust, and other contaminants can be removed from metal surfaces using our machines. With laser texturing, they can also improve surface adhesion.
Laser cleaning machine can be used for metal rust removal, oil cleaning, local quenching, surface roughening, coating removal, weld cleaning.

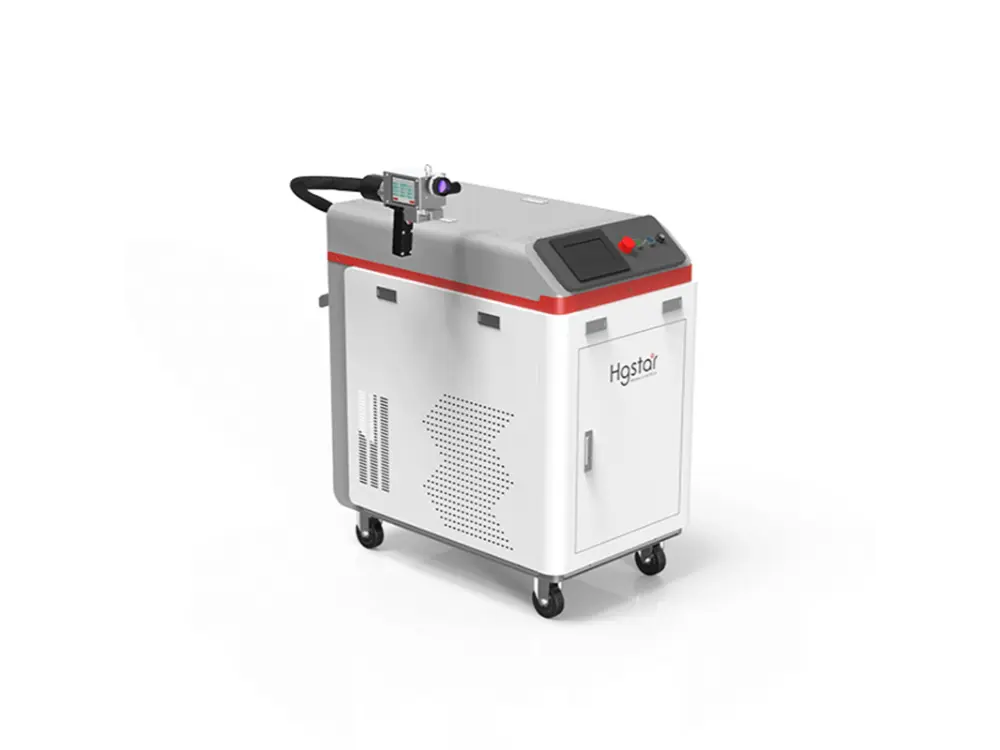

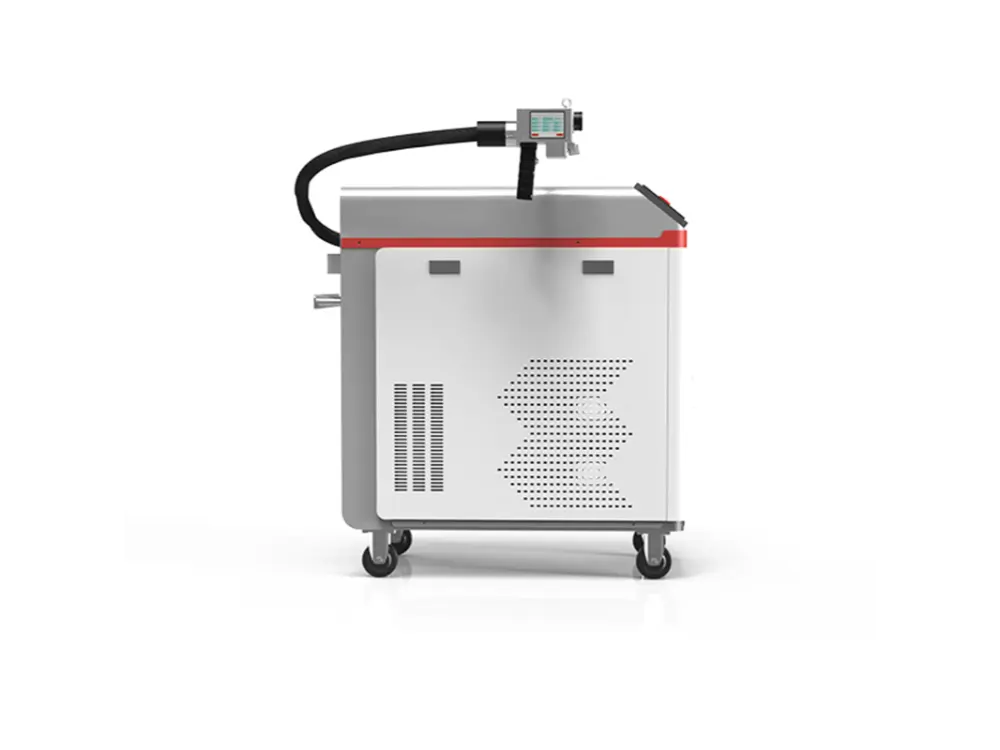

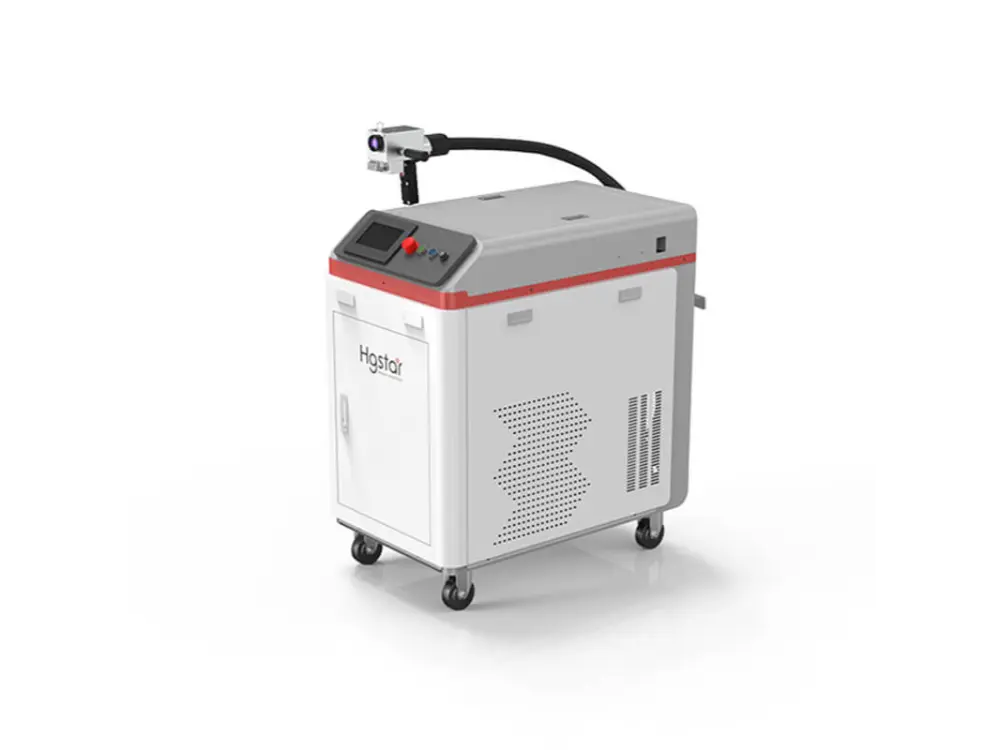

Portable Laser Cleaning Machine HC Series
We offer both manual and automated laser cleaning machines including handheld, manually loaded and fully automated models, with expert assistance available for machine and option selection. These machines effectively remove paint, oxide, rust and other contaminants from metal surfaces, and can also perform laser texturing to enhance surface adhesion.
Features:
Dual Mode Options
Expert Selection Support
Laser Texturing Capability
Multiple Machine Types
Enhanced Surface Adhesion
Comprehensive Contaminant Removal

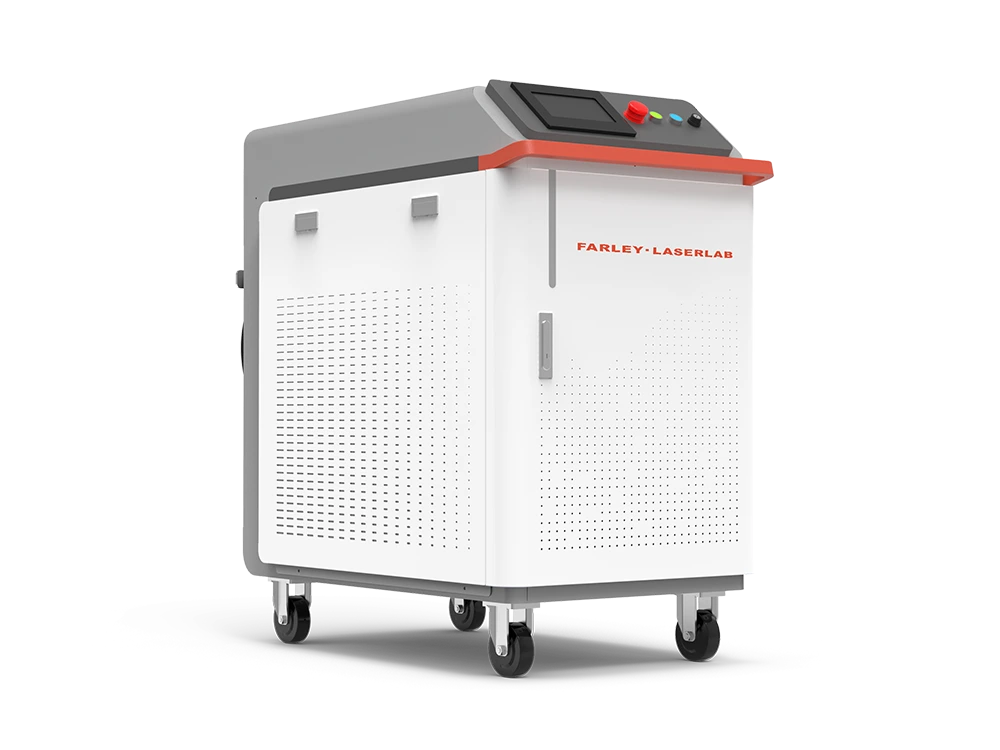

Smart HP Series Laser Cleaning Machine – Technical Specifications
| MODEL | SMART HC | |
|---|---|---|
| operating environment | ||
| voltage | 220V / 380V 50 / 60HZ | |
| power consumption | < 8000W ( including water cooler ) | |
| working temperature | 5℃~ 40℃ | |
| optical parameters | ||
| laser power | CW | 1000W / 1500W / 2000W |
| PLUSE | 100W / 200W / 300W / 500W | |
| Wavelength type | Continous / Pluse | |
| Power stability | better than 5% | |
| Power adjustment range(%) | 10-100 (gradient adjustable) | |
| Repetition frequency(KHz) | 20-200 (gradient adjustable) | |
| Fiber length | 5-10m | |
| Cooling method | Water-cooled | |
| Cleaning head parameters | ||
| Scanning range | 5mm ~ 120mm , Continuously adjustable | |
| Focal length of field lens ( mm ) | 160mm (Optional 160mm-500mm ) | |
| Depth of focus | max 10mm | |
| Mechanical parameter | ||
| Overall size | about 1055mmx620mmx1090mm | |
| Total Weight | about 190K | |
| cleaning head weight | about 1.9kg ( including isolator) | |
| Operation method | hand-held / automated | |
Wobble cleaning heads
The newly designed cleaning head is comfortable to hold and equipped with touch display, which is convenient to adjust various parameters at any time.

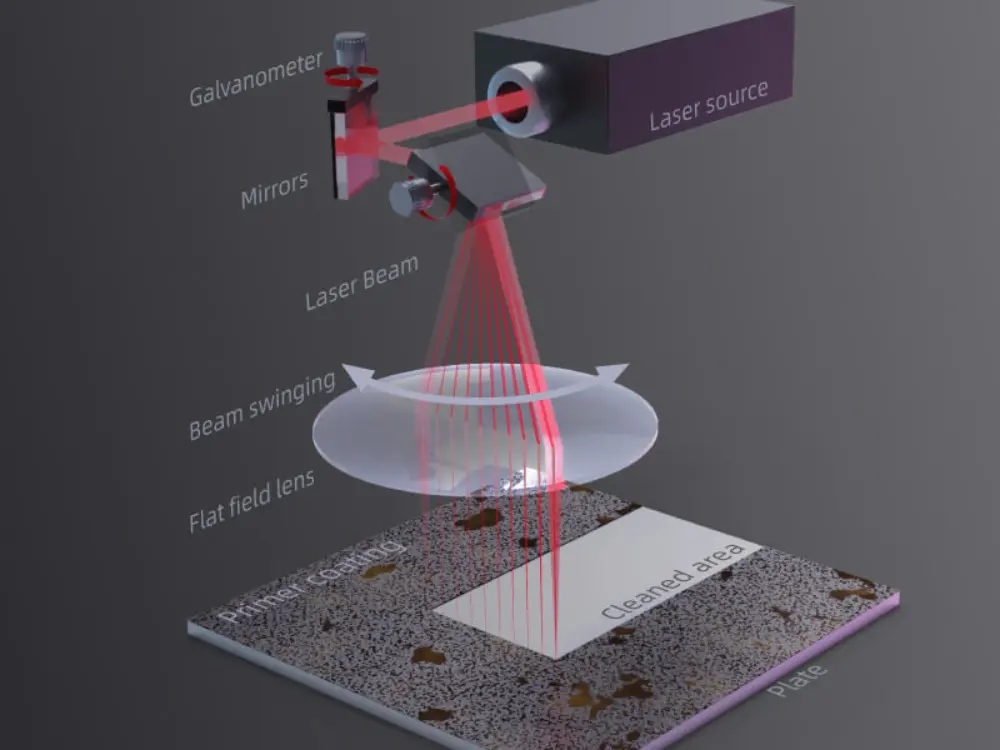

Multiple Scanning Modes
Six cleaning modes can be provided (only one linear mode for single axis ), which can be switched freely according to the actual scene requirements.
Reliable & Stable Fiber Laser Technology
Using a laser cleaning machine, you can remove rust and contaminants efficiently and quickly, and you can choose the parts to be removed and realize the automation of cleaning.
- Fast set-up
- Easy to operate
- Virtuallymaintenance-free
- LOW operating costs
- Easy to automate
- Possibility toclean in motion
- Green process
- Highly reliable
- No consumablemedia

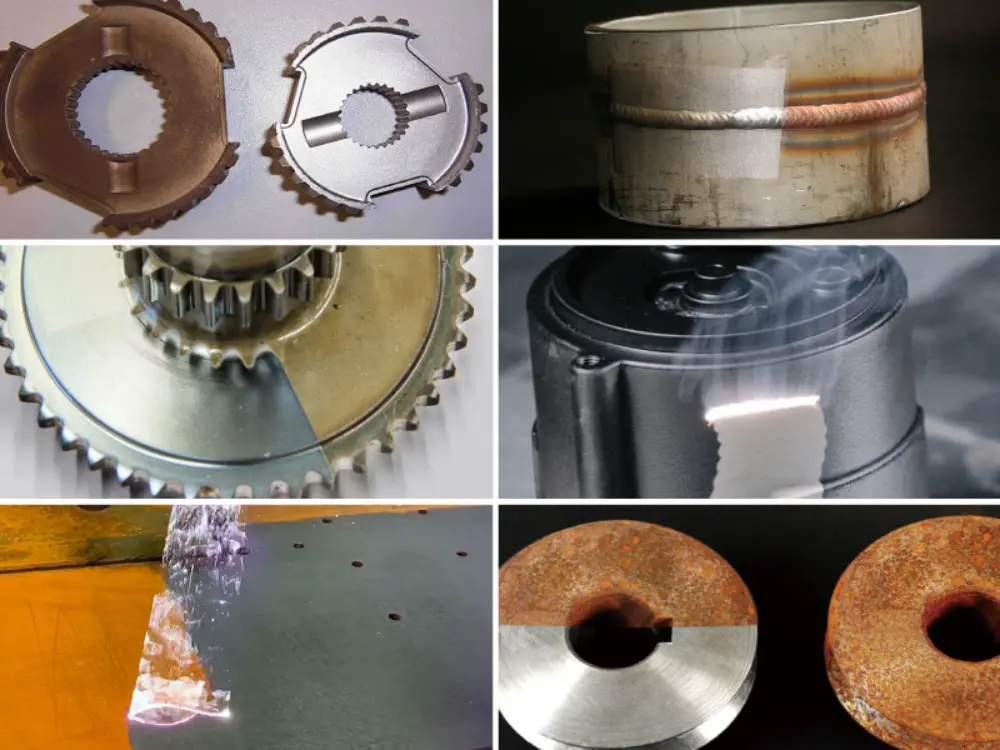

Laser cleaning samples
Laser cleaning can remove various types of contaminants from the surface of various materials, to achieve a cleanliness that can not be achieved by conventional cleaning. It can also selectively clean the material surface without damaging the material surface.
