Laser Punching and Welding Integrated System for Automobile Bumper RC Series

FARLEYLASERLAB RC Series have independently developed the first set of bumper cutting and welding integrated intelligent equipment in China, which can realize laser cutting and Ultrasonic welding on the same equipment

Send Inquiry

Description

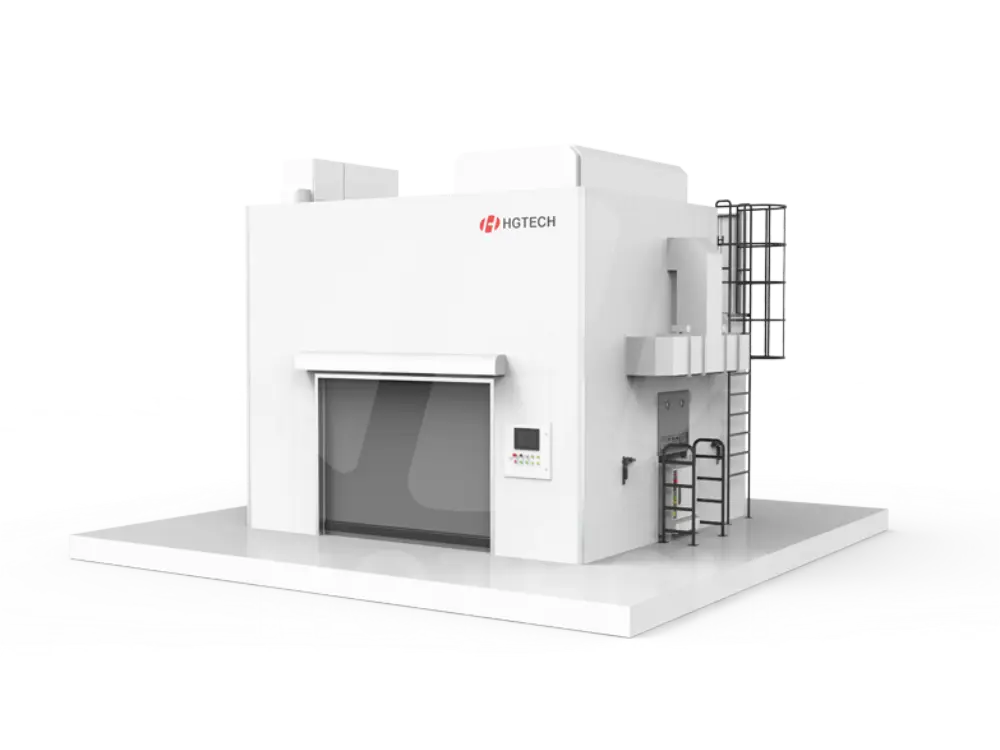

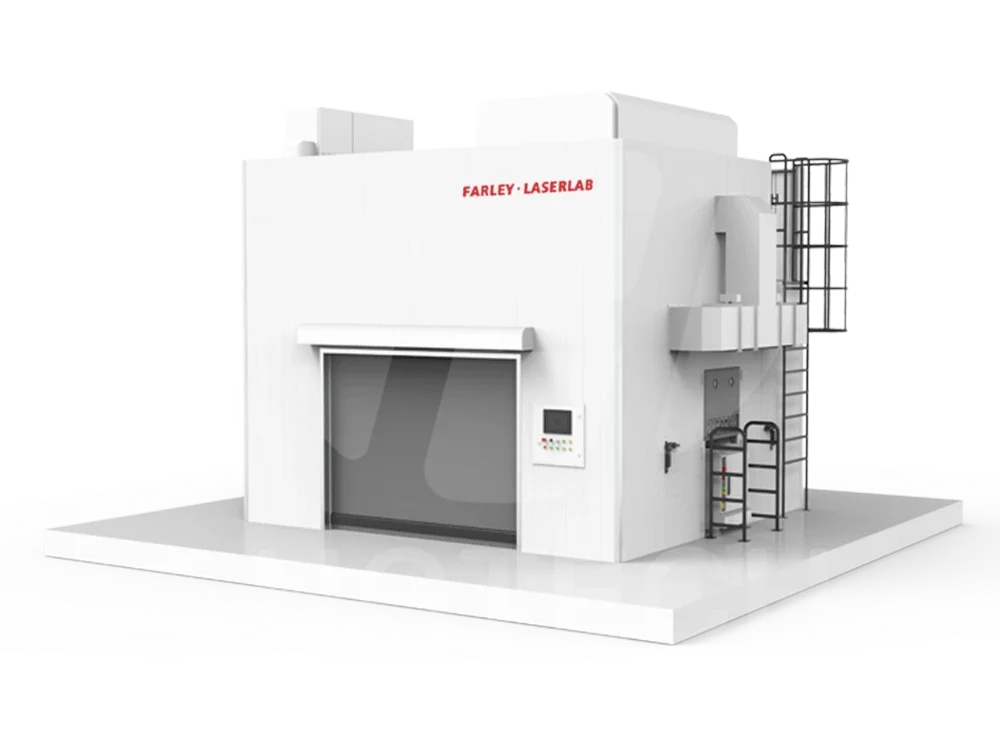

FARLEY LASERLAB AUTO: Bumper Laser Integrated Machine

Laser Punching and Welding Integrated System for Automobile Bumper

Bumper Laser Integrated Machine RC Seires

This integrated system is dedicated to automotive resin bumpers, performing laser cutting for various holes and ultrasonic welding for radar brackets. Equipped with high-precision robot and high-performance laser generator, it features stable operation, high efficiency, low cost and multi-function integration. Independently developed by HGLASER, it suits passenger cars, new energy vehicles and bus manufacturing.

Features:

All-in-one cutting & welding for auto resin bumpers

High-precision robot delivers great flexibility

One machine supports multiple production processes

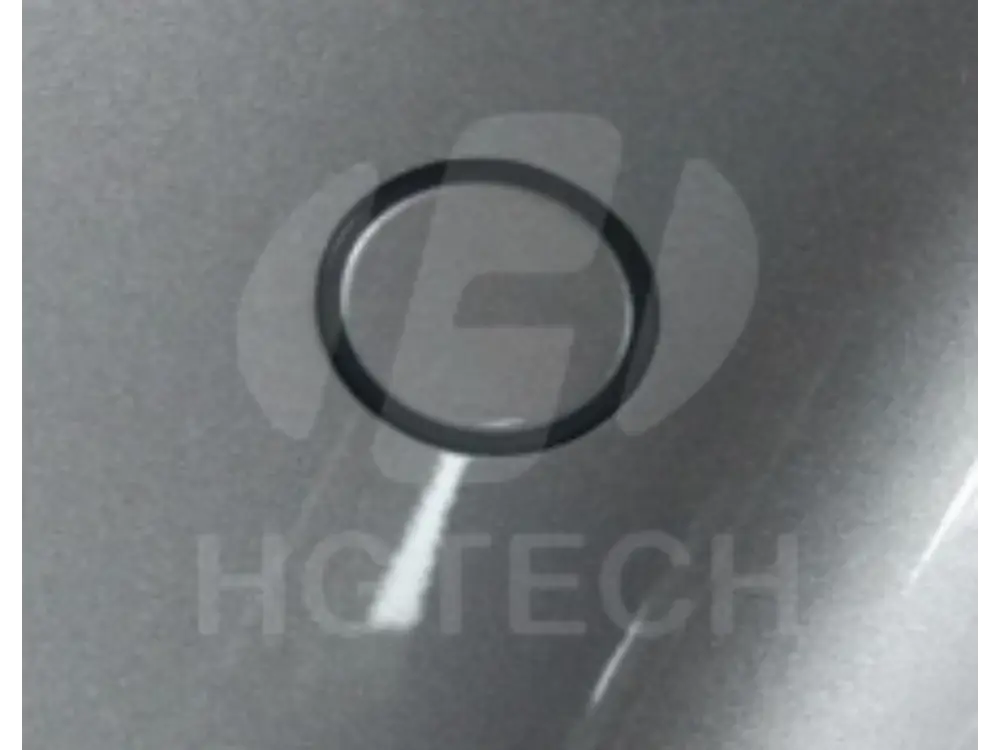

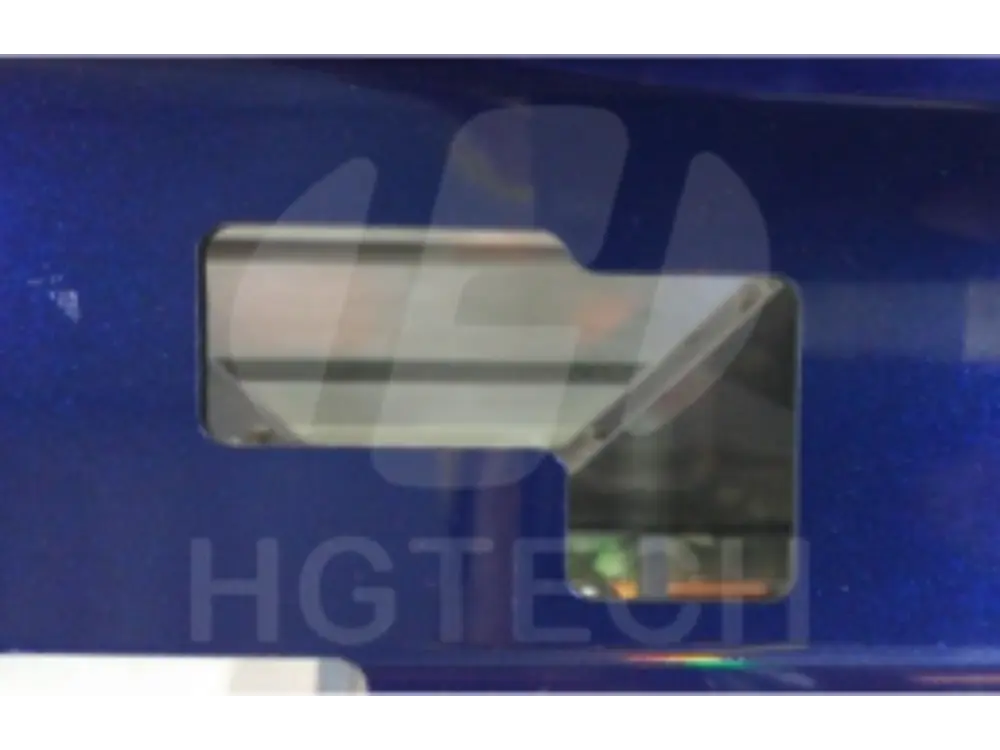

Processes radar holes, license holes and lamp holes precisely

Stable performance, high productivity and low operating cost

Widely used in passenger cars, new energy vehicles and buses

Bumper Laser Integrated Machine – Technical Specifications

RC series bumper fiber laser flexible stamping and welding all-in-one machine is mainly used for welding operations such as cutting machine radar brackets of automobile front and rear bumpers (resin materials) radar holes, license plate frame holes, headlight cleaning holes and other holes, which can realize multiple uses in one machine.

Equipment model	RC series
Scope of robot processing	0 to 2700 mm
Robot can choose the brand	Brand, imported brand
The laser can be matched	CO2 gas laser; 250w (recommended)
Robot repeat positioning accuracy	0.05-0.06mm
Flexible processing system	PLC control, multi-functional and humanized HMI interface
Cutting head	With high-precision orthogonal XY interpolation shaft; stroke 50*50
Additional functions	Optional ultrasonic welding function for welding all kinds of brackets

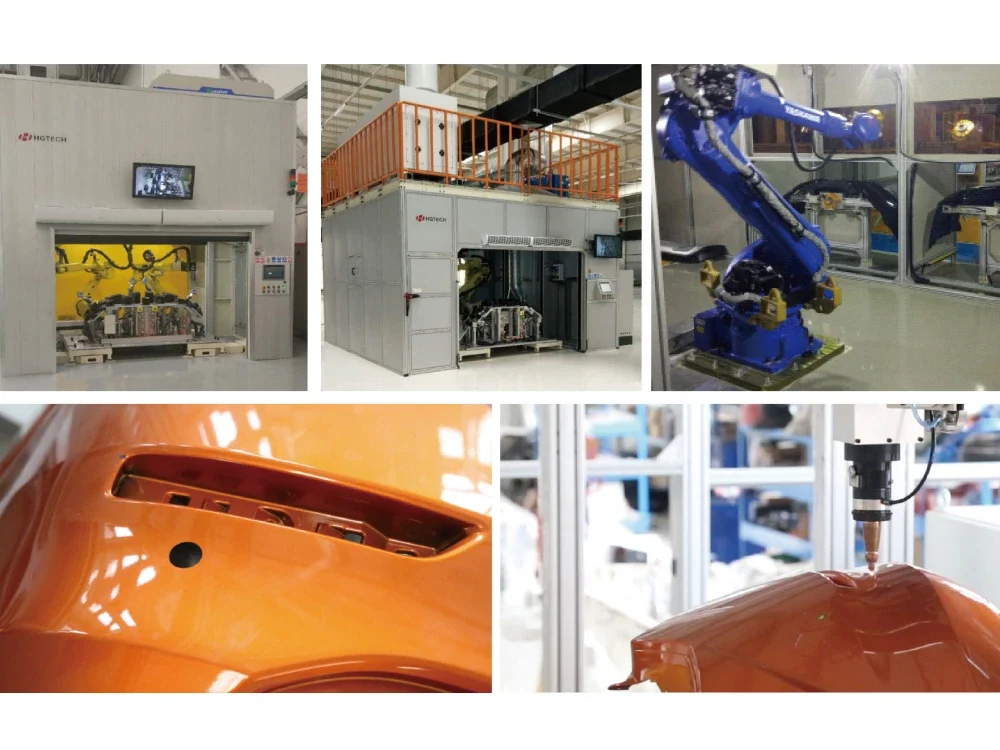

Intelligent equipment for bumper cutting and welding

This equipment is an integrated intelligent equipment for bumper cutting and welding independently developed. It is widely used in major automobile OEM.

Flexibility can realize multi-use in one machine

Highly integrated laser cutting and ultrasonic welding functions, one machine can be used for multiple purposes, one loading, and all processing processes can be completed.

The first dual-robot double-cutting system

Equipped with the first dual-robot dual-cutting system in China, it can achieve cutting, welding and parallelization, and achieve high-beat production.

High accuracy, “0” consumables, low cost

The self-developed small hole cutting function can reach 0.1MM with cutting accuracy; and laser processing does not need to consume tools or punches, which can truly achieve “0” consumables and save a lot of usage costs.

Hundreds of cutting graphics to meet the mixed production of different models

The process database can store hundreds of cutting graphics. The standard mold change interface can ensure fully automatic and fast mold change. On the basis of not changing the equipment configuration, it can realize one-time cutting of round holes or special-shaped holes of various sizes, which meets the mixed production of different models.
