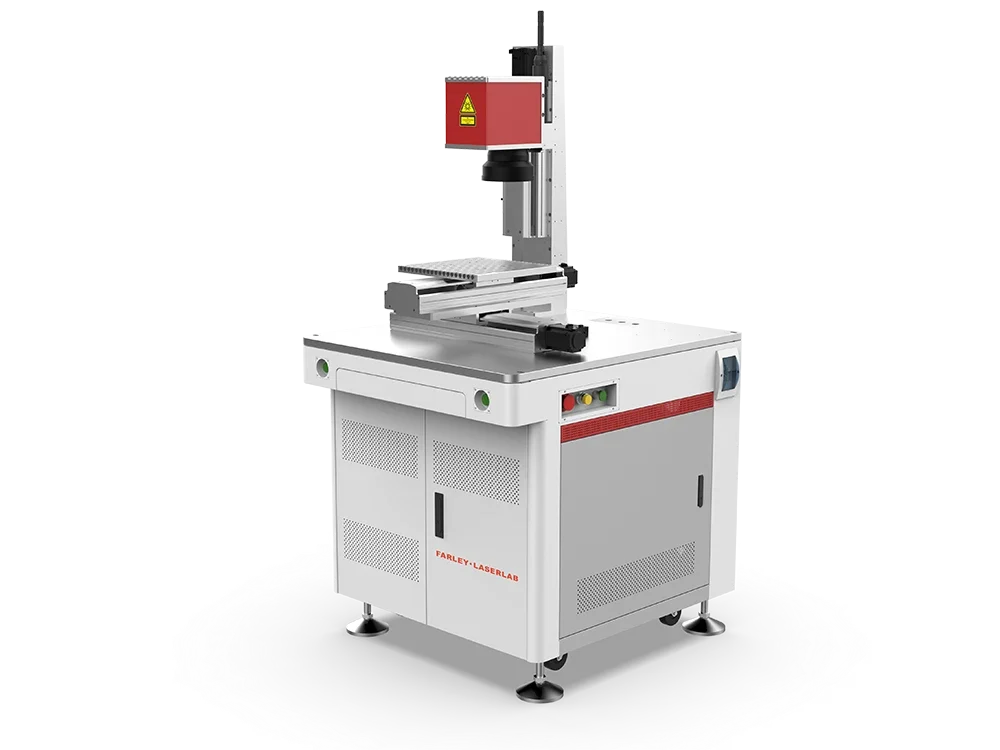

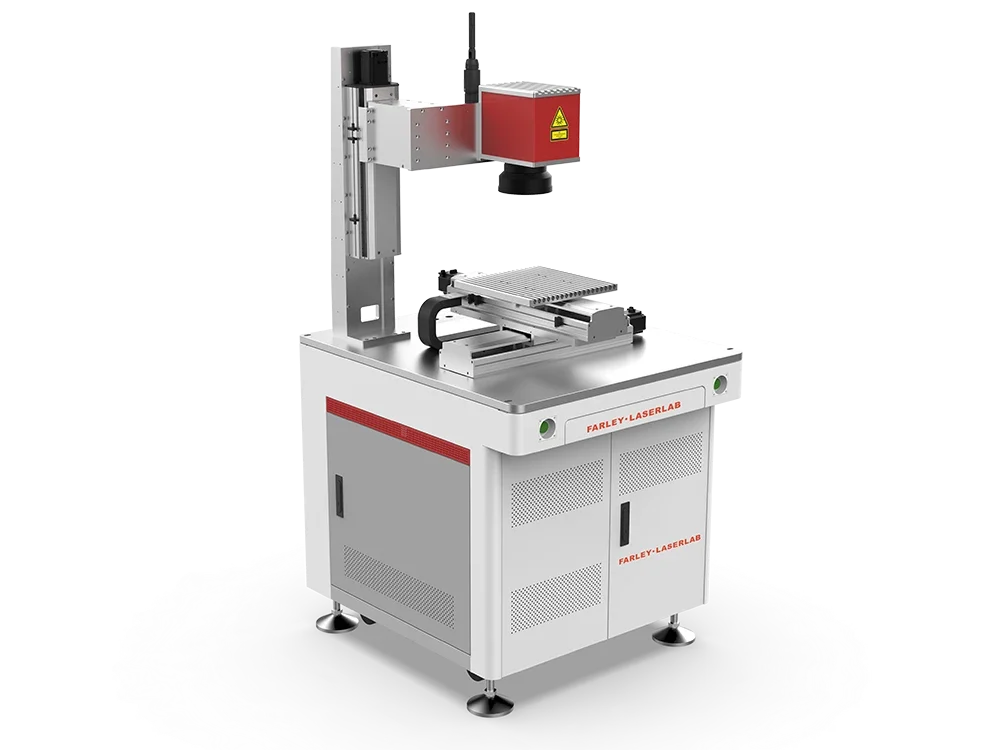

Laser Galvanometer Welding Machine LWF-QC Series

Using quasi-continuous fiber lasers,it is very suitable for the industrial applications with higher requirement to long pulse width and high peak , such as spot welding, seam welding, drilling, etc.

Send Inquiry

Description

FARLEY LASERLAB AUTO: Laser Galvanometer Welding Machine

Laser Galvanometer Welding Machine LWF-QC Series

Using quasi-continuous fiber lasers,it is very suitable for the industrial applications with higher requirement to long pulse width and high peak , such as spot welding, seam welding, drilling, etc.

Laser Galvanometer Welding Machine LWF-QC Series

This Fiber Laser Galvanometer Welding Machine adopts quasi-continuous fiber laser, ideal for precision spot welding, seam welding and drilling. It features tiny focused spot, low maintenance, air-cooled compact structure, and is easy to integrate into automated lines for welding copper, nickel alloy and stainless steel.

Features:

Adopts quasi-continuous fiber laser source

Tiny focused spot ensures high power density welding

Air-cooled compact design for easy line integration

Suits long pulse width and high peak power applications

Low operation and maintenance cost

Precision welding of copper, nickel alloy and stainless steel

Laser Galvanometer Welding Machine – Technical Specifications

Particularly suitable for precision laser welding (spot welding, seam welding, drilling) of copper alloy, nickel alloy, stainless steel and other materials.

Equipment model	LWF150QC
	Laser Type /Wavelength: Fiber/1070nm
Welding laser parameters	Fiber optical spliting number: 1-4 path
	Working medium: Yb-doped fibers
	Laser: IPG QCW Fiber lasers 150W
	Fiber core diameter: 50um
	Fiber length: 5m(Standard)10m(Optional)
	Maximum peak power: 1500w
	Maximum average power: 150W
	Output power: 150(Pulsed)250(CW)
	Single point maximum energy: 15J
	Beam quality (BPP): 1-2mm×mrad
	Pulse repetition frequency: OHz≤F≤2500Hz
	Pulse Width: 0.2-25ms Continuously adjustable
	Minimum focusing optical spot diameter: 0.2~0.4mm(Depends on the material)
Galvanometer parameters	Repeat positioning accuracy: <8μrad
Lens parameters	Collimation lens: F=125(Standard)F=100(Optional)
Optical output characteristics	F=170mm,70×60mm(Standard); Scanning range (flat field F- θ lens):F=210mm,90×80mm(Optional); F=254mm,110×110mm(Optional)
Cooling system	Cooling method: Air cooling
System properties	System power supply: 200-240 VAC,50/6OHz 2200w Environmental requirements: Temperature 10～35°C,humidity≤70% Manual lift range: Stroke 385mm
Overall dimensions	Overall appearance: 640mm×820mm×1550mm

QCW Fiber Laser Wedling Machine Technology

Cost-effective Quasi-continuous Laser Welding Machine
Multi-material Galvanometer Laser Welder
Compact Air-cooled Laser Welding Equipment
High-precision Fiber Laser Galvanometer Welding Machine

High-precision Fiber Laser Galvanometer Welding Machine

Adopts quasi-continuous fiber laser, perfectly matching industrial demands for long pulse width and high peak power. It supports spot welding, seam welding and drilling, ideal for precision processing of copper alloy, nickel alloy and stainless steel.

Compact Air-cooled Laser Welding Equipment

Features air-cooled integrated design with small footprint and low maintenance cost. Easy to integrate into automatic production lines, it delivers high power density via tiny focused spot for stable and efficient machining.

Multi-material Galvanometer Laser Welder

Professional for precision welding and drilling of various metal materials. With fine focused spot and stable laser output, it meets diverse processing requirements in mainstream industrial manufacturing scenarios.

Cost-effective Quasi-continuous Laser Welding Machine

Designed for high-standard industrial welding applications. It combines reliable laser performance, simple structure and easy system integration, cutting daily operation and maintenance costs greatly.
