Intelligent Factory Solution (multiple units) LCL Series
The laser cutting flexible production line includes multiple sets of laser cutting automation warehouses. Each set of laser cutting automation warehouses consists of a warehouse system, an automatic loading and unloading system, and a production line operation and monitoring system

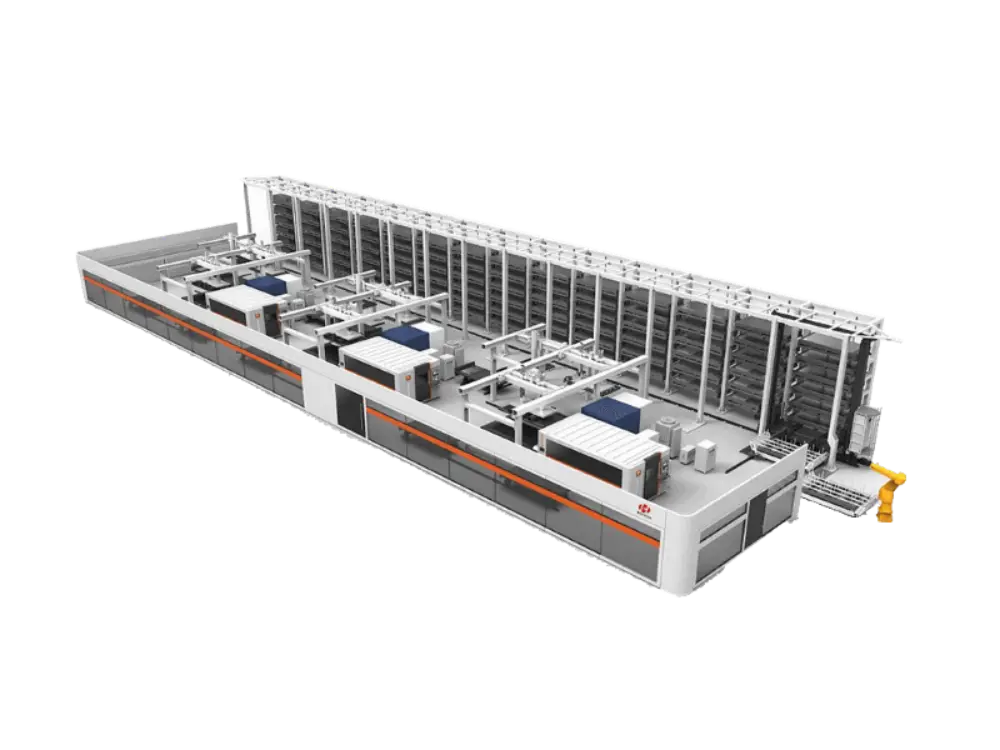

FARLEY LASERLAB AUTO: Intelligent Factory Solution
Intelligent Factory Solution (multiple units) LCL Series
The laser cutting flexible production line includes multiple sets of laser cutting automation warehouses. Each set of laser cutting automation warehouses consists of a warehouse system, an automatic loading and unloading system, and a production line operation and monitoring system, which can be adapted to 1-3 laser cutting machine tools. Among them, the automated material warehouse can automatically store and take out materials without direct manual intervention.
Intelligent Factory Solution LCL Series
FARLEY LASERLAB laser cutting flexible production line is equipped with intelligent automated material warehouses, supporting unmanned material storage, loading/unloading, cutting, marking and sorting, with modular design and MES system connectivity.
Features:
Automated laser cutting material warehouses
Unmanned automatic material storage and retrieval
Supports laser cutting, marking and full material handling
One warehouse adapts to 1–3 laser cutting machine tools
Modular design and intelligent centralized control
Compatible with MES system network management
Intelligent Factory Solution LCL Series – Technical Specifications
The laser flexible manufacturing system realizes the functions of automatic loading and unloading, automatic processing and automatic storage of materials through the integration of material warehouse and laser loading and unloading. It can meet the automatic and flexible production of customers’ multi-variety plates.
It can realize the precise positioning of steel plates, automatic transshipment, automatic loading and unloading, automatic cutting and automatic sorting. The whole system can realize data interaction, beat unification, size matching and control integration. The whole system has the ability of “non-stop” continuous operation.
It can realize the precise positioning of steel plates, automatic transshipment, automatic loading and unloading, automatic cutting and automatic sorting. The whole system can realize data interaction, beat unification, size matching and control integration. The whole system has the ability of “non-stop” continuous operation.
| Model | LCL series | |
|---|---|---|
| Structural form | Single-row/double-row lane-type three-dimensional material warehouse | |
| Applicable materials | Carbon steel, stainless steel, aluminum alloy | |
| The maximum size of the processing plate | 3000x1500mm | 4000 x 2000 mm |
| The largest storage space | More than 18 (customized by customers) | |
| Processing plate thickness | ≤25mm | ≤16mm |
| Handle the weight of the plate | ≤1000kg | ≤1000kg |
| The maximum load of each layer | three T | |
| Maximum net loading height (carbon steel) | 90 millimeters | 50 millimeters |
| The stacking height of finished products | 90 millimeters | 50 millimeters |
| Manual loading and unloading method | Workshop crane or forklift | |
| Standard cycle time | 130s | |
| The speed of the stacker is increased | 15m/min | |
| Horizontal movement speed of the stacker | 50m/min | |
| The speed of pallet entry and exit | 10m/min | |
| Horizontal speed of loading and unloading system | 40 meters/min | |
| Vertical speed of loading and unloading system | 20 meters/min | |
| Operation method | Mobile terminal/touch screen/central control automatic operation | |
| Compressed air | 0.5-0.7Mpa | |
Extended Functions

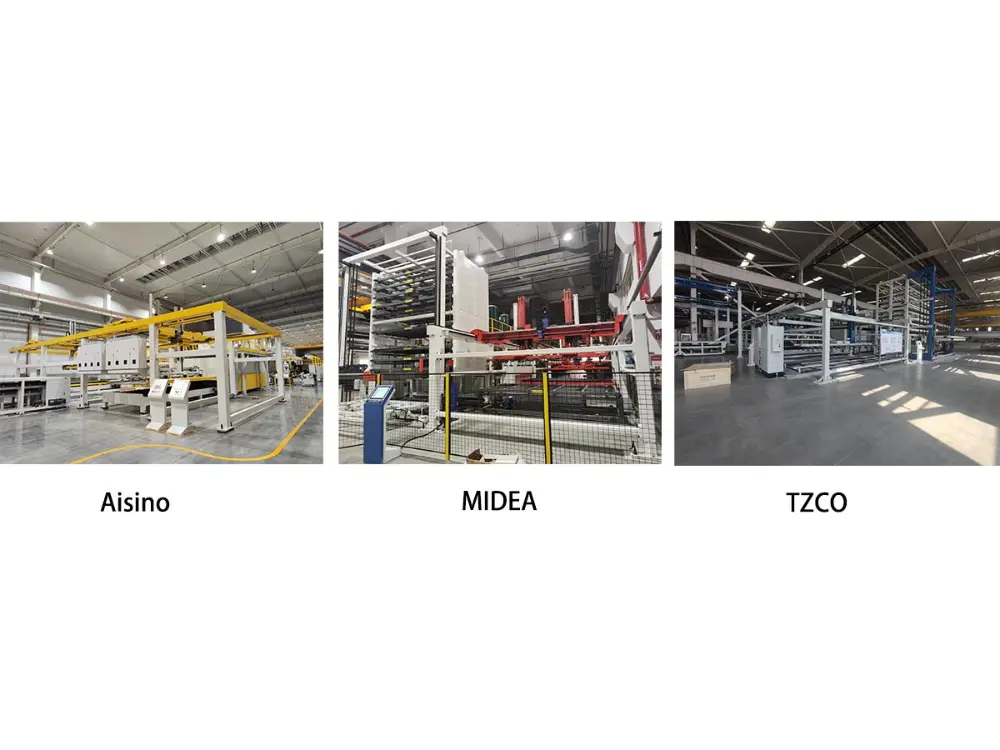

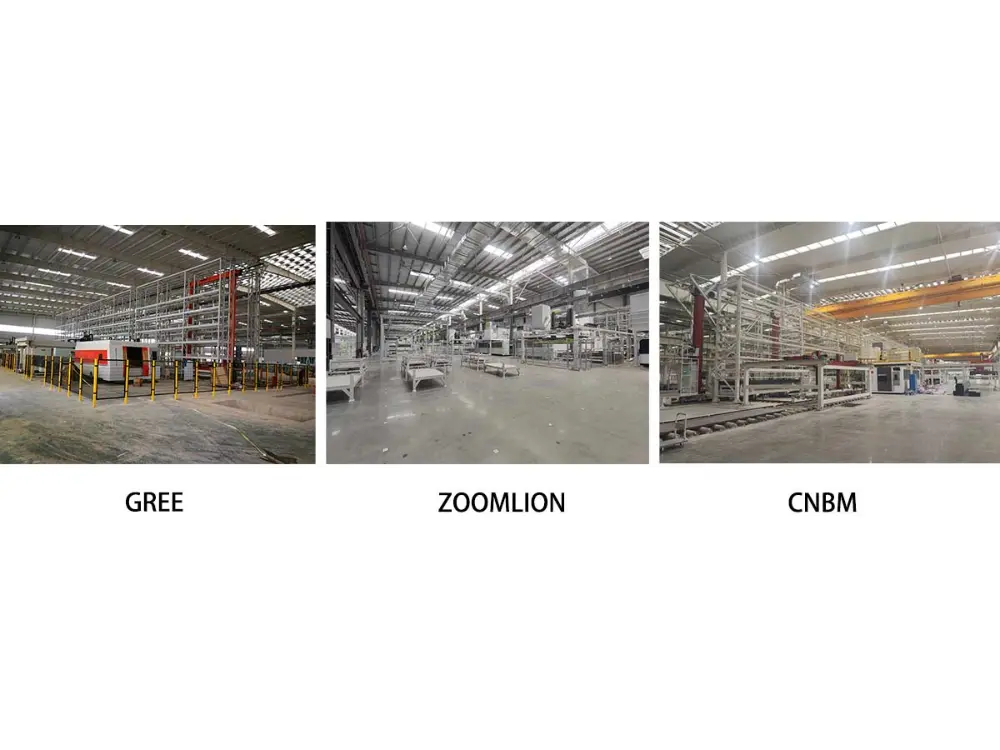

Case Study
