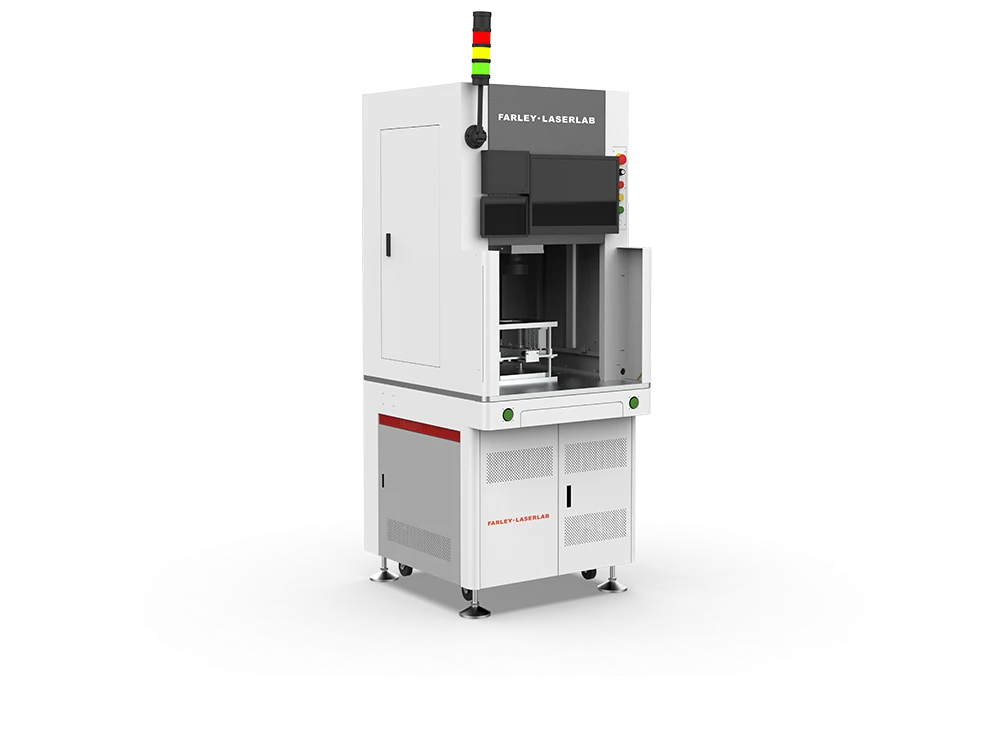

Fiber Transmitting Laser Welding Machine LWY-C Series
The optical fiber transmitting laser welding machine is composed of welding main body and welding bench. The series welding machines are made available in various benches to meet the requirements of different customers. With first-class “energy feedback technology”, the optical fiber transmitting laser welding machine can control laser output power fluctuation within 3% and ensure stability of laser output power
FARLEY LASERLAB AUTO: Fiber Laser Welding Machine
Fiber Transmitting Laser Welding Machine LWY-C Series
The optical fiber transmitting laser welding machine is composed of welding main body and welding bench. The series welding machines are made available in various benches to meet the requirements of different customers. With first-class “energy feedback technology”, the optical fiber transmitting laser welding machine can control laser output power fluctuation within 3% and ensure stability of laser output power, so as to improve welding repeatability, reduce unqualified products and save the costs for enterprises.
Fiber Transmitting Laser Welding Machine LWY-C Series
The optical fiber transmitting laser welding machine combines a welding main body with various interchangeable benches, featuring first-class energy feedback technology that limits laser power fluctuation to 3% for stable, repeatable results. It enables high-speed multi-beam welding with 10:1 depth-to-width ratio, works with refractory materials without special environments, supports customization and serves optical communication, medical, electronics and other industries.
Features:
Customizable & Widely Applicable
Superior Weld Quality
Broad Material & Environment Adaptability
High-Speed Multi-Beam Welding
Versatile Bench Configurations
Precision Energy Feedback Control
Fiber Laser Welding Machine – Technical Specifications
It is widely used in optical communication devices, IT, medical treatments, electronics, batteries, fiber coupled components, CRT monitor electron guns, metal parts, cell phone motors, clock precision parts, automobile lamps, etc.
| Parameter | LWY50C | LWY150C | LWY300C |
|---|---|---|---|
| Average Output Power | 50W | 150W | 300W |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Max Single Pulse Energy | 50J | 60J | 80J |
| Pulse Width | 0.1ms-15ms (continuously adjustable) | 0.1ms-15ms (continuously adjustable) | 0.1ms-15ms (continuously adjustable) |
| Pulse Frequency | 1Hz-100Hz (continuously adjustable) | 1Hz-100Hz (continuously adjustable) | 1Hz-100Hz (continuously adjustable) |
| Welding Depth | 0.05-1mm (depending on the materials) | 0.05-1mm (depending on the materials) | 0.05-1mm (depending on the materials) |
| Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Precision Power Control with Energy Feedback Technology
Equipped with first-class energy feedback technology, the fiber laser welding machine controls laser output power fluctuation within 3%, ensuring highly stable performance. This greatly improves welding repeatability, reduces defective products, and effectively lowers production costs for enterprises.
Multi-Beam Processing for High Efficiency
Supports simultaneous multi-beam processing, which significantly boosts welding speed. It enables customers to complete high-quality processing orders efficiently in minimal time, greatly enhancing production throughput.
High-Quality Weld Seams with Minimal Post-Processing
Achieves a welding depth-to-width ratio of up to 10:1, with smooth, flat, and pore-free weld spots. The clean welds often require no post-weld treatment or only simple finishing, reducing workers’ labor intensity and streamlining workflows.
Multi-Beam Processing for High Efficiency
Supports simultaneous multi-beam processing, which significantly boosts welding speed. It enables customers to complete high-quality processing orders efficiently in minimal time, greatly enhancing production throughput.
