New Energy Battery Tray Laser Welding JR Tray Series

Description

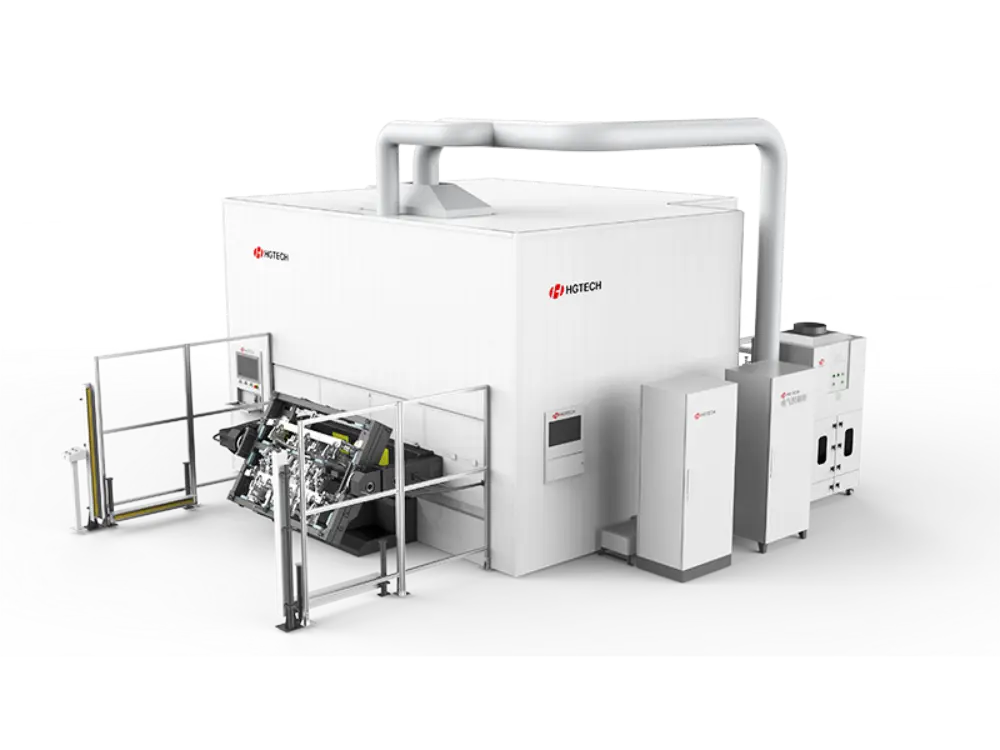

FARLEY LASERLAB AUTO: Battery Tray Laser Welding Machine

New Energy Battery Tray Laser Welding JR Tray Series

The product integrates various new unit technologies currently developed, such as visual positioning systems, weld seam tracking systems, robot systems, intelligent control systems, intelligent production management systems, etc., especially for long welds, uninterrupted welding, and high sealing requirements of new energy battery boxes. Equipped with a weld seam tracking system, the welding yield can reach over 99%.

Battery Tray Laser Welding Machine JR Tray Series

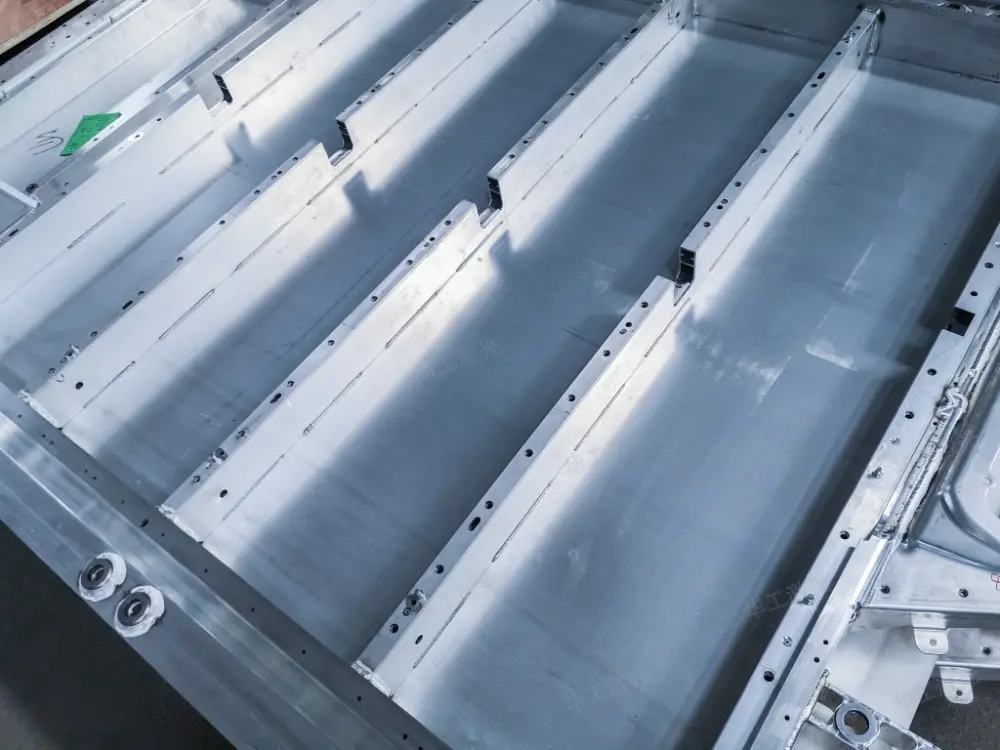

This intelligent laser welding station is dedicated to new energy vehicle battery trays. It adopts a 6-axis robot and rotary positioning station, supports multiple welding processes, and uses Siemens control. With vision and seam tracking technology, it can run independently or connect to production lines, achieving high sealing and over 99% welding yield.

Features:

High-precision 6-axis robot and rotary positioning station

Equipped with Siemens control system

Flexible single/double-layer workstation layout

Supports multiple laser welding processes

Standalone and production line integrated available

Visual positioning & seam tracking, yield over 99%

Battery Tray Laser Welding Machine – Technical Specifications

Model	Model JR Tray Series
Work Range	Work Range 2000mm×1400mm (expandable)
Robot	Brand: ABB, FANUC, YASKAWA, KUKA
Fiber Laser Source	Power: 1KW to 6KW
Flexible Control System	PLC control, multifunctional and humanized HMI interface
Multi-Station Structure	Double-station 3-axis Positioner form, flexible multi-pose welding for complex workpiece welding seam
Welding Head	In addition to the common Welding Head, it can be equipped with Wobble Welding Head, Wire Filling Welding

Precision Welding Performance

High-precision 6-axis robot and rotary positioning station support multiple laser welding processes including wire filling, brazing, scanning and wobble welding. Adopts Siemens control system, with visual positioning and seam tracking ensuring welding yield over 99%.

The control system adopt SIEMENS Controller.

This equipment could work independently as single station, also it could be integrated into the automatic production line for battery tray parts.

Flexible & Scalable Layout

Supports standalone operation or integration into automatic production lines. Workstation can be arranged in single-layer or double-layer layout to adapt to different workshop space, ideal for new energy vehicle and auto parts manufacturing.

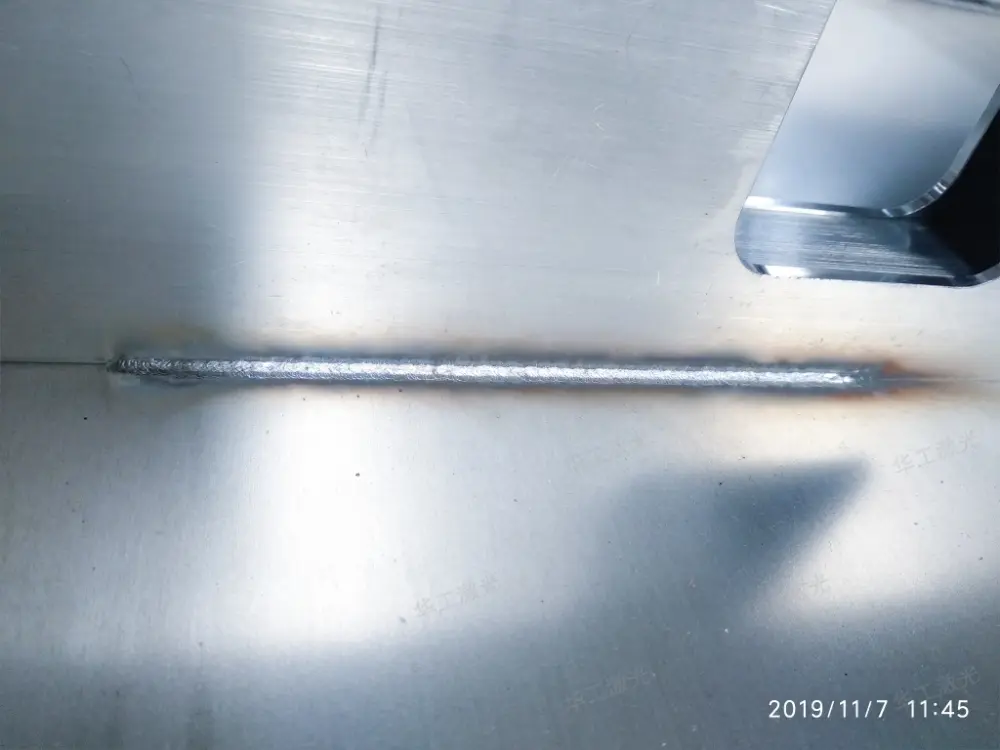

Working with different style laser welding head, this equipment could realize wire laser welding, Laser Brazing, Laser scanning welding, as well as wobble laser welding.

The workstation can be arranged into one or two doors according to the space of workshop
