In-Car Central Control Screens Ultra Large Format Automated Glass Laser Cutting Line LightBlade X5 PRO
FARLEY LASERLAB In-Car Central Control Screens Ultra Large Format Automated Glass Laser Cutting Line is designed for cutting large, irregularly shaped glass panels used in vehicle displays and interiors. lt addresses the challenges of small-batch, multi-variety
FARLEY LASERLAB AUTO: Large Format Glass Cutting Line
In-Car Central Control Screens Ultra Large Format Automated Glass Laser Cutting Line LightBlade X5 PRO
FARLEY LASERLAB In-Car Central Control Screens Ultra Large Format Automated Glass Laser Cutting Line is designed for cutting large, irregularly shaped glass panels used in vehicle displays and interiors. lt addresses the challenges of small-batch, multi-variety, and multi-cycle processing in the automotive glass industry, driving industry transformation and upgrading.

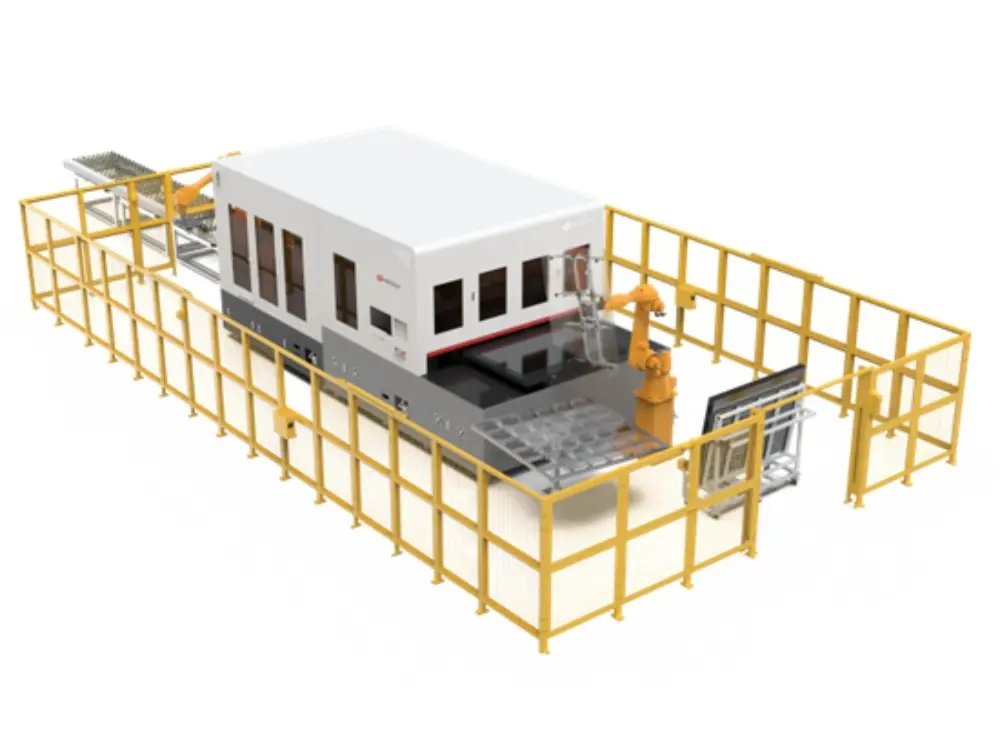

Large Format Glass Cutting Line LightBlade X5 PRO
FARLEY LASERLAB ultra-large format automated laser cutting line is dedicated to automotive central control glass. It supports 1.9m×1.5m large-size glass with high speed, ±0.02mm precision, one-pass thick glass cutting, damage-free processing and six-axis robot intelligent unloading.
Features:
For automotive in-car central control & interior large glass
±0.02mm high precision, >500mm/s cutting speed
One-pass cutting for 17mm thick glass
Supports ultra-large glass up to 1.9m×1.5m
Damage-free & six-axis robot automatic sorting
70W ultrafast laser, 3× faster cutting
In-Car Central Control Screens Ultra Automated Glass Laser Cutting Line – Technical Specifications
| Laser parameters | Cutting position | Infrared pisecond laser 70W |
|---|---|---|
| Slit workstat | CO2 laser 200W | |
| Processing performance | Maximum compatible cutting masterpiece size | 1900mm*1500mm |
| Typical processing materials | High aluminum glass/sodium calcium glass | |
| Processing thickness | 0.3mm to 4mm | |
| Collapse control | ||
| Maximum processing speed | 500mm/s | |
| Processing size accuracy | ±0.02mm | |
| Use environment | Power supply specifications | 380V/60KW |
| Environmental requirements | Temperature 21-23℃, humidity 50%±5% |
Equipment Features：
1. Large Format: lntegrated marble platform and dual-station technology, supports glass up to 1.9m x 1.5m.
2. High Speed and Precision:Travel range of 4,2m x 2.2m,1G acceleration, >500mm/s speed, and precision under +-0.02mm.
3. HigherPower: 70W ultrafast laser,3 x faster cutting, handles glass upto 17 mm thickness inone pass.
4. Damage-Free Cutting: Cuts 4mm flat glass with minimal chipping (<50um).
5. Intellilgent Sorting: Fully automated, no hardware changes needed, six-axis robotic unloading,
customizable gripping tools.
Samples Display
Related products

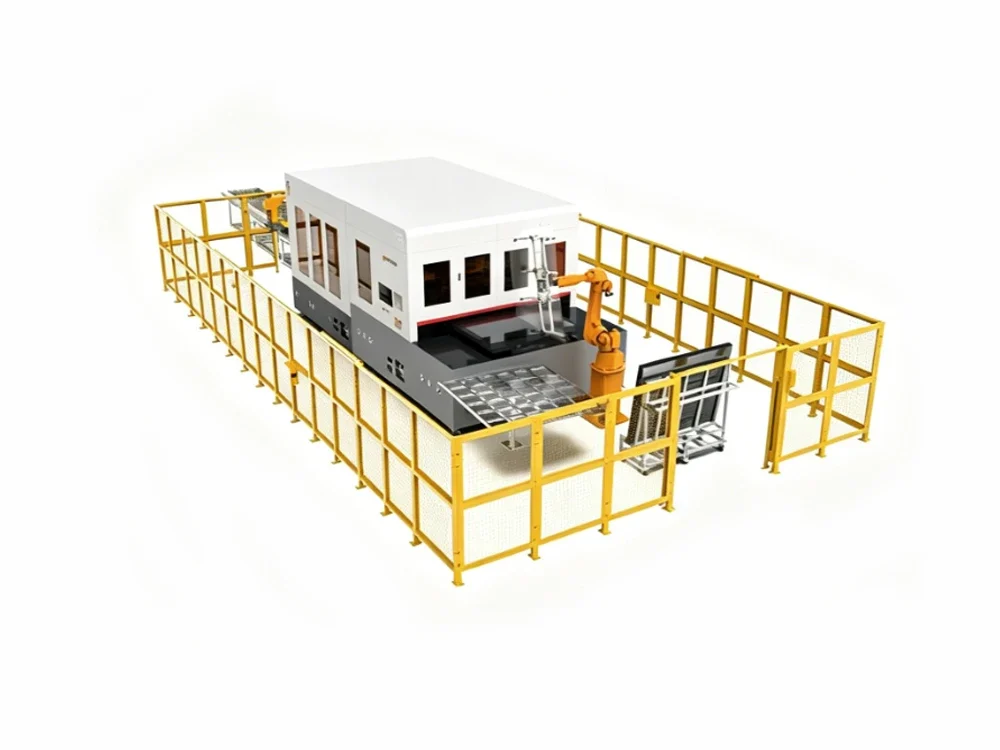

LightBlade Series Medium Format Glass Laser Cutting Intelligent Equipment equipped with an infrared picosecond laser, this system utilizes picosecond filament cutting and CO2 scribing technology to achieve fully automated cutting and scribing in one process. lt offers high speed
